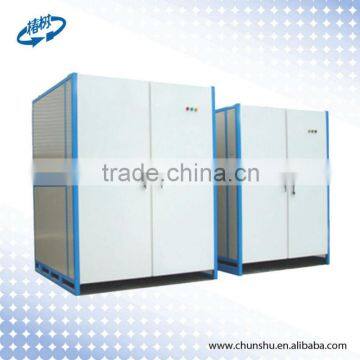

Help Center8000A 24 30V AC+DC or AC Coloring Power Supply for Aluminum Profile
Related Products
Provided by 53 years long professional rectifier manufacturer, with 94 engineers, rich experience
1. Technical Parameters
u Input Voltage: AC 3P-380V ± 10%
u Output Voltage: AC 0 ~ 30V, DC 0 ~ 30V
u Output Current: DC 4000A, AC 8000A
u Output Waveform: DC, AC Symmetrical sinewave or AC Asymmetrical sinewave
u Coloring effect: suitable for coloring such as stainless steel color, champagne color etc. light color, deep color such as deep bronze color, pearl black color. and titanium gold color, golden brown color etc. gold color.
u Cooling method: Forced air cooling
u Dimensions of the power supply: about 1350mm(W)×1500mm(D)×1900mm(H)
u Net weight of the power supply: 1350Kg. Package weight: 1360Kg
u Voltage control: Thyristor
u Firing method: control board supplies firing signal to fire the thyristors
u Control system:
lThe main control board is through long time continuous working and heat aging testing
lUse Japan's Mitsubishi PLC and 7-inch color touch screen.
lFully digital control
lCould set 20 different colors
lHave high precision automatic voltage constant, soft-start functions.
lPreimpregnation time, DC time, coloring time, color compensation time could be adjusted independently, each process time could be adjusted.
lWhen the coloring time is up, it will alarm with sound and light.
lAutomatic working mode.
lEquipped with remote central control box.
u Cabinet: Constructed with square steel tube, covered in powder finishing.
u Touch screen control
Touch screen: 7 inch color touch screen. PLC: Mitsubishi PLC
The main control screen of AC+DC Coloring Power Supply
(20 colors optional, three kinds of waveform output, including DC, symmetrical AC sine wave and asymmetrical AC sine wave)
u Input Voltage: AC 3P-380V ± 10%
u Output Voltage: AC 0 ~ 30V, DC 0 ~ 30V
u Output Current: DC 4000A, AC 8000A
u Output Waveform: DC, AC Symmetrical sinewave or AC Asymmetrical sinewave
u Coloring effect: suitable for coloring such as stainless steel color, champagne color etc. light color, deep color such as deep bronze color, pearl black color. and titanium gold color, golden brown color etc. gold color.
u Cooling method: Forced air cooling
u Dimensions of the power supply: about 1350mm(W)×1500mm(D)×1900mm(H)
u Net weight of the power supply: 1350Kg. Package weight: 1360Kg
u Voltage control: Thyristor
u Firing method: control board supplies firing signal to fire the thyristors
u Control system:
lThe main control board is through long time continuous working and heat aging testing
lUse Japan's Mitsubishi PLC and 7-inch color touch screen.
lFully digital control
lCould set 20 different colors
lHave high precision automatic voltage constant, soft-start functions.
lPreimpregnation time, DC time, coloring time, color compensation time could be adjusted independently, each process time could be adjusted.
lWhen the coloring time is up, it will alarm with sound and light.
lAutomatic working mode.
lEquipped with remote central control box.
u Cabinet: Constructed with square steel tube, covered in powder finishing.
u Touch screen control
Touch screen: 7 inch color touch screen. PLC: Mitsubishi PLC
The main control screen of AC+DC Coloring Power Supply
(20 colors optional, three kinds of waveform output, including DC, symmetrical AC sine wave and asymmetrical AC sine wave)
2. Touch screen display
3. Certificates
- ISO9001:2008 International Quality Management Certificate
- Chinese Militarty Quality Standard Certificate
- Onsite verification by SGS
- Trustable Company Certificate in Power Supply Society
- Patents
4. After sale service
- 24 months gurante period
- Life long technical support
- Respond within 24 hours in case of problem

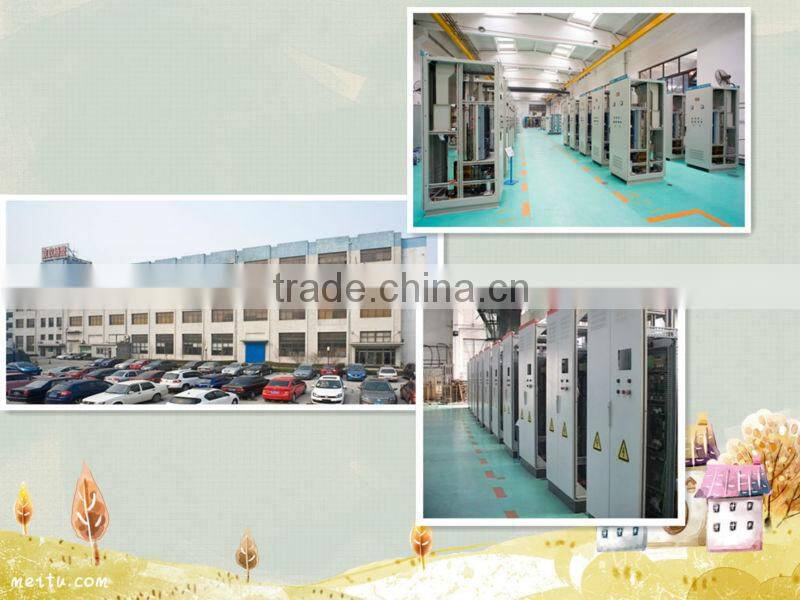

5. Company and Rectifier workshop
