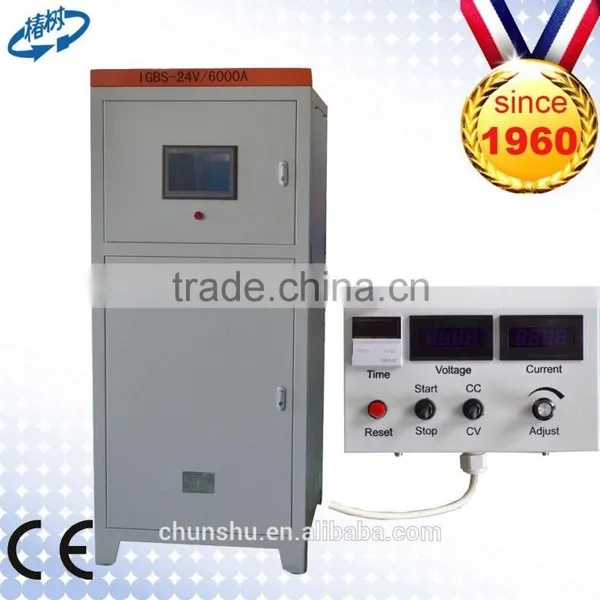

Help Center6000a Anodizing Power Supply for Aluminum 24volts With 20% Energy Saving From Rectifier Manufacturer With 54 Years History
Related Products
-
3000A 25V AC Power Supply for Coloring AluminumNegotiableMOQ: 1 Unit -
6000a AC Power Supply for Coloring AluminumNegotiableMOQ: 1 Unit
-
3000A 25V AC Power Supply for Coloring AluminumNegotiableMOQ: 1 Unit
-
3000A 25V AC Power Supply for Coloring AluminumNegotiableMOQ: 1 Unit
-
AC Coloring Power Supply 12000A100V Energy Saving High Quality High Stability With DSP ControlUS$ 0.6 - 1.8MOQ: 1 Unit
Specifications
1. rectifier manufacturer with almost 53 years experience2. Supplier of Germany customer, meet CE standard
Almost 54 years history rectifier manufacturer
100% stated owned company in capital of China
Supply high reliability rectifier to 27 countrys
1. Application:
Color anodizing or anodizing aluminum
Used for Anodizing on aluminum door windows section
We have ability to produce rectifier as customer's required with rich experience and strong technical teams
2. Detailed display

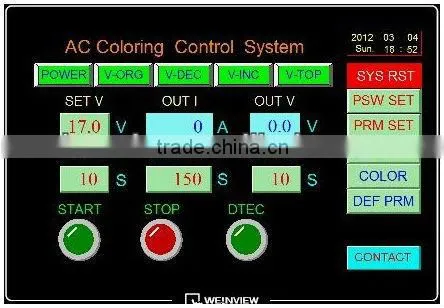

2.1 The main control screen for AC Coloring Power Supply
Note:
On the main control screen, you can use manual to set up output voltage (press “SET V”), presoak time (press “PRE T”), color time (press “WORK T”) and added color time (press “DTEC T”, this time can be set when you need to add the color).
Only when the “V-ORG” turns red, you can press “START” button to start the machine.
When the output voltage of the machine rising (“V-DEC”) or lowering (“V-INC”), the corresponding indicator light will be turn rad. When the (“V-TOP”) is flashing, the voltage regulator has outputted maximal voltage and stop to rising.
When you select “AUTO”, if you want to use last parameter again, you only need to click “DEF PRM” button or “START” button, the PLC will sent the last parameter again to use for you, that is very convenient.

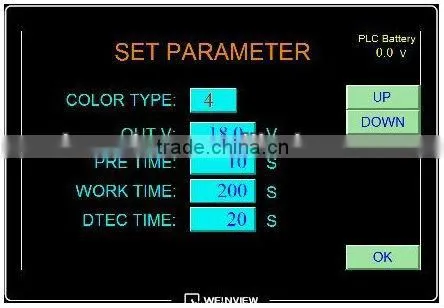

2.2 The [SET PARAMETER] screen for AC Coloring Power Supply
Note:
Press the "PRM SET" button on the main control picture, it will require to input the password, you can enter the following [SET PARAMETER] screen only when you input the correct password, in the [SET PARAMETER] screen, you can according to the technical requirement (press “UP” or “DOWN” to input the different parameter) separately to set up output voltage (press “SET V”), presoak time (press “PRE T”), color time (press “WORK T”) and added color time (press “DTEC T”) parameters for 20 colors at most, press “BACK” to save the parameters and back to the main control screen.
Attention please, these parameters only use for reference!
2.3 The [COLOR SELECT] screen for AC Coloring Power
Note:
Press the "COLOR" button on the main control screen, you can directly entre the following [COLOR SELECT] screen, in this screen, you can according to the technical requirement press "UP" or “DOWN” button to select needed color number or parameter, and then press "OK" button to back the main control screen. On the main control screen, press "START" button, the machine will be start by this parameter.
Attention please, because the shape of aluminum is not same, if you want to get the same color of every shape of aluminum, please press “DEF PRM” button on the main control screen to get the technical requirement of this color, and then according to experience, adjust properly the “AC T” or “AC V” with manual.
2.4 The [SET PASSWORD] screen for AC Coloring Power Supply
Note:
Press the "PSW SET" button on the main control picture, it will require to input the password, you can enter the following [SET PASSWORD] screen only when you input the correct password, in the [SET PASSWORD] screen, you can set up separately password for entre [SET PARAMETER] screen and [SET PASSWORD] screen, press "BACK" button to return to main control screen after finish setting the password.
3. Our advantages
3.1 Energy saving10-20%, efficiency higher than 90%, cheaper by 10-15 percent in actual power consumption due to low conversion loss. Power saved is power earned.
3.2 Small size: IGBT Power supplies occupy less space occupied by traditional type.
3.3 Weight:IGBT power supplies weigh less than Traditional type.
3.4 High reliability:IGBT rectifier works at FULL rated value 24 hours 365 days without failure. PROVEN High reliability. Cabinets fully sealed to prevent acidic alkaline air and dust and moisture from entering. Redundancy technology for non-stop operation.
3.5 Very long life possible. Good quality components used reasonable design to ensure long lifespan (15-20 years).
3.6 User friendly controls and easy to read digital meters.Touch screen option for more convenience.
3.7 Easy to repair and maintain:touch screen supply fault type alarm, self diagnosis. Modular structure for easy replacement.
4.Quality assurance
4.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions
4.2 Long history proved high reliability and high quality by foreign and domestic applications
4.3 ISO9001:2008 international quality standard, military standard quality control
4.4 Strong technical ability ensures reasonable, professional and safe design
4.5 Good quality components are used

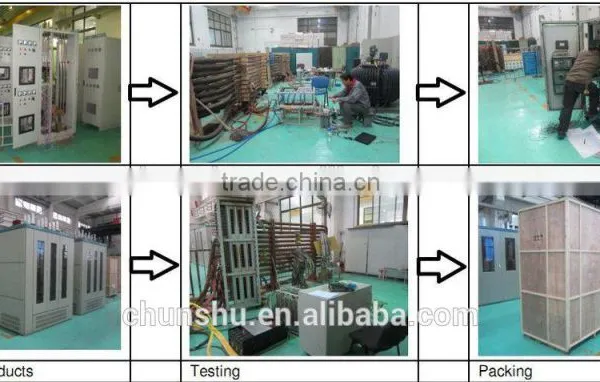

4.6 Full load testing before shipment
4.7 Successfully used for sapphire, silicon industries which require strict quality
4.8 Military application proved high reliability
4.9 Complete protections
4.10 Meet CE requirement and supplied to Germany customer
4.11 We passed CGS onsite verification on 31st, January, and CGS is a Switzerland company.
5. Our technical ability
5.1. We have 94 engineers, with 5 doctor degree, about 70 master degree.
5.2. We have our own Beijng Municipal Technical Center which is authorized by Beijng Municipal Government
5.3. We have 1 post doctoral program station.
5.4. We have 1 innovation studio.
5.5. We have 1 Joint Institute with Beijing Jiaotong University
5.6. We have 1 PV Power Electronics application experiment basis
5.7. We have 1 PV equipment engineering and technical research center
5.8. We were authorized many patents, software copyrights.
5.9. We were granted many Science and Technology Award.

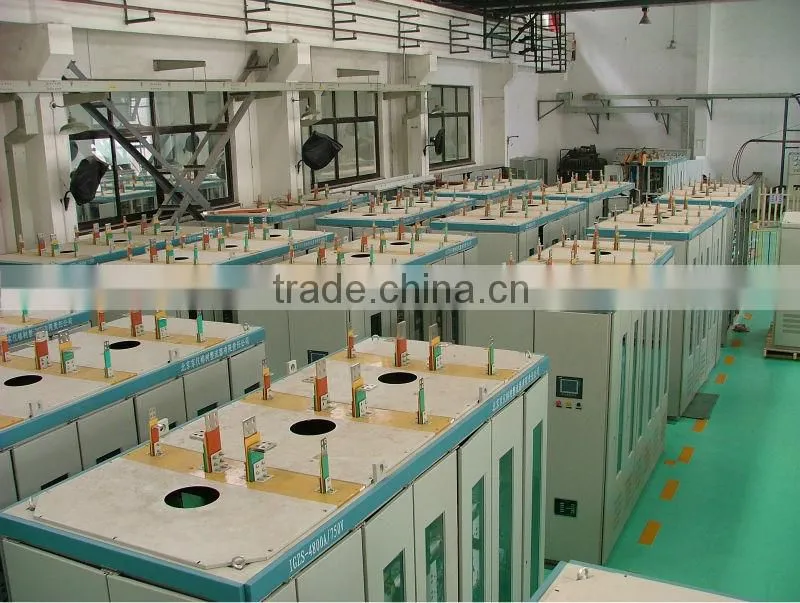

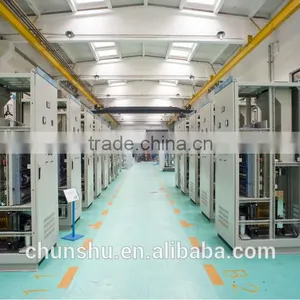

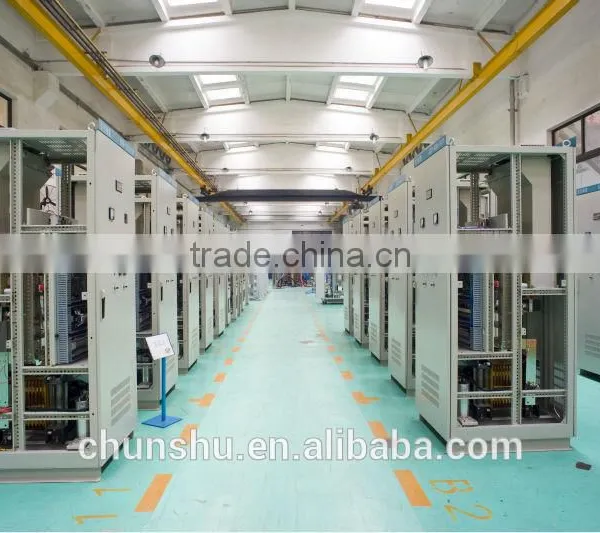

6. Our pictures
