Salt licking stone with iodine hydraulic powder forming machine
- 20 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
- Pressing Ball Machine(86-15978436639)
- Charcoal Powder Press Ball Machine(0086-15978436639)
- Ball Pressing Maker Machine(86-15978436639)
- How Do You Make Charcoal Balls(0086-15978436639)
- Briquetting Plant Cost(86-15978436639)
- Production of Briquttes Briquetting Machine with a Capacity of 2t/h(86-15978436639)
Product Description

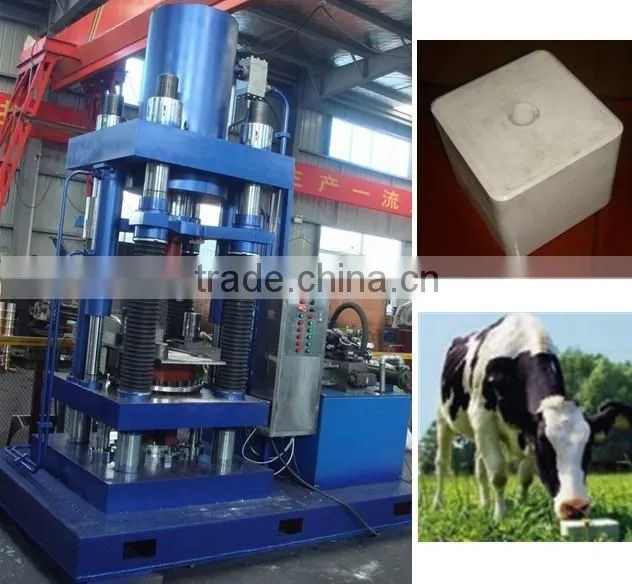

SYSTseries Hydraulic machine is our factory newly developed automatic tablet press machine,which can compress granular, powder-like material into a variety of general and special-shaped pieces. It is suitable for large-scale repression of products which require high-density, while a multi-chip module can be used for large-scale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic. Can be properly adjusted to suppress the time, pressure, product thickness.
Model | SYST-200 | SYST-300 | SYST-500 |
Working pressure | 200T | 300T | 500T |
Ascending stroke | 220mm | 230mm | 250mm |
Filling height | 250mm | 250mm | 280mm |
Diameter of the Below mould | 350mm | 350mm | 350mm |
Max block diameter | 260mm | 260mm | 260mm |
Block weights | 1-3kg/pcs | 1-5kg/pcs | 2-10kg/pcs |
Motor power | 15kw | 18kw | 22kw |
Machine Dimension | 2.3*1.6*3.2M | 3.5*2.2*3.6M | 3.6*2.2*3.8M |
Machine Weight | 4500kg | 6500kg | 12000kg |
Packed in Export standard wooden case
Delivery time:
Under 200t(including 200t):within 40 working days
Above 200t:within 60 working days
All machines would be strictly checked and tested before leaving factory
With the advantages of superior performance,easy operation,cost saving,SYST series hydraulic tablet press machine can produce customized products with high precision.Finished products have been exported to UK, Algeria,Brazil,Egypt, India, Thailand, Saudi Arabia, Russia, Spain, Pakistan, Turkey, Lebanon,USA, South Korea, Sudan, Argentina and so on.
Processing Flow
Pre-sale Service
We provide professional consultation about each type of machine,and offer free material testing service to help customers purchase suitable machine.Customers are also welcomed to visit and evaluate our factory.
After-sale Service
After customers received tablet press machine, we will arrange our technician go to your factory to help you instal and debug the machine,also provide technical training for your workers.
The warranty for this machine will be one year, we will provide vulnerable parts and door-to-door service by free within one year.
Changzhou Jingfeng Packing Technology Co., Ltd. was established in 1986, two decades has been engaged in a variety of powder forming tablet machine R & D and manufacture of products with good quality and excellent after-sales service won the pre-sale home and abroad customers. The company has a strong technical force in the design and development team, engaged in equipment manufacturing, as well as supporting mold processing. Company's existing products to a single impulse-type tablet machine, hydraulic pressure tablets, pressing machine-based. Equipment, convenient operation, high stability, automated production machines can be realized more than one person, one-mode multi-pressure mode of operation, greatly improving the efficiency of production. Ceramic powder is widely used in dry-pressed, powder metallurgy, magnetic materials, chemical powder molding, electronics, pharmaceuticals and other industries, the real meaning to meet the different needs of customers. The company adhere to a sincere attitude, customer-oriented, quality and service first, enthusiastically looking forward to new and old customers at home and abroad to guide co-operation.
Contact Information
- Delivery date
We will arrange the production and shipment as soon as we received the deposit,and update the information with customers timely.Generally,the delivery time will not exceed 60 working days.
- Terms of payment
Normally,when th order value is below US$10,000,we can accept the payment by T/T or Western Union or Cash.For T/T,the customer can choose 100% in advance or 30% in advance,and pay the 70% balance before shipment.
- After -sale service
For most of the machines,the warranty will be one year since the date of shipment,we supply the on-line service for all the customers,and also supply the spare parts all the time with cost price,for some complicate machine or part,we can send our technicians overseas to help debug too.
- How do you guarantee I can receive ordered goods after payment?
We are a legally established company supervised by the government,and is registered in customs of China and China Chamber of International Commerce.Besides,we are the member of Alibaba and has been checked by the third part as the real and legal company,So,please rest assured.What is more,honesty and trustworthiness is our basic principle and company motor.
- How to make an order?
Step 1.Please tell us your material characteristic and the diameter&height you require
Step 2.Then we will make a solution for you to confirm the order details
Step 3.You can send us some material to test,or you can visit our factory
Step 4.Finally,make a deal and we will deliver the goods with the stipulated time
