Vertical mast lifts uses high strength aluminum section bar to produced. Featured by it’s beautiful appearance, small volume, light self-weight, good stability, and flexible operation. The mast lift has one, two, three or four masts according to the different heights.
200kg mast lift mainly composed by aluminum mast, work platform, basement, control system, wheels and supporting legs. The main featured parts are showing in the below.
1. easy to operation up/down on platform and ground
2. double chains improving the safety and make the strong
3. outrigger guarantee stability of machine when work, no use before open outrigger.
4. Hydraulic pump is the first brand in China.
5. Emergency descend valve platform lowered when power interruption
Parts Introduction
|

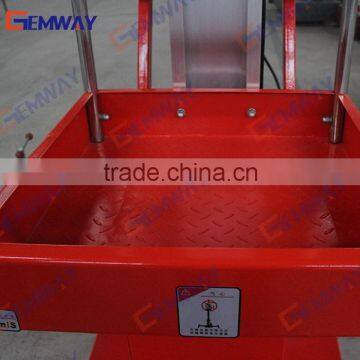

1. Anti-ski platform: To protect materials from falling. 2. Safety trip bar: It located directly underneath the platform to prevent injury from use. 3. Hydraulic cylinder: High precision wear-resisting hydro-cylinder with locking device for fall protection. 4. Scissor structure: High-strength Manganese steel. 5. Control box: The "UP", "DOWN" and "EMERGENCY STOP" buttons are extremely easy to use on each floor. 6. Pump station: Provide a certain pressure and flow of hydraulic oil. 7. Lifting hook: It’s easier for crane to put it into the pit.
|

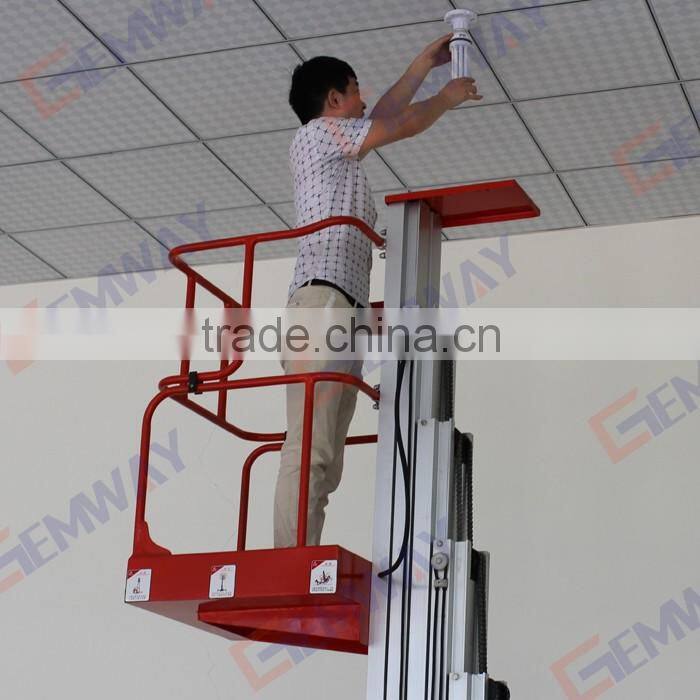

Vertical mast lifts for saleis easy to operate and suitable for one man or two man operation. Mainly works for maintenance, installation, electric wiring etc. The narrow design make sure it can go in and out the buildings easily. Such as offices, hotels, shopping malls, workshops and other public places.
Models List
Model |
Lifting height(m) |
Platform size(mm) |
Capacity(kg) |
VAL0.1-3 |
3 |
600*600 |
100 |
VAL0.1-4 |
4 |
600*600 |
100 |
VAL0.1-6 |
6 |
600*600 |
100 |
VAL0.1-8 |
8 |
600*600 |
100 |
VAL0.1-10 |
10 |
600*600 |
100 |
VAL0.2-6 |
6 |
1300*600 |
200 |
VAL0.2-8 |
8 |
1450*600 |
200 |
VAL0.2-10 |
10 |
1450*600 |
200 |
VAL0.2-12 |
12 |
1650*600 |
200 |
VAL0.2-14 |
14 |
1650*650 |
200 |
VAL0.2-16 |
16 |
1650*800 |
200 |
VAL0.2-18 |
18 |
1400*1000 |
200 |
VAL0.2-20 |
20 |
1500*1100 |
200 |
|
SHANDONG GEM MACHINERY CO., LTD factory was founded in the year 1999 and started the production of scissor lifts, cargo lifts, dock ramp and so on. After years development, GEMWAY has manufactured many new lifts such as towable boom lift, wheelchair lift, electric scissor lift and so on. All the products are manufactured under the standard of CE certification. |
|
Each month, GEM machinery is visited by many customers from different countries. They coming for test our lifts, plants, designs and place the order in the office after negotiation. Welcome you to come and test GEMWAY lifts in person. |
