CE certification stationary hydraulic scissor lift car platform price
The part of scissor lift table(scissor structure , platform,beams,post etc. ) are made by advanced
CNC machine,which error will be less than three-thousandths of a millimre. Please contact us
and get more information.
Scissor lift car is used to convey the material or goods from ground to upper floors, it can installed in
the pit, do not occupy space. In addition, for this scissor lift platform, many customers use it in production
line or docks, so it canbe fixeddirectly on ground floor.
Stationary scissor lift platform contains anti-skid platform, scissor structure and lift base, please see below
for more clear understanding. We will make control panels for each level, if need, also can offer platform
controller for easy control.
Hydraulic scissor lift Parts
1. Platform: The table platform is anti-akid, which can aviode the material falling down.
2. Safety trip bar: The bar is under platform, if the platform touches any items while going down,
it will stop working immediately, which can avoid to do any harm.
3. Hydraulic cylinder: High precision wear-resisting hydro-cylinder with locking device for fall protection.
4. Pin: Make the scissor structurer more stable.
5. Scissor structure: High-strength Manganese steel.
6. Platform control : Easy to control the lift on the platform.

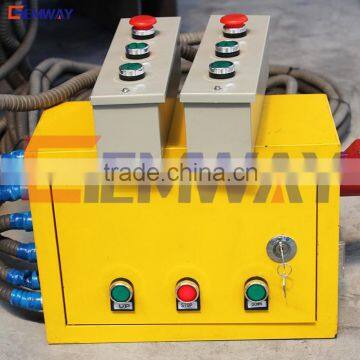

7. Control box: It is with UP, DOWN and E-stop buttons, when there is any emergency, you can press the E-stop down, then the table will stop working.
8. Pump station: Provide a certain pressure and flow of hydraulic oil.
9. Lifting hook: It's easiser for crane to put it into the pit.

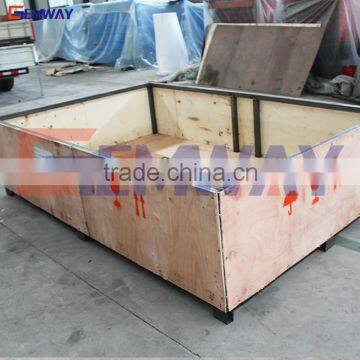

The scissor lift will be firstly packed by films, then packed into steel framed plywood cases.
Scissor lift elevator performs dependably in a variety of demanding storage and logistics applications.
Loading&unloading goods in and out warehouses, lifting up and down between floors freely, which help
customers save much labour and time.
Model |
Load capacity |
Lifting height |
Platform size |
Guide Rail |
SLT1-1.5 |
1000kg |
1500mm |
1500*2000mm |
No |
SLT1-2 |
1000kg |
2000mm |
2000*3000mm |
No |
SLT2-3.5 |
2000kg |
3500mm |
2000*2500mm |
Yes |
SLT3-3.5 |
3000kg |
3500mm |
3000*4000mm |
Yes |
SLT6-2.5 |
6000kg |
2500mm |
1900*35000mm |
Yes |
Hurry up to contact us online for discount USD100!!!!
Hot sale products !!!
Below are some related products in hot sale , and please click the pictures and get more information.
Cargo lift for warehouse Scissor lift platform Scissor car lift
SHANDONG GEM MACHINERY CO., LTD factory was founded in the year 1999 and started the production
of scissor lifts, cargo lifts, dock ramp and so on. After years development, GEMWAY has manufactured
many new lifts such as towable boom lift, wheelchair lift, electric scissor lift and so on. All the products are
manufactured under the standard of CE certification.
Each month, GEM machinery is visited by many customers from different countries. They coming for test
our lifts, plants, designs and place the order in the office after negotiation. Welcome you to come and test
GEMWAY lifts in person.
