Good stability hydraulic trailer scissor lift mobile
Scissor lift mobile is a scissor structure man lift for aerial work which can be towed by man power. The
mechanical structure make the platform stability, wide operating and high loading capacity. Normal trailer scissor lift mobile lifting power is AC power, DC and Diesel power are also available for option.
Specification
Hydraulic scissor lift is easily operated by the control box both on the platform and ground. The supporting legs can guarantee the stability of the lift. More safety for works working on the platform with the guardrail. Besides the AC power, you also can add battery or diesel power for assist walking.
1. Guard rail : To protect people while working at height.
2. Wire connect:Make it easy to connect device.
3. Control box:It located underneath the lift for maintaining control of the machine from the ground.
4. Hydraulic pump:It including safety device.
5. Control handle: On the platform prioritizes safety , giving workers on the platform absolute control of the machine .
The mobile scissor lift will be firstly packed by films, then packed into steel framed plywood cases.
Scissor lift can be used in the factory, warehouse, public places , stations and so on. It provides you a good choice for aerial working.
Model |
Load |
Lifting height |
Platform size |
Overall Dimension
|
MSL4 |
500kg |
4m |
2100*820mm |
2200*950*1100mm |
MSL6 |
500kg |
6m |
2100*820mm |
2200*950*1200mm |
MSL7 |
500kg |
7m |
2100*820mm |
2200*950*1280mmm |
MSL8 |
500kg |
8m |
2100*900mm |
2200*950*1200mm |
MSL9 |
500kg |
9m |
2100*900mm |
2200*1060*1500mm |
MSL10 |
500kg |
10m |
2100*1200mm |
2200*1060*1380mm |
MSL11 |
500kg |
11m |
2100*1200mm |
2200*1400*1700mm |
MSL12 |
500kg |
12m |
2550*1500mm |
2200*1400*1550mm |
MSL14 |
500kg |
14m |
2815*1530mm |
3045*1730*1810mm |
MSL16 |
500kg |
16m |
3070*1600mm |
3250*1800*1920mm |
MSL18 |
500kg |
18m |
3070*1600mm |
3250*1800*2080mm |
Hot sale products!!!
Below are some related products for different lifting solution. Pls click and review more info in needed.

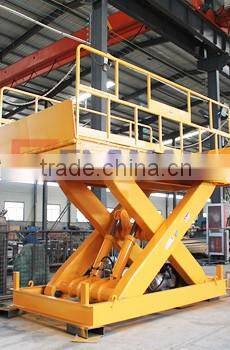

Goods scissor lift table Scissor lift platform Towable boom lift
SHANDONG GEM MACHINERY CO., LTD factory was founded in the year 1999 and started the production of scissor lifts, cargo lifts, dock ramp and so on. After years development, GEMWAY has manufactured many new lifts such as towable boom lift, wheelchair lift, electric scissor lift and so on. All the products are manufactured under the standard of CE certification.
Each month, GEM machinery is visited by many customers from different countries. They coming for test our lifts, plants, designs and place the order in the office after negotiation. Welcome you to come and test GEMWAY lifts in person.
