Specifications
1 work smooth2 low oparation cost
3 easy maintenance
4 fast clearly discharge
5 simple resnoable structure

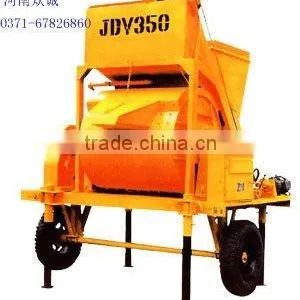

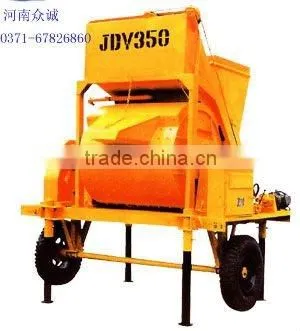

JDY type concrete mixer
Product description:
This series mixer can mix various matching of concrete, sand pulp, Slurry, and apply to all kinds of medium and small-sized buildings. It is the ideal mixing equipment of concrete for user. It not only can use as a single machine, also can use with ingredient machine for a simple concrete mixing plant.
This series of JDY concrete mixer are single horizontal shaft mixer that integrates with mechanical, hydraulic and electrical. The mixing system depends on the cylindrical gear to rotate. It works reliably. The feeding part adopts the lifting electric machine. The discharging part adopts dual-role hydraulic cylinder to mix, thereby make this process fast and clean. The hydraulic system is controlled by the reversing valve, and it is easy to operate. This series of mixer can mix concretes, slurry and mortar with all kinds of mixing proportion.
Main technical parameters:
Type |
JDY350 |
JDY500 |
Discharging volume |
350L |
500L |
Feeding volume |
560L |
800L |
Productivity |
18-21m3/h |
25-30m3/h |
Max aggregates diameter(screen/gravel)mm |
60/40 |
80/60 |
Stirring shaft speed |
28r/min |
24r/min |
Whole power |
15.55kw |
20.75kw |
Mixing time |
305 |
305 |
Overall dimension(L ×W ×H) |
2528×2340×2850mm |
2600×2789×3200 |
Dragging speed |
20km/h |
18km/h |
Total weight |
3700kg |
4000kg |
Note: for information purposes only, any questions please contact us!
