Specifications
1.Popular Sawdust Briquette Presses:2.Automatic electric heating;
3.1-3t/h capacity;
4.45-110kw power consumption;
5.ISO&CE

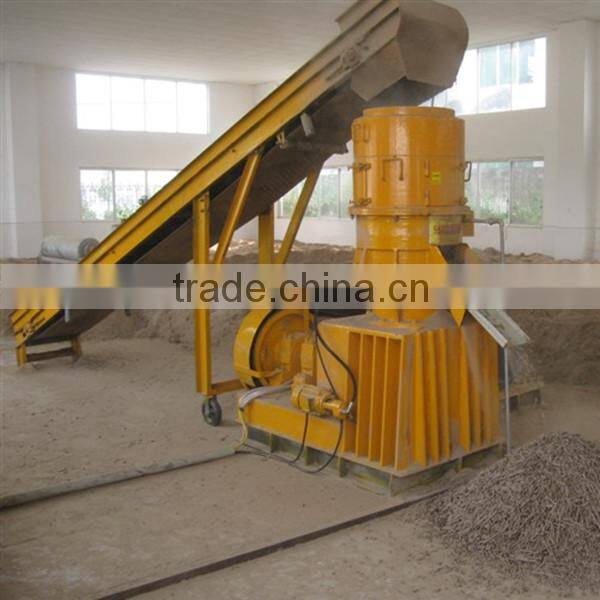

China Leading Technology Sawdust Briquette Presses
Contact: Windy
1. Application Of Sawdust Briquette Presses:
Materials such as rural corn straw, wheat straw, cotton bar, straw, rice husk, peanut shell, cob,
branches, leaves, sawdust and crops, solid waste (edible fungi residue, furfural residue, wine
slag,etc.)can be used as biomass fuel after crushed and pressed by this briquetting machine, thus turning waste into wealth."Straw coal" can replace wood, coal, gas, etc, are widely
used in life range, heating furnace, hot water boiler, industrial boiler, biomass power plant,etc.
2. Performance Characteristics Of Sawdust Briquette Presses:
1. High capacity,low power consumption, energy saving and non-pollution.
2. Strong material adaptability: It is suitable for all kinds of biomass materials briquetting. Material from straw powder to length of 55 mm, moisture content between 5- 30% can
be processing molding.
3.Electrical heating function: Automatic electric heating device can adjust the humidity of materials, can solve the difficulty of no-blocking, no-forming.
4. Pressure wheel automatically adjust function: Using the principle of two-way thrust
bearing rotation automatically adjust the pressure Angle, ensure that the material is molding
stability.
5. Easy operation and convenient usage, high degree of automation and labor saving.
6. Process: crushing--transport--briquetting--finished produce.
7. Process: material recovery-crush-automatic to detach metal--pressing--forming--output--cooling--transport--civil, small boiler, biomass power plant.

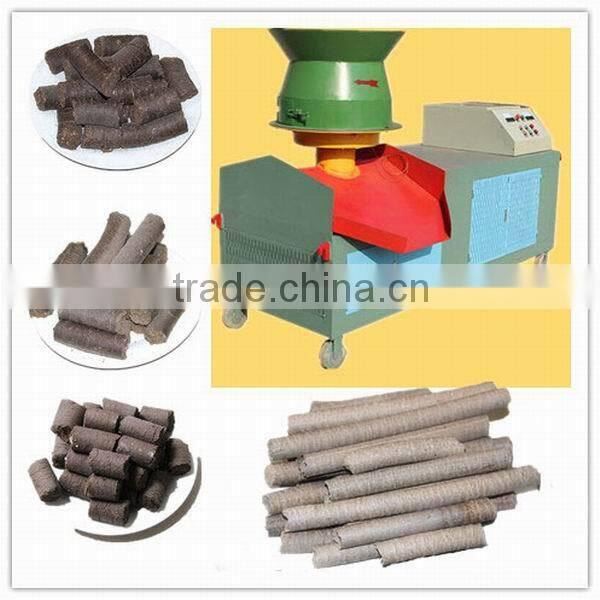

Mold Of Sawdust Briquette Presses
3. Working Principle Of Sawdust Briquette Presses:
Firstly, through rub silking, crushing, make straw or grass length under fifty mm, moisture
content 10~25%, the feeding conveyor will send material to the feed port, through the spindle
rotation, drive the roller move,and roller rotation, the material was forced from the model hole
with blocking shape, and then drop from the discharging mouth, back to cool(moisture content
can't more than 14%), bag packaging.

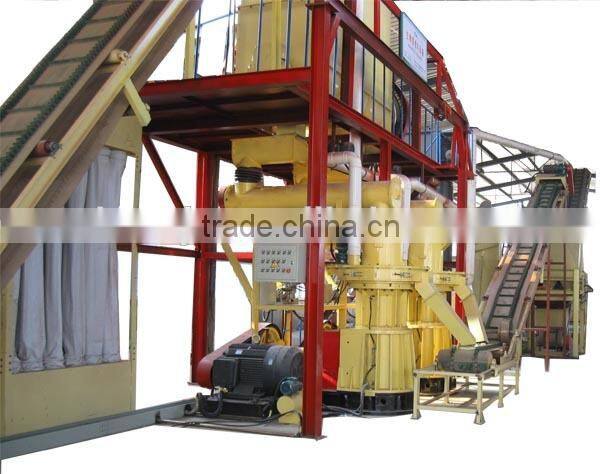

Complete Sawdust Briquette Presses With Dust Collector
4. Structure Characteristics Of Sawdust Briquette Presses:
Sawdust briquetting machine adopt loop mold on flat surface:
1.The motor drive the speed reducer drive shaft rotation, and then through the shaft to drive the
roller rotation, simple structure, easy maintenance.
2.Radial clearance between roller and mold is convenient to adjust, can guarantee two roller and
mold the most appropriate clearance;
3.Add up and down the electric heating ring, heating the ring mold, be helpful for material
forming.

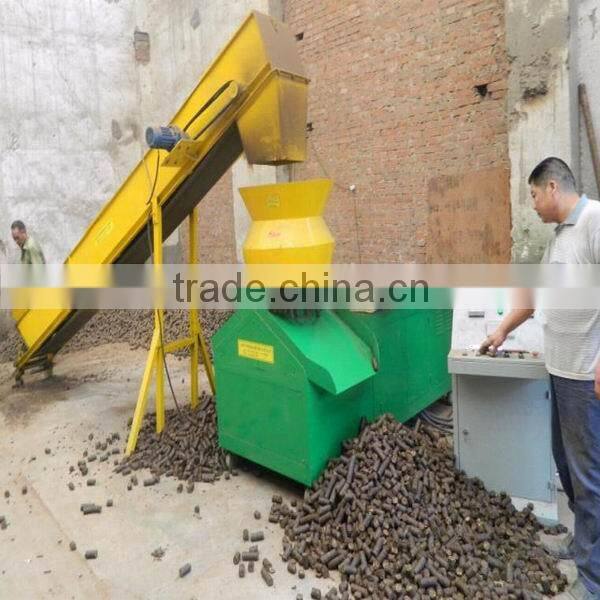

Installation Of Sawdust Briquette Presses
5. Technical Parameters Of Sawdust Briquette Presses:
Model |
Output(kg/h) |
Power(kw) |
Pellet size(mm) |
Weight(t) |
Dimension(mm) |
ZCP450 |
500-800 |
55 |
Φ2-10 |
2.3 |
2300×1100×1600 |
ZCP550 |
1000-2000 |
90 |
Φ2-15 |
3.2 |
2600×1100×2100/2500 |
ZCP800 |
2000-3000 |
110-132 |
Φ6-30 |
7.6 |
2700×1200×2400 |
ZCP1200 |
3000-4000 |
280-320 |
16.5 |
3700×1900×3000 |
