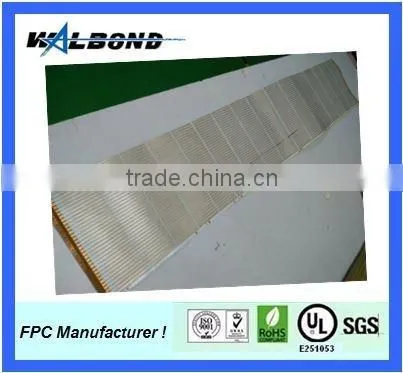

Kapton Flexible Pcb, Polymide FPC,malleable PL FPC,1m Long FPC,
US$ 100 - 120
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Walbond
Model Number:
HB001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flexible Pcb,digital FPC,fpc for LaptopUS$ 100 - 120MOQ: 1 Piece -
FPC,FPCB,flexible PcbUS$ 100 - 120MOQ: 1 Piece
-
LED Strip Flexible PcbUS$ 100 - 120MOQ: 1 Piece
-
2 Layer Polymide FPC,flexible Pcb,fpc Board,lcd Display FpcUS$ 100 - 120MOQ: 1 Piece
-
Flexible Pcb for Led,digital Fpc,camera FpcUS$ 100 - 120MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Walbond
Model Number
HB001
Base Material
polymide
Copper Thickness
1oz
Board Thickness
0.2mm
Min. Hole Size
0.1mm
Min. Line Width
6mil
Min. Line Spacing
6mil
Surface Finishing
OSP
Specifications
1.kapton flexible pcb2.good quality,reasonable price;
3.quicker delivery;
4.better logistic service;
5.UL,SGS,ROHS
Company information
We can manufacture FPC in higher quality, more competitive price, quicker delivery and better logistic service…Welcome to send us RFQ!
We have passed ISO9001 Quality Management System Certification and have obtained UL, RoHS and TS16949 certificates in accordance with American and European customers' standards. With constant efforts, our sales network has spread over five continents, such as America, Romania, South Africa, Japan and Israel.
Company structure
Specification
This form is of my company's process capacity for your reference, for more messages, pls contact with us freely!
| Item | Specification | ||
| Material | FR-4 / Hi-Tg FR-4 / polymide (electrolysis or rolling) /CEM-3/CEM-1/Aluminium | ||
| Layer | single layer,double layer,multi-layer(4-10) | ||
| Board Thickness | 0.2mm-3.0mm,+/-0.1mm(tolerance) | ||
| Copper Thickness | 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5% | ||
| Impedance Control | ±10% | ||
| Bow and Twist MAX. | 0.75%(SMT) | ||
| Anti-strip | 0.88N/mm | ||
| Resistance | ≤20Ω | ||
| Reactance | 500V | ||
| Min. Value | |||
| Min. Trace/Space Width | 6 mil,+/-0.15mm(tolerance) | ||
| SMD Pitch | 10 mil | ||
| BGA Pitch | 20 mil | ||
| Min Pad Space | 4mil(SMT) | ||
| Plating Copper Thickness | 15um | ||
| Hole | |||
| Hole Size | 0.25mm--6.2mm | ||
| Hole Position Tolerance | ±0.1mm | ||
| PTH/NPTH Tolerance | ±0.15mm(dia.=0.4-1.4mm) | ||
| Pad Tolerance | ±0.1mm(dia.≥0.6mm) | ||
| Pad to hole/to pad Tolerance | ±0.05mm/±0.2mm | ||
| Solder Mask | |||
| Pad no Open | soldermask must cover all on both side, reject tin on pad
|
||
| Pad Open | reject soldermask inside the hole on both side
|
||
| Solder Mask Thickness | 0.7mil,raised H≤0.05
|
||
| Colour | green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved) | ||
| Surface Finish | |||
| HAL | tin height≤0.05mm
|
||
| ENIG | Nickel 3-7um,gold:0.5-0.7um | ||
| OSP/flash gold | 0.2-0.5um | ||
| Pealable mask | cover all on pad,thickness≥0.20mm
|
||
| Carbon Ink | cover all on trace,Value≤30Ω
|
||
| Outline | |||
| Outline Tolerance | ±0.2mm | ||
| Beveling | 30°,45° | ||
| V-cut position/depth | ±0.2mm(length≤100mm)/±0.2mm | ||
| Punch | ±0.1mm | ||
| E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) | ||
| Certificate | SGS,ISO,ROHS,UL, | ||
Production flow
Quality control(QC)
Factory picture
Welcome to visit WALBOND !
