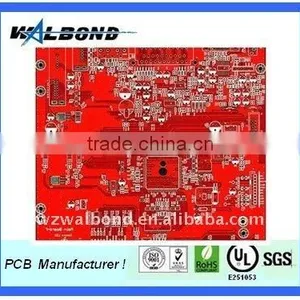

6L tv Motherboard PCB,home Appliance PCB,mobile Phone Motherboard,
US$ 320 - 400
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Walbond
Model Number:
6L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Layer Vacuum Packaging Machine Pcb,circuit Board Induction CookerUS$ 150 - 180MOQ: 1 Piece -
4 Layers Pcb, Solar Circuit Board,led Driver Circuit Board for FlashlightUS$ 150 - 180MOQ: 1 Piece
-
4L PCB With Buried and Blind Hole,4 Layer PCB BoardUS$ 150 - 180MOQ: 1 Piece
-
6 Layer PCB Manufacturer, PCB SupplierUS$ 320 - 400MOQ: 1 Piece
-
6 Layer PCB With BGA,led tv MotherboardUS$ 285 - 335MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Walbond
Model Number
6L
Number of Layers
6-Layer
Base Material
FR4
Copper Thickness
1-3OZ
Board Thickness
0.3-3.2MM
Min. Hole Size
0.1MM
Min. Line Width
8MIL
Min. Line Spacing
8MIL
Surface Finishing
ENIG
Specifications
1.6L tv motherboard PCB2.good quality,reasonable price;
3.quicker delivery;
4.better logistic service;
Company information
We can manufacture PCB in higher quality, more competitive price, quicker delivery and better logistic service…Welcome to send us RFQ!
We have passed ISO9001 Quality Management System Certification and have obtained UL, RoHS and TS16949 certificates in accordance with American and European customers' standards. With constant efforts, our sales network has spread over five continents, such as America, Romania, South Africa, Japan and Israel.
Company structure
Specification
This form is of my company's process capacity for your reference, for more messages, pls contact with us freely!
| Item | Specification | ||
| Material | FR-4 / Hi-Tg FR-4 / Lead free Materials(RoHS Compliant)/CEM-3/CEM-1/Aluminium | ||
| Layer | single layer,double layer,multi-layer(4-10) | ||
| Board Thickness | 0.3mm-3.0mm,+/-0.1mm(tolerance) | ||
| Copper Thickness | 1/2OZ-3OZ (35um to 105um),+/-8um(tolerance),purity 99.5% | ||
| Impedance Control | ±10% | ||
| Bow and Twist MAX. | 0.75%(SMT) | ||
| Anti-strip | 0.88N/mm | ||
| Resistance | ≤20Ω | ||
| Reactance | 500V | ||
| Min. Value | |||
| Min. Trace/Space Width | 6 mil,+/-0.15mm(tolerance) | ||
| SMD Pitch | 10 mil | ||
| BGA Pitch | 20 mil | ||
| Min Pad Space | 4mil(SMT) | ||
| Plating Copper Thickness | 15um | ||
| Hole | |||
| Hole Size | 0.25mm--6.2mm | ||
| Hole Position Tolerance | ±0.1mm | ||
| PTH/NPTH Tolerance | ±0.15mm(dia.=0.4-1.4mm) | ||
| Pad Tolerance | ±0.1mm(dia.≥0.6mm) | ||
| Pad to hole/to pad Tolerance | ±0.05mm/±0.2mm | ||
| Solder Mask | |||
| Pad no Open | soldermask must cover all on both side, reject tin on pad
|
||
| Pad Open | reject soldermask inside the hole on both side
|
||
| Solder Mask Thickness | 0.7mil,raised H≤0.05
|
||
| Colour | green,blue,red,yellow,black,white(LPI/MATT.,UL 94 V0 approved) | ||
| Surface Finish | |||
| HAL | tin height≤0.05mm
|
||
| ENIG | Nickel 3-7um,gold:0.5-0.7um | ||
| OSP/flash gold | 0.2-0.5um | ||
| Pealable mask | cover all on pad,thickness≥0.20mm
|
||
| Carbon Ink | cover all on trace,Value≤30Ω
|
||
| Outline | |||
| Outline Tolerance | ±0.2mm | ||
| Beveling | 30°,45° | ||
| V-cut position/depth | ±0.2mm(length≤100mm)/±0.2mm | ||
| Punch | ±0.1mm | ||
| E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) | ||
| Certificate | SGS,ISO,ROHS,UL, | ||
