Home > Industrial Equipment & Components > Power & Generating Sets > Other Generators > 5kw Mini Water Turbine Generator

5kw Mini Water Turbine Generator

Name: 5kw Mini Water Turbine Generator
Brand: Mini Water Turbine Generator
SKU: 125830011
Availability: InStock

Guangxi Nanning Hecong Trade Co., Ltd.

5kw Mini Water Turbine Generator thumbnail-1

5kw Mini Water Turbine Generator photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangxi, China

Brand Name:

Mini Water Turbine Generator

Model Number:

HC-S05

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangxi, China

Brand Name Mini Water Turbine Generator

Model Number HC-S05

Specifications

1. Type:5kw Mini Water Turbine Generator
2.Production: Goods in stock
3. Water head: 20 to 35meters
4. Factory Price

Our 5kw Mini Water Turbine Generator not only can power small power home appliances such as fan, light bulb, TV and electric stove, etc., but also can drive high-power ones such as fridge, washing machine, air conditioner, even mini motor.

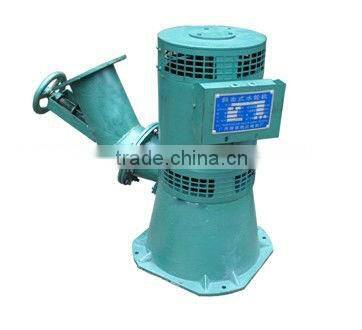

Picture of Mini Water Turbine Generator :

Main Technicial Parameters of Mini Water Turbine Generator :

Item No.		HC-S05
Generator Shell Material		Iron casting
Generator Stator Wire		Copper wire or Aluminum wire
Water turbine
Rated Power (w)		5000	5000
Rated Head (m)		20-25	30-35
Rated Flow(cbm/s)		0.012-0.0156	0.012-0.0156
Nozzle Diameter(cm)		5	5
Pipe Diameter(cm)		15	15
Generator
Type		Excitation	Excitation
Power Output (w)		5000	5000
Voltage(V)		220V AC/380V AC	220V AC/380V AC
Current(A)		22.73/13.16	22.73/13.16
Frequency(HZ)		50	50
Rotary Speed(RPM)		1000	1500
Phase		Single/three	Single/three

Weight(kgs) (with packing)		180	180
Packing	Length(cm)	65	65
	Width(cm)	49	49
	Height(cm)	78	78

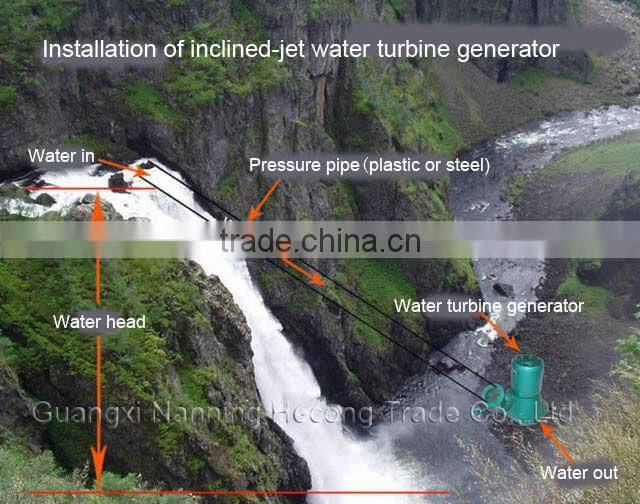

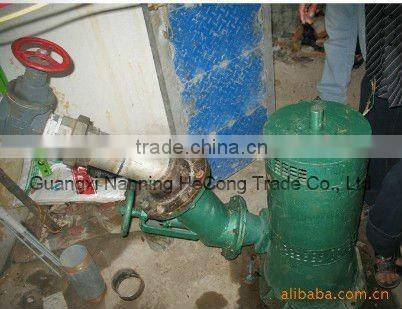

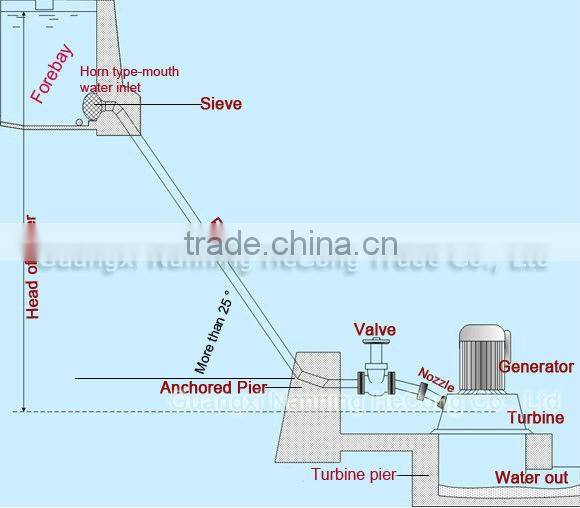

Installation of Mini Water Turbine Generator :

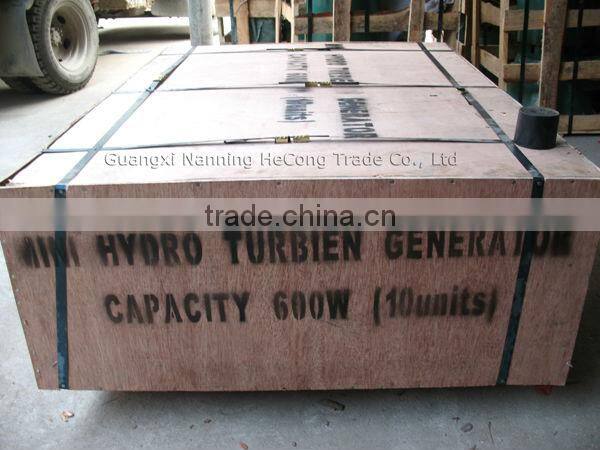

Packing of Mini Water Turbine Generator :

Automatic voltage controller

We also produce Automatic Voltage Controller. But it is not a definite necessary part with the water turbine generator. It depends on whether customers need it or not. And the price will be separately quoted, not with water turbine generator.

Working Principle of Mini Water Turbine Generator's Automatic voltage controller :

Automatic Voltage Controller/ Regulator will automatically transfer the over power output to a voltage regulation load. And when there are more electric appliances start to work, it will also automatically turn the over power from the load to the electric appliances, which keep the voltage stable at rated voltage( such as 220V).
