Brief Introduction of plastic pulverizer machine:
Plastic pulverizer is a perfect machine for processing and grinding thermoplastics material, such as PVE, PE, PP, EVA, PLA, ABS, etc.
The material to be pulverizered go through the centre of a vertically fixed grinding disc which is mounted cencentrically with an indentical high speed rotating disc. Centrifugal force take the material through the grinding area, and final powder is collected with a bower and cyclone system. Depending on the application the machine can be equiped with one piece grinding discs or grinding segments.
Special features of plastic pulverizer
- The new disc design is used, high-yield, strong resistance and the life of this grinding disc is double the ordinary.
- The use of newly designed professional bearings, and reach a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time and operation of machinery and control engineering.
- Installation and maintenance easy, open the door to cover clean-up.
- Milling process of the whole seal, without dust leakage.
- Full automatic feeding, the materials and sorting.
- Grinding gap adjustment is simple, just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).
- The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.
Technical Specification of plastic pulverizer machine
| Model | WDJ-400 | WDJ-500 | WDJ-750 |
| Chamber size (mm) | 400 | 500 | 750 |
| Main motor Power (kw) | 18.5 | 22-30 | 37-45 |
| Main Motor RPM | 4500 | 3250 | 2200 |
| Final size (mesh) | 10-120 | 10-120 | 10-120 |
| Capacity (kg/h) | 100-200 | 120-500 | 180-800 |
| Weight (kg) | 235 | 430 | 1000 |
(1) Automatic feeding system for plastic pulverizer, it will control feeding speed easily
(2) Full casting structure which is very strong and durable, welding type also available.

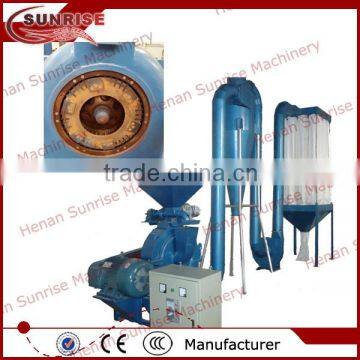

(3) Complete plastic pulverizer system view
(4) We can make compact structure so that it will save installation space

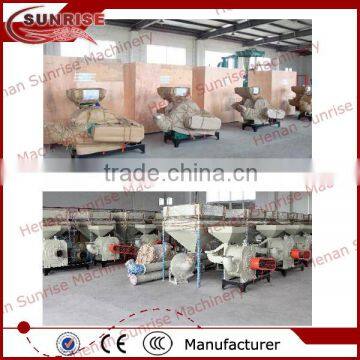

Normallly with plywood case or wrapping in plastic blister film with straw ropes, we can also make packing according to your requirements.
Package: our machine are all with plywood case packing, one set machine with one case.
Payment: T/T, Westeran Union, L/C, Paypal, Secure payment of Alibaba.
Delivery time: We will deliver within 7-12 working days after receiving front payment.
Warranty period: All our machine is with one year warranty. We will provide free parts and techcical support for operation. After one year, we will provide spare parts with manufacturing cost.
After-sales Service:
- Before deliver the machine, we will test and adjust everything properly.
- Once all is done, we will make detailed picture for customer to confirm for delivery.
- Operation video & working manule will be provided with the machine, so that clients can use our machine without difficulty.
- Any problems occur while using, we will provide profession advice and technical support ASAP.
- Spare parts of the machien is provide whole serving life with resonable price.
Henan Sunrise Machinery Co., limited has been in food processing line for many years, with the advantage of high quality and reasonable price, safe packing and fast delivery, advanced testing equipments as well as perfect follow up service. Our machines have enjoyed great popularity worldwide market, sepcially in Asia and Africa countries such as India, Malaysia, South Africa, Tanzania, etc.
