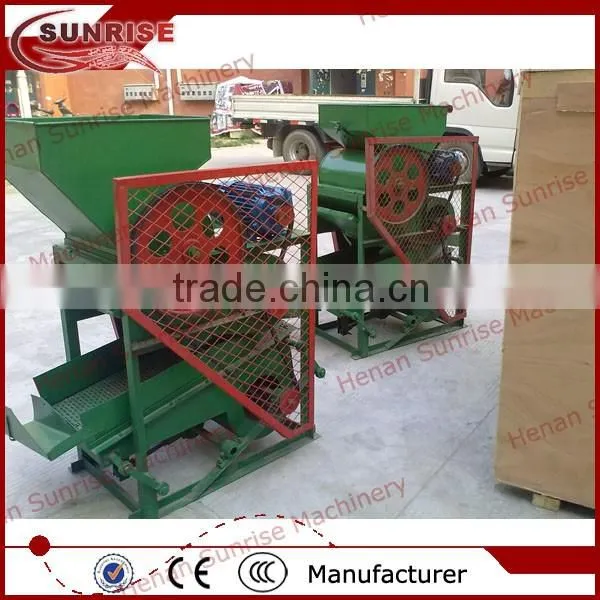

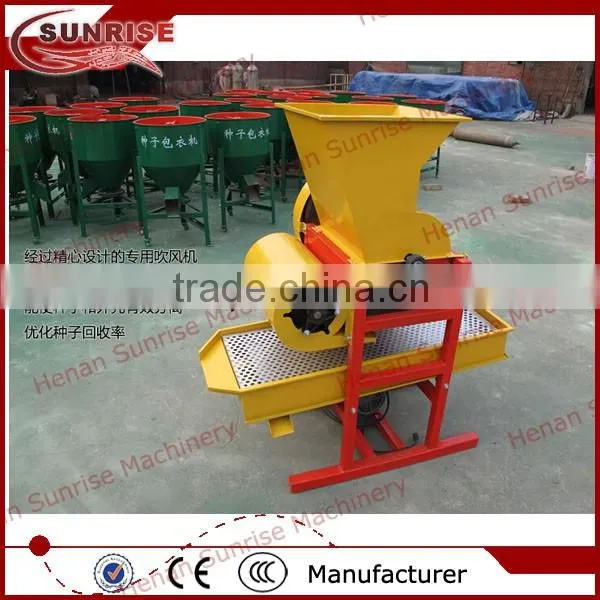

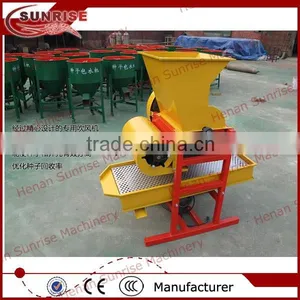

1. Peanut sheller machine
Peanut sheller machine to remove the shell of peanut.
Technical data of peanut sheller
| Model | Voltage | power | Size | Capacity |
| SRS-300 | 380V | 5.5KW | 1100*800*1470MM | 300-500KG/H |
| SRS-200 | 220V/380V | 2.2KW | 900*500*1270MM | 200-300KG/H |
| SRS-100 | 220V/380V | 1.5KW | 700*300*1070MM | 100-200KG/H |

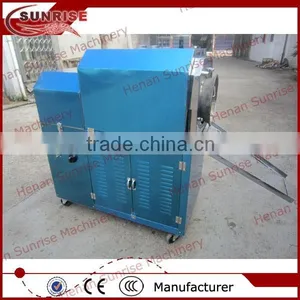

2. peanut roaster machine
1). This peanut roaster machine is used to roast the peanut before peeling the red skin. After roasting the
peeling rate is high, the broken rate is under 5%.
2). This peanut roaster machine uses gas or electricity as fuel, uses the new type heat pipe as heat-conducting medium.Taking advantage of the cycling of hot air in the pipe, the roster cans exposure the heat energy to the baked object.
3). This peanut roaster is one of our roaster machine, it's have many types, easy operate, high capacity and
competitive price. used to roast bean product like peanut, almond, soybean, and so on.
4). Peanut roaster machine is made of metal and it is a single-body roaster. It has a simple structure and it is very easy to operate. This machine uses the cycloidal reducer as power, and the chains drive the turning cage to roast the materials.
Please check the technical data of peanut roaster machine
(1) Electric heating
| Model | Capacity | Power | Dimensions | Weight |
| FC-hg25 | 12.5kg/batch | 370w+4.5kw heating | 990*470*1000mm | 75kg |
| FC-hg50 | 25kg/batch | 370w+7.2kw heating | 1100*620*1180mm | 106kg |
| FC-hg50 | 50kg/batch | 370w+12kw heating | 1350*810*1460mm | 220kg |
(2) Gas heating
| Model | Capacity | Power | Dimensions | Weight |
| FC-hg25 | 12.5kg/batch | 370w | 990*470*1000mm | 63kg |
| FC-hg50 | 25kg/batch | 370w | 1100*620*1180mm | 97kg |
| FC-hg100 | 50kg/batch | 370w | 1350*810*1460mm | 180kg |
This dry peanut peeling machine is ideal equipment for peanuts, removing the inner red skin of peanuts.

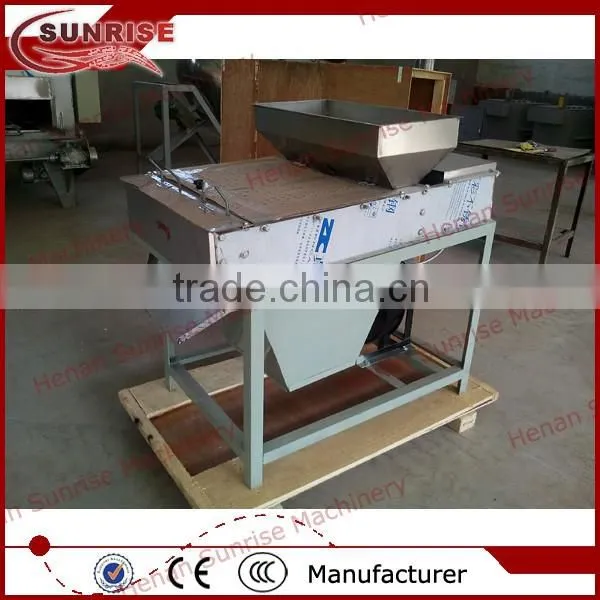

3. peanut red skin peeling machine
The dry peanuts are being peeled by means of rolling and rubbing.
Technical data of dry way peanut red skin peeling machine
| Type | Overal Dimension | Output (kg/h) | Power(kw) | Peeling Rate(%) |
| SRS-GT40 | 1100x350x1050 | 200kg/h | 0.75kw | 95% |
| SRS-GT80 | 1100x630x1050 | 400kg/h | 1.3kw | 95% |
| SRS-GT120 | 11001050x1050 | 600kg/h | 2kw | 95% |
4. Peanut butter machine, peanut grinder machine into butter
This machine is used for milling the raw material into super-imperceptible powder. Could be used for the pharmacy, food, chemical, and other wet material, this technology is the first class in China. And this machine is made of stain less steel.
Working system: This machine is using different shape of stators and rotors, crushing under the high circumgyration. Grinding the material through cutting, milling, high- frequent-shaking. The distance between stators could be adjusted and grinding by recirculation. This machine has many advantages. Compacted structure, stable working, low noise, rust-proof, easy to clear and maintain.
Apply:The applied field: Peanut, Almond, pineapple, sesame, butter, comfiture, soybean, juicer, soya-bean milk.
picture of peanut butter processing machine
Technical data of peanut butter machine
Model |
SRS-50 |
SRS-80 |
SRS-110 |
SRS-130 |
SRS-180 |
SRS-240 |
SRSS-300 |
|||||
The final product size (μm) |
2-50 |
|||||||||||
|
capacity(t/h)
|
0.005-0.03 |
0.1-0.5 |
0.3-1.2 |
0.4-2.0 |
0.8-6.0 |
4.0-12 |
6.0-25 |
|||||
Motor |
Power (kw) |
1.5/1.1 |
4 |
7.5 |
11/15 |
18.5/22 |
37/45 |
75/90 |
||||
Voltage(v) |
220/380 |
380 |
380 |
380 |
380 |
380 |
380 |
|||||
Spindle speed m/min |
2820 |
2890 |
2900 |
2930 |
2930 |
2970 |
2970 |
|||||
The diameter of rotor(mm) |
50 |
80 |
110 |
130 |
180 |
240 |
300 |
|||||
Dimension |
Length (mm) |
520 |
685 |
700 |
975 |
981 |
1319 |
1440 |
||||
Width (mm) |
250 |
335 |
430 |
456 |
476 |
500 |
630 |
|||||
Height (mm) |
555 |
928 |
1000 |
1054 |
1124 |
1276 |
1420 |
|||||
Weight(kg) |
70 |
210 |
300 |
400 |
420 |
1000 |
1600 |
|||||

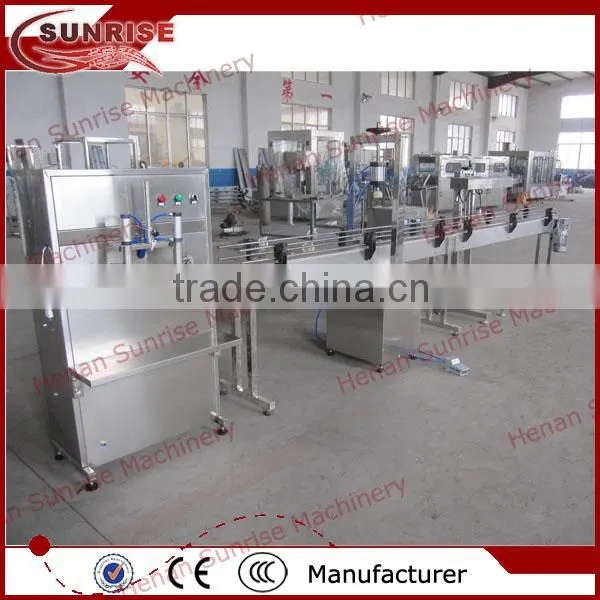

peanut butter filling and capping machine
please check the picture of our package about peanut process machine
Q:What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?
A:Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .
Q: During Guarantee time , if machine broken by machine design ,what should we do?
A:during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you , if after change broken part machine can not work , we would send new machine to you for exchange.
Q: Which kind documents your company can provided?
A:after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.
Q:After guarantee time , if we need spare parts , can you provided it ?
A:we can provided for the machine spare part .
Q:Which kind of package you will use ?
A:For export , we usually use plywood box . which meet export standard.
If you have any question about our peanut processing line, please contact me no hesitate!!!
