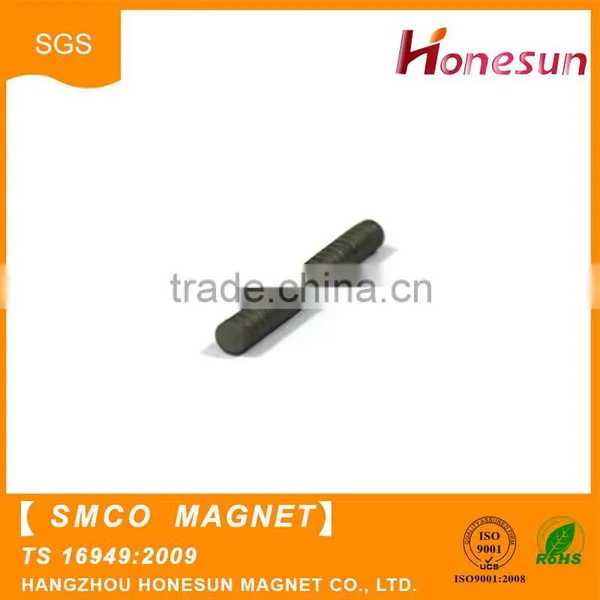

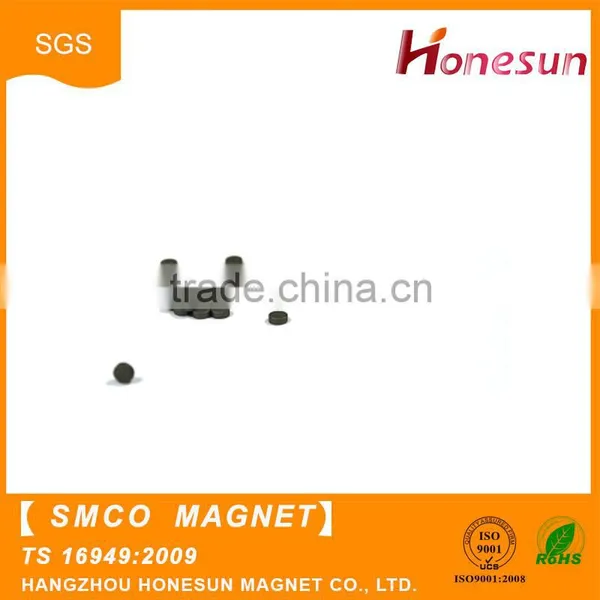

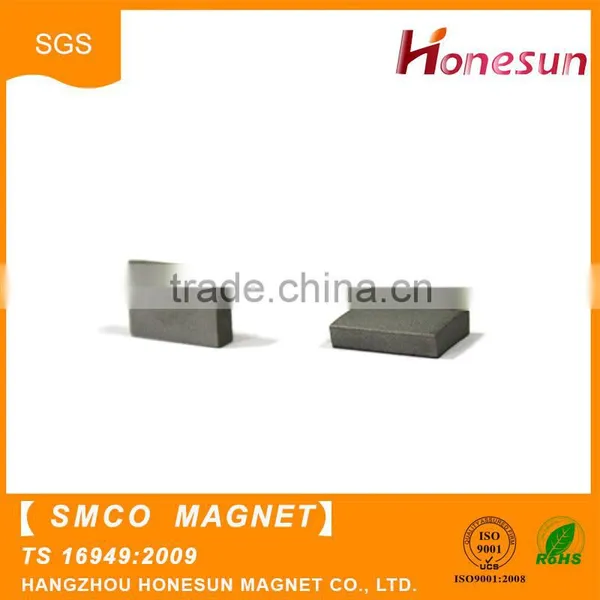

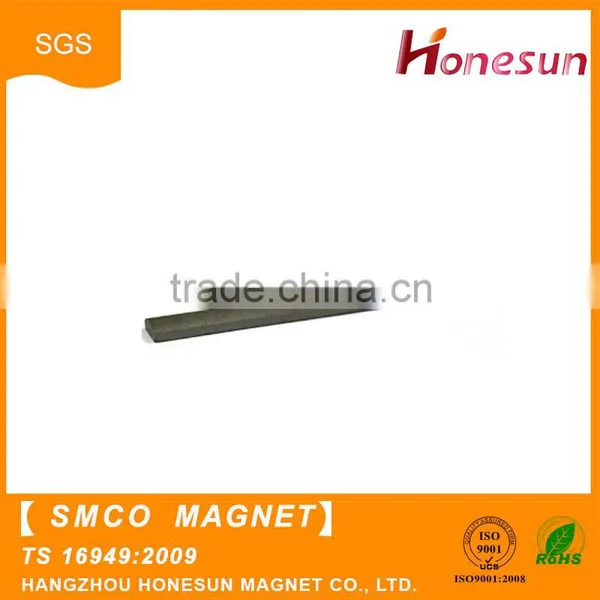

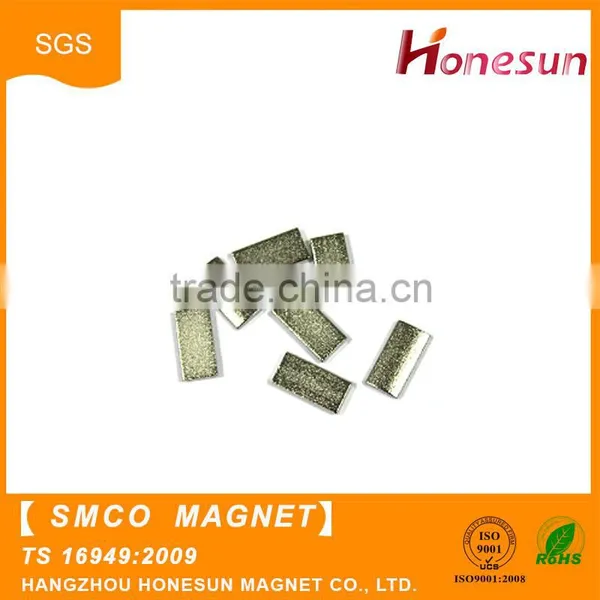

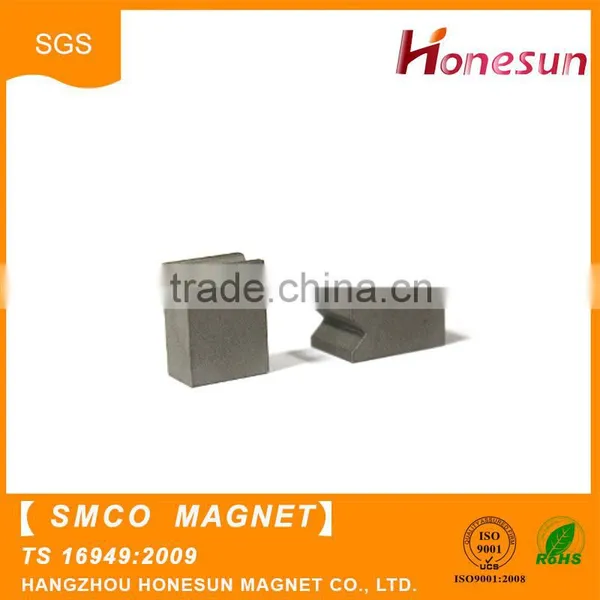

Hot Products Wholesale China Price Cheap(samarium Cobalt)SmCo Magnets
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HONESUN
Model Number:
HS-SC001
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO/HANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Selling Good Quality Sintered(samarium Cobalt)smco MagnetsUS$ 1 - 100MOQ: 1 Piece -
China Supplier (samarium Cobalt)smco Magnet Customized Shapes WholesaleUS$ 1 - 100MOQ: 1 Piece
-
Factory Direct Wholesale Custom(samarium Cobalt)smco Magnet ManufacturerUS$ 1 - 100MOQ: 1 Piece
-
Cheap Price Super Strong (samarium Cobalt)smco MagnetsUS$ 1 - 100MOQ: 1 Piece
-
Latest Design High Permanent (samarium Cobalt) Smco Magnet CheapUS$ 1 - 100MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
HONESUN
Model Number
HS-SC001
Type
Permanent
Composite
Rare Earth Magnet
Shape
Coil
Application
Industrial Magnet
| Description: | Hot products Wholesale China Price Cheap(samarium cobalt)SmCo Magnets | |||||
| Material: | Samarium cobalt magnet | |||||
| Product Name: | SmCo Magnets,Samarium cobalt magnet,Sintered Rare Earth Magnets,Permanent Magnets |
|||||
| Working Temperature: | Grade | Temperature | ||||
| SmCo5(YX16,YX18,YX20,YX22,YX24) | 250ºC | |||||
| Sm2Co17(YXG24,YXG26,YXG28,YXG30,YXG32) | 250~350ºC | |||||
| Magnet Shape: | Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available | |||||
| Magnet Coating: | Ni,Zn,Au,Ag,Epoxy,Passivated,etc | |||||
| Features: | Samarium cobalt magnets (SmCo) are composed of samarium, cobalt and iron. These rare earth magnets are extremely strong for their small size, metallic in appearance and found in simple shapes such as rings, blocks and discs.. The highest commercially available energy products of Sm2Co 17 are in the 30MGOe range | |||||
| High resistance to demagnetization | ||||||
| High Energy Product | ||||||
| Good temperature stability | ||||||
| High resistance of corrosion and oxidation | ||||||
| Expensive material (cobalt is market price sensitive) | ||||||
| Applications: | Fireplace door, Computer disc drives, Sensors,Radar,Traveling wave tubes, Satellite systems,motors,filter automobiles,magnetics holders,loudspeakers,wind generators, medical equipments, etc. | |||||
| Material Science | Grade |
Br |
Hcb |
Hcj |
(BH)max |
||||
|
1:5 SmCo5(SmPr)Co5 |
T | KGs | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | |
| YX-16 | 0.81-0.85 | 8.1-8.5 | 620-660 | 7.8-8.3 | 1194-1830 | 15-23 | 110-127 | 14-16 | |
| YX-18 | 0.85-0.90 | 8.5-9.0 | 660-700 | 8.3-8.8 | 1194-1830 | 15-23 | 127-143 | 16-18 | |
| YX-20 | 0.90-0.94 | 9.0-9.4 | 676-725 | 8.5-9.1 | 1194-1830 | 15-23 | 150-167 | 19-21 | |
| YX-22 | 0.92-0.96 | 9.2-9.6 | 710-748 | 8.9-9.4 | 1194-1830 | 15-23 | 160-175 | 20-22 | |
| YX-24 | 0.96-1.00 | 9.6-10.0 | 730-770 | 9.2-9.7 | 1194-1830 | 15-23 | 175-190 | 22-24 | |
| 1:5 SmCo5 |
YX-16s | 0.79-0.84 | 7.9-8.4 | 620-660 | 7.8-8.3 | ≥1830 | ≥23 | 118-135 | 15-17 |
| YX-18s | 0.84-0.89 | 8.4-8.9 | 660-700 | 8.3-8.8 | ≥1830 | ≥23 | 135-151 | 17-19 | |
| YX-20s | 0.89-0.93 | 8.9-9.3 | 684-732 | 8.6-9.2 | ≥1830 | ≥23 | 150-167 | 19-21 | |
| YX-22s | 0.92-0.96 | 9.2-9.6 | 710-756 | 8.9-9.5 | ≥1830 | ≥23 | 167-183 | 21-23 | |
| YX-24s | 0.96-1.00 | 9.6-10.0 | 740-788 | 9.3-9.9 | ≥1830 | 183-199 | 23-25 | ||
|
low temperature coefficient 1:5 (SmGd)Co5 |
LTc(YX-10) | 0.62-0.66 | 6.2-6.6 | 485-517 | 6.1-6.5 | ≥1830 | ≥23 | 75-88 | 9.5-11 |
|
2:17 Sm2(CoFeCuZr)17 |
YXG-24H | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1990 | ≥25 | 175-191 | 22-24 |
| YXG-26H | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1990 | ≥25 | 191-207 | 24-26 | |
| YXG-28H | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1990 | ≥25 | 207-220 | 26-28 | |
| YXG-30H | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1990 | ≥25 | 220-240 | 28-30 | |
| YXG-32H | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1990 | ≥25 | 230-255 | 29-32 | |
| YXG-22 | 0.93-0.97 | 9.3-9.7 | 676-740 | 8.5-9.3 | ≥1433 | ≥18 | 160-183 | 20-23 | |
| YXG-24 | 0.95-1.02 | 9.5-10.2 | 692-764 | 8.7-9.6 | ≥1433 | ≥18 | 175-191 | 22-24 | |
| YXG-26 | 1.02-1.05 | 10.2-10.5 | 748-796 | 9.4-10.0 | ≥1433 | ≥18 | 191-207 | 24-26 | |
| YXG-28 | 1.03-1.08 | 10.3-10.8 | 756-812 | 9.5-10.2 | ≥1433 | ≥18 | 207-220 | 26-28 | |
| YXG-30 | 1.08-1.10 | 10.8-11.0 | 788-835 | 9.9-10.5 | ≥1433 | ≥18 | 220-240 | 28-30 | |
| YXG-32 | 1.10-1.13 | 11.0-11.3 | 812-860 | 10.2-10.8 | ≥1433 | ≥18 | 230-255 | 29-32 | |
|
low temperature coefficient |
LTC(YXG-22) | 0.94-0.98 | 9.4-9.8 | 668-716 | 8.4-9.0 | ≥1433 | ≥18 | 167-183 | 21-23 |
