China Supplier High Performance Arc Permanent Ferrite Magnets

China Supplier High Performance Arc Permanent Ferrite Magnets thumbnail-1
China Supplier High Performance Arc Permanent Ferrite Magnets thumbnail-2
China Supplier High Performance Arc Permanent Ferrite Magnets thumbnail-3
China Supplier High Performance Arc Permanent Ferrite Magnets thumbnail-4
China Supplier High Performance Arc Permanent Ferrite Magnets photo-1

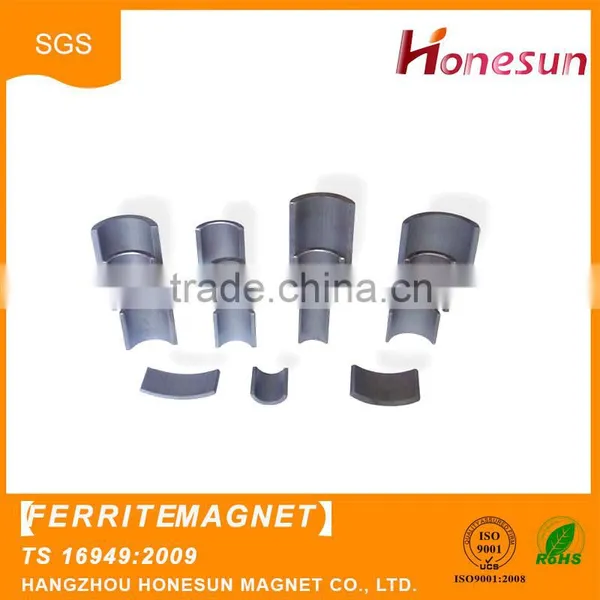

China Supplier High Performance Arc Permanent Ferrite Magnets photo-2

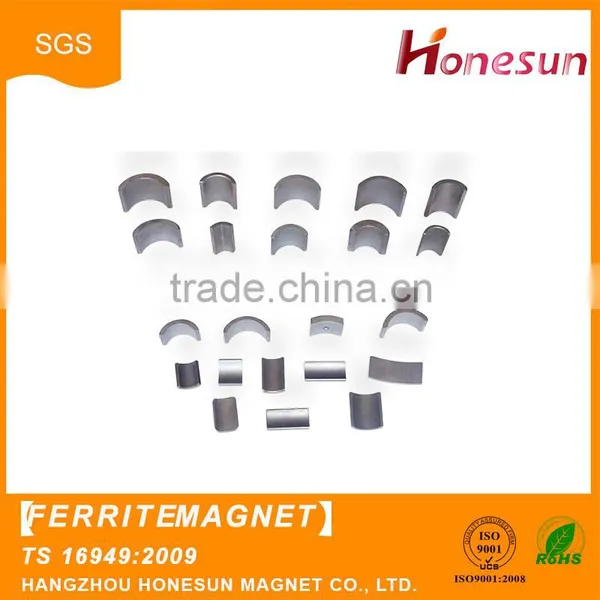

China Supplier High Performance Arc Permanent Ferrite Magnets photo-3

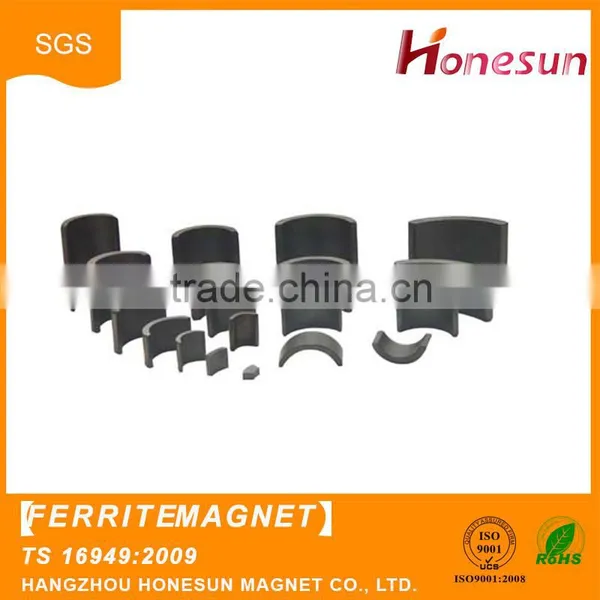

China Supplier High Performance Arc Permanent Ferrite Magnets photo-4
US$ 0.001 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Honesun
Model Number:
HS-FE001
Contact Supplier Request Quote Chat Now
Hangzhou Honesun Magnet Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or customer required port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Honesun
Model Number HS-FE001
Type Permanent
Composite Other, Ferrite Magnet, ceramic magnet
Shape Other, Block/ Arc/ Ring/ Bar, Block/Rectangular,Disc,Bar,Ring,Segment,ect


Description:      China supplier high performance arc permanent ferrite magnets
Material: The cheapest magnetic material,main contents including ferric oxide ,barium and strontium.
Product Name: Ferrite Magnet, Ceramic Magnet
Working Temperature: Grade Temperature
Y10T 250ºC
Y25 250ºC
Y30 250ºC
Y33 250ºC
Y35 250ºC
Y30BH 250ºC
Y33BH 250ºC
Magnet Shape:  Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available
Features: A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion & demagnetization. However, it has lower energy levels (Br) and is brittle in nature.
Applications: Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc.



Grade Br HcB Hcj (BH)max Max Temp MMPA
KGs mT kOe Ka/m kOe Ka/m MGOe Kj/m³ Equivalents
Y10T 2.00-2.18 200-218 1.57-1.82 125-145 2.64-3.14 210-250 0.8-1.0 6.5-8.0 250 C1
Y25 3.60-3.70 360-370 1.70-1.88 135-150 1.76-2.14 140-170 2.8-3.2 22.5-25.3 250 C5
Y30 3.80-3.90 380-390 2.40-2.64 191-210 2.50-2.51 199-220 3.4-3.7 27.0-30.0 250
Y33 4.00-4.10 400-410 2.20-2.45 175-195 2.26-2.51 180-200 3.8-4.0 30.0-31.5 250
Y35 4.10-4.20 410-420 2.77-2.95 220-235 2.83-3.01 225-240 4.0-4.2 31.5-33.0 250
Y30BH 3.80-3.90 380-390 2.80-2.95 223-235 2.90-3.08 231-245 3.4-3.7 27.0-30.0 250 C8
Y33BH 4.00-4.10 400-410 3.62-3.77 288-300 3.51-3.60 280-287 3.8-4.0 30.4-31.5 250
HVY33 4.10-4.30 410-430 2.76-3.14 220-250 2.83-3.20 225-255 3.96-4.4 31.5-35.0 250 C8B
HVY33H 4.10-4.30 410-430 3.14-3.39 250-270 3.14-3.45 250-275 3.96-4.4 31.5-35.0 250 PMF-6BD
HV34 4.20-4.40 420-440 2.51-2.89 200-230 2.58-2.95 205-235 4.08-4.52 32.5-36.0 250 C11
HV35 4.30-4.50 430-450 2.70-3.00 215-239 2.73-3.03 217-241 4.16-4.8 33.1-38.2 250 PMF-7B





1. Q:What information do I need to supply when I have an inquiry?

    A: If you have any inquiry, please kindly advise the following items:

Dimensions, sizes, shape and drawing with tolerances.

Material grade or magnetic properties.

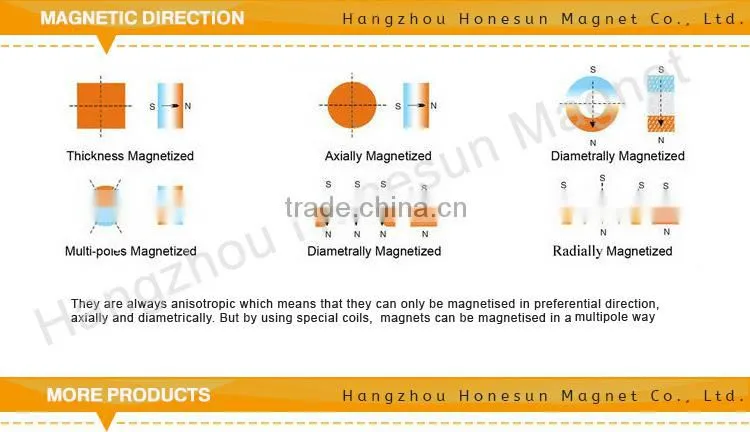

Magnetic direction, quantity. Surface coating (if necessary).



2.  Q: What about the sample time and charge?

     A: (1) 7-10 days if you want to customize your logo, charge according to your design

         (2)  1-3 days for our existing samples for reference

         (3)  sample charge: if in stock, can be free.



3.  Q: What about the delivery time of our products?

     A: 5-25days.

Fast Delivery,when you choose the item and decide your design, we can produce it as fast

as possible, we have materials in our stock, if you need very urgently, you can tell us and we will try our best to satisfy you.



4. Q: What is your MOQ?

    A: 1- 10-100-500-1000-5000-10000-200000pcs etc. depend different size ,item, design and process. MIN and SMALL quantity accept accordingly.



5:  How about the quality of the magnets?

    A: We have alibaba assurance, Alibaba factory checking testing report, ISO9001:2008 quality system certification,TS16949  and the certification ROSH.



6.  Q: How to pay you?

     A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.

Western Union cash, paypal – for small order or samples order.

Other payment: L/C,D/A,D/P, Money Gra , Paypal  or Escrow.

Different areas may exist some differences.



7. Q: If I have more questions, where can I get the answer?

    A: Any issue, please feel free to contact us any time.



8. How about our after-sale service?

We have 24-hours online contact ways, you can leave us message when you are available, or write all the questions in an email, we promise everyone question will get our response in 24hours.



Finally---Why you choose us?

1.Our products sell well in domestic and overseas markets, and are favorably appraised by clients.

2. Over 15 years export experiences teams makes us well now how to satisfy you .

3. Currently have safe store for standard size magnets in our plants.

4. Fast and on-time delivery.
