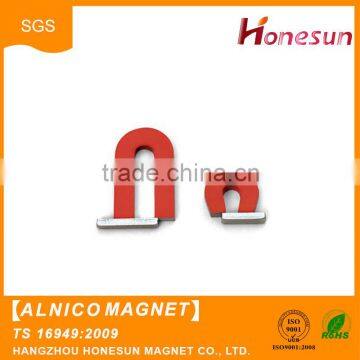

Latest Design Aluminum Nickel Cobalt Permanent AlNiCo Magnet
US$ 0.1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Honesun
Model Number:
HS-Al0001 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or customer required port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Product Promotion Low Price Educational Alnico MagnetsUS$ 0.001 - 100MOQ: 1 Piece -
China Supplier Wholesale Price Alnico Magnets for TeachingUS$ 0.001 - 100MOQ: 1 Piece
-
Promotional Products High Strength U Shape Alnico Magnet for TeachingUS$ 0.001 - 100MOQ: 1 Piece
-
Low Price Custom Wholesale AlNiCo Block Magnet for SaleUS$ 0.001 - 100MOQ: 1 Piece
-
Good Quality Customized Shapes Cast Alnico Magnets for TeachingUS$ 0.001 - 100MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Honesun
Model Number
HS-Al0001 series
Type
Other, Permanent, cast alnico magnet
Composite
Other, AlNiCo Magnet, Aluminum,Nickel,Cobalt
Shape
Other, Other, Block/Rectangular,Disc,Bar,Ring,Segment,ect
| Description: | Latest design Aluminum Nickel Cobalt Permanent AlNiCo Magnet | |||||
| Material: | Aluminum-Nickle-Cobalt-Iron | |||||
| Product Name: |
Alnico Magnets, Cast Alnico Magnet, Sintered Alnico Magnet, |
|||||
| Working Temperature: | Grade | Temperature | ||||
| LN10-LN12 | 450ºC | |||||
| LNG34-LNG60 | 525ºC | |||||
| LNGT18-LNGT80 | 550ºC | |||||
| FLNG10-FLNG12 | 450ºC | |||||
| FLNGT18-FLNGT20 | 550ºC | |||||
| FLNG34-FLNGT28 | 525ºC | |||||
| FLNGT36J-FLNGT48 | 550ºC | |||||
| B-LNG7-B-LNG8 | 200ºC | |||||

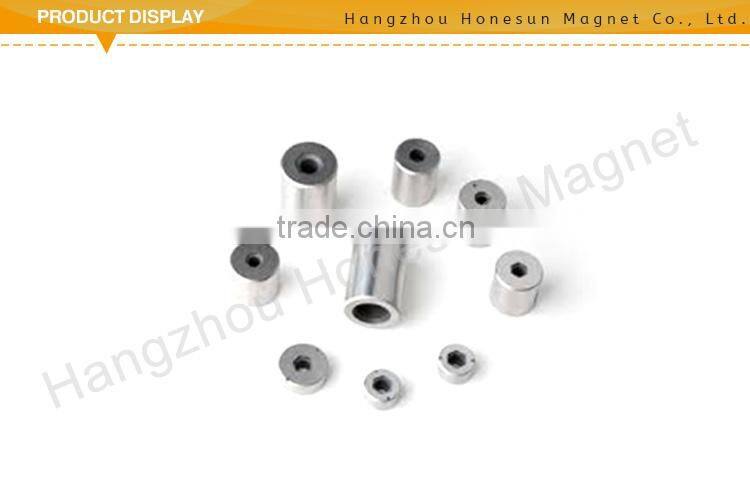

| Magnet Shapes and Sizes: | Disc,Cylinder,Block,Ring,Countersunk,Segment,Trapezoid and Irregular shapes and more.Customized shapes are available | |||||
| Features: | An ideal material in high temperature applications, which has high operating temperature up to 550°C and above, with excellent corrosion resistance. They can become partially demagnetized if they come in contact with other ferrous materials, special care is required during handling and storing. Usually cast and grinded during production, they are available in various grades depending on its application. Others such as sintered Alnico have lower magnetic properties but offer higher mechanical characteristics. |
|||||
| Applications: | Cast Alnico Magnet: automobile parts, instrumentation, electroacoustics, motor, teaching and aerospace military, etc Sintered Alnico Magnet: instrumentation, communication, magnetoelectricity switch and various sensors, etc. |
|||||
| CAST ALNICO | |||||||||
| Grade | MMPA | Br | Hcb | (BH)max | Tc | Tw | T.C.α(Br) | T.c.α(Hcj) | Density |
| mT/Gs | Ka/m/Oe | Kj/m3/MGOe | °C | °C | %/°C | %/°C | g/cm3 | ||
| Typical | Typical | Typical | Typical | Typical | Typical | Typical | |||
| LN10 | ALNICO3 | 600/6000 | 40/500 | 10/1.25 | 750 | 550 | -0.02 | -0.03~-0.07 | 6.9 |
| LNG10 | 600/6000 | 44/550 | 10/1.25 | 750 | 550 | -0.02 | -0.03~-0.07 | 6.9 | |
| LNG12 | ALNICO2 | 700/7000 | 44/550 | 12/1.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.1 |
| LNG13 | 680/6800 | 48/600 | 13/1.63 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.1 | |
| LNG16 | ALNICO4 | 800/8000 | 48/600 | 16/2.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNG18 | 900/9000 | 48/600 | 18/2.25 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNG37 | ALNICO5 | 1200/12000 | 48/600 | 37/4.63 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNG40 | 1230/12300 | 48/600 | 40/5.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNG44 | 1250/12500 | 52/650 | 44/5.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNG48 | ALNICO5DG | 1280/12800 | 56/700 | 48/6.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNG52 | 1300/13000 | 56/700 | 52/6.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNG56 | ALNICO5-7 | 1300/13000 | 58/720 | 56/7.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNG60 | 1330/13300 | 60/750 | 60/7.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT28 | ALNICO6 | 1000/10000 | 56/700 | 28/3.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNGT30 | 1100/11000 | 56/700 | 30/3.75 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT18 | ALNICO8 | 580/5800 | 80/1000 | 18/2.25 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNGT32 | 800/8000 | 100/1250 | 32/4.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT38 | 800/8000 | 110/1380 | 38/4.75 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT44 | 850/8500 | 115/1450 | 44/5.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT48 | ALNICO8HE | 900/9000 | 120/1500 | 48/6.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNGT60 | ALNICO9 | 900/9000 | 110/1380 | 60/7.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNGT72 | 1050/10500 | 112/1400 | 72/9.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT80 | 1080/10800 | 120/1500 | 80/10.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT88 | 1100/11000 | 115/1450 | 88/11.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT96 | 1150/11500 | 118/1480 | 96/12.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT36J | ALNICO8HC | 700/7000 | 140/1750 | 36/4.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 |
| LNGT48J | 800/8000 | 145/1820 | 48/6.00 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| LNGT52J | 850/8500 | 140/1750 | 52/6.50 | 800~850 | 550 | -0.02 | -0.03~-0.07 | 7.3 | |
| SINTERED ALNICO | ||||||||
| Grade | MMPA | Br | Hcb | (BH)max | Tc | Tw | T.C.α(Br) | Density |
| mT/Gs | Ka/m/Oe | Kj/m3/MGOe | °C | °C | %/°C | g/cm3 | ||
| Typical | Typical | Typical | Typical | Typical | Typical | |||
| FLN8 | S.ALNICO3 | 500/5000 | 40/500 | 8/1.00 | 760 | 450 | -0.022 | 6.9 |
| FLNG12 | S.ALNICO2 | 700/7000 | 48/600 | 12/1.50 | 810 | 450 | -0.014 | 7.1 |
| FLNGT18 | S.ALNICO7 | 600/6000 | 90/1130 | 18/2.20 | 860 | 450 | -0.02 | 7.3 |
| FLNG34 | S.ALNICO5 | 1200/12000 | 48/600 | 34/4.25 | 890 | 450 | -0.016 | 7.3 |
| FLNGT28 | S.ALNICO6 | 1050/10500 | 56/700 | 28/3.50 | 850 | 450 | -0.02 | 7.3 |
| FLNGT38 | S.ALNICO8 | 800/8000 | 120/1500 | 38/4.75 | 850 | 450 | -0.02 | 7.3 |
| FLNGT42 | S.ALNICO8 | 880/8800 | 120/1500 | 42/5.25 | 820 | 450 | -0.02 | 7.3 |
| FLNGT33J | S.ALNICO8HC | 700/7000 | 140/1750 | 33/4.13 | 850 | 450 | -0.025 | 7.3 |
| FLNGT36J | S.ALNICO8 | 700/7000 | 140/1750 | 36/4.50 | 850 | 450 | -0.025 | 7.3 |
