Cast Alnico Magnet High Quality and Cheap Pickup

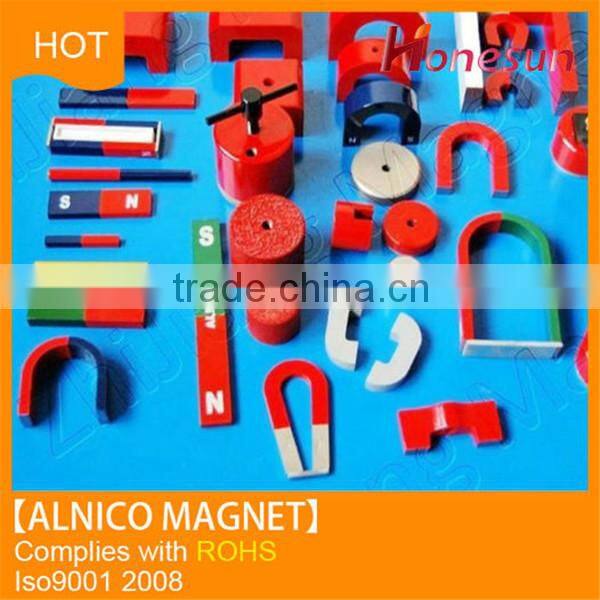

Cast Alnico Magnet High Quality and Cheap Pickup thumbnail-1

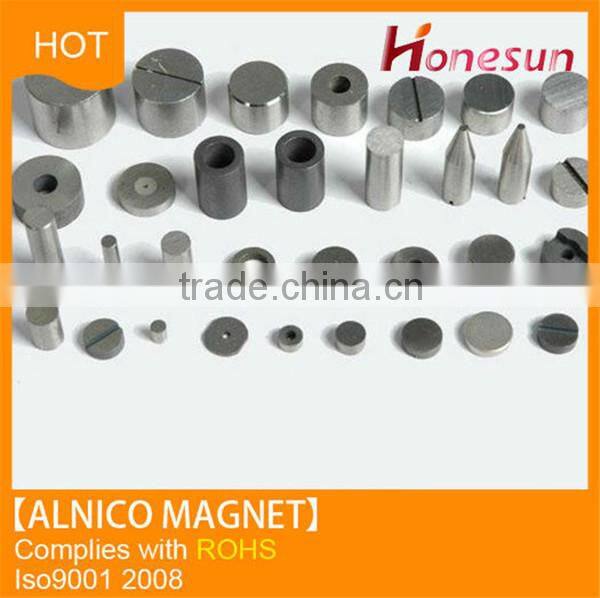

Cast Alnico Magnet High Quality and Cheap Pickup photo-1
US$ 0.001 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Honesun
Model Number:
HS-Al0001 series
Contact Supplier Request Quote Chat Now
Hangzhou Honesun Magnet Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or customer required port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Honesun
Model Number HS-Al0001 series
Type Other, Permanent, cast alnico magnet
Composite Other, AlNiCo Magnet, Aluminum,Nickel,Cobalt
Shape Other, Other, Block/Rectangular,Disc,Bar,Ring,Segment,ect

Specifications

cast alnico magnet
1.Operating Temperature up to 550deg C
2.Grade:Alnico2,Alnico3,Alnico5,Alnico8,Alnico9


Product Description



Cast Alnico Magnet



Product Name:

Alnico Magnets, Alumimum-Nickel-Cobalt Magnets, Cast Alnico Magnets, Sintered Alnico Magnets.



Features:

An ideal material in high temperature applications, which has high operating temperature up to 550°C and above,  with excellent corrosion resistance. They can be partially demagnetized if they come in contact with other ferrous materials, special care is required during handling and storing.

Usually cast and grinded during production, they are available in various grades depending on its application. Others such as sintered Alnico have lower magnetic properties but offer higher mechanical characteristics



Applications:

• Micro Motors

• Sensors

• Hysteresis Brakes

• Electronic devices

• Instrument Making

• Meters: odometer, electrical meter, water-meter,etc.

• Audio and Speakers

• Precise Instruments for Aerospace and defense Technologies



Magnetic Properties of Alnico Magnets:



Grade Br HcB Hcj (BH)max Br Hcj Max Temp MMPA
KGs mT kOe Ka/m kOe Ka/m MGOe Kj/m³ TK(Br)%/K TK(Hcj)%/K ºC Equivalents
ISOTROPIC CAST ALNICO
LN10 6.5 650 0.48 38 0.5 40 1.25 10 -0.035 -0.025 450 ALNICO3
LNG12 7.5 750 0.56 45 0.58 46 1.5 12 -0.03 -0.02 450 ALNICO2
LNGT18 5.5 550 1.13 90 1.21 97 2.25 18 -0.025 0.01 550 ALNICO8
ANISOTROPIC CAST ALNICO
LNG34 11 1100 0.63 50 0.65 52 4.25 34 -0.02 0.01 525
LNG37 11.8 1180 0.61 49 0.64 51 4.63 37 -0.02 0.01 525 ALNICO5
LNG40 12 1200 0.63 50 0.65 52 5 40 -0.02 0.01 525
LNG44 12.5 1250 0.65 52 0.68 54 5.5 44 -0.02 0.01 525
LNGT34 11.5 1150 0.73 58 0.75 60 3.5 28 -0.02 0.03 525 ALNICO6
LNG52 13 1300 0.7 56 0.73 58 6.5 52 -0.02 0.03 525 ALNICO5DG
LNG60 13.5 1350 0.73 58 0.75 60 7.5 60 -0.02 0.03 525 ALNICO5-7
LNGT38 8 800 1.38 110 1.4 112 4.75 38 -0.025 0.01 550
LNGT40 8.5 850 1.44 115 1.46 117 5 40 -0.025 0.01 550 ALNICO8
LNGT44 9 900 1.44 115 1.46 117 5.5 44 -0.025 0.01 550
LNGT36J 7.2 720 1.88 150 1.9 152 4.5 36 -0.025 0.01 550 ALNICO8HC
LNGT60 10 1000 1.38 110 1.4 112 7.5 60 -0.025 0.01 550
LNGT72 10.5 1050 1.44 115 1.46 117 9 72 -0.025 0.01 550 ALNICO9
LNGT80 10.8 1080 1.5 120 1.53 122 10 80 -0.025 0.01 550
ISOTROPIC SINTERED ALNICO
FLNG10 6.5 650 0.5 40 0.53 42 1.25 10 -0.03 -0.02 450 ALNICO3
FLNG12 7.5 750 0.56 45 0.58 46 1.5 12 -0.035 -0.025 450 ALNICO2
FLNGT18 6 600 1.19 95 1.23 98 2.25 18 -0.025 0.01 550
FLNGT20 6.2 620 1.25 100 1.31 105 2.5 20 -0.025 0.01 550 ALNICO8
ANISOTROPIC SINTERED ALNICO
FLNG34 11.5 1150 0.6 48 0.63 50 4.25 34 -0.02 0.01 525 ALNICO5
FLNGT28 11 1100 0.73 58 0.75 60 3.5 28 -0.02 0.03 525 ALNICO6
FLNGT36J 7.2 720 1.88 150 1.9 152 4.5 36 -0.025 0.01 550 ALNICO8HC
FLNGT38 8 800 1.38 110 1.4 112 4.75 38 -0.025 0.01 550
FLNGT44 8.5 850 1.5 120 1.53 122 5.5 44 -0.025 0.01 550 ALNICO8
FLNGT48 9.2 920 1.56 125 1.59 127 6 48 -0.025 0.01 550
BONDED ALNICO (BEARING)
B-LNG7 3.1 310 1 79.63 1.3 103.5 0.85 6.77 -0.02 0.01 200
B-LNG8 3.4 340 1.05 83.612 1.35 107.5 1 7.96 -0.02 0.01 200

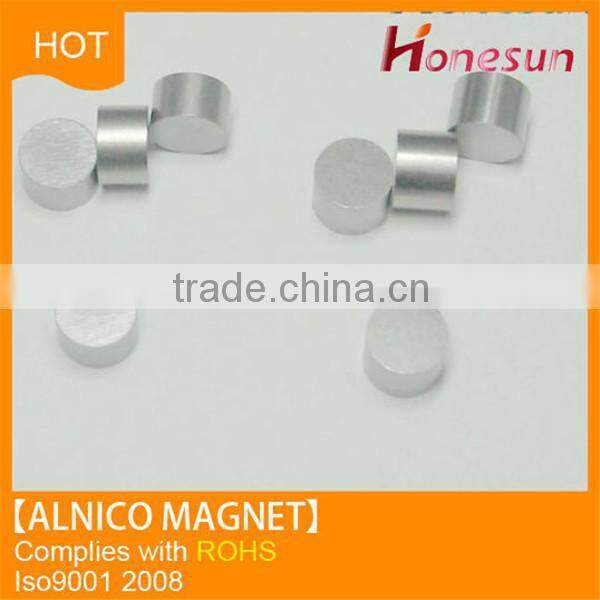

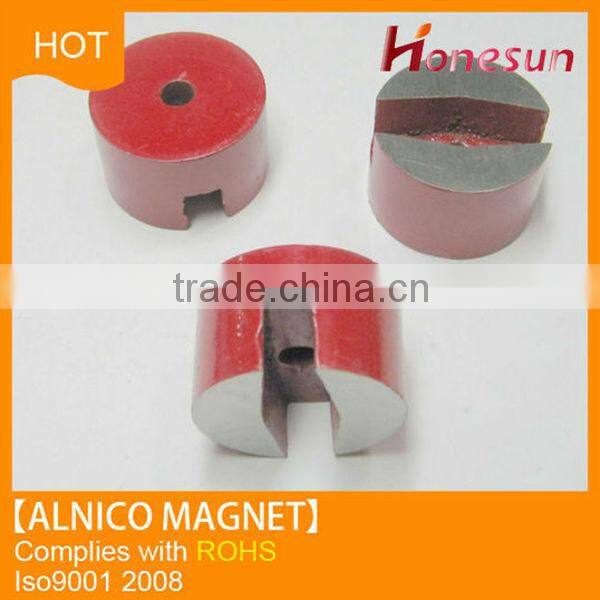

 cast alnico magnet high quality and cheap pickupcast alnico magnet high quality and cheap pickupcast alnico magnet high quality and cheap pickup





 cast alnico magnet high quality and cheap pickup






Packaging & Shipping




Our Services



1.The Sales Dep. should inform the clients within 24 hours after dispatching.

2. The Sales Dep. will keep satisfaction investigation of customers periodically, analyzing and summarizing customers’ requirements and market potential demands.

3. Sales Dept. will firstly make feedback to Quality Dept. with written form once receiving customers’ complaints about products. Then Quality Dept. will make analysis, confirm the related responsible department, take corrective actions, trace and validate implementing effects and finally inform the results to Sales Dept. orderly. Lastly, Sales Dept. will send these related documents and analysis to customers to get their satisfaction confirmation.

4. We can provide various transportation: Steam-transports, railways, shipping, airplane and quick mails (UPS, ADP, ADC, AirFex, TTK,)


Company Information



Hangzhou Honesun Magnet Co., Ltd. focuses on designing, researching, developing, manufacturing and selling Magnets and Magnetic Assemblies. With our 15 years' rich experience and considerate services, we have been recognized as a reliable supplier by many international buyers.

To ensure quality, we have founded a R&D center and a quality control center with highly educated engineers,carry out strict inspection at each stage: incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). Furthermore, our products are manufactured according to ISO9001 Standards. We have also introduced Magnetic Curve Equipment, Salt-Spray testing facilities, Temperature -humidity testing Chambers, Video Measure Systems, Force testing facilities, etc., which allows us to make products that meet the international standards.
