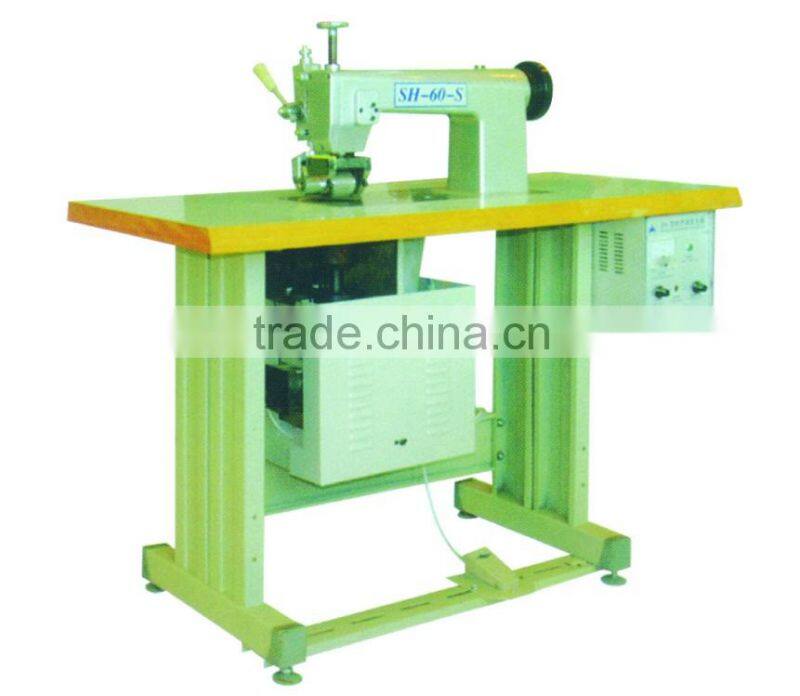

Xiehe Brand High Speed Ultrasonic Sewing Machine

Xiehe Brand High Speed Ultrasonic Sewing Machine photo-1

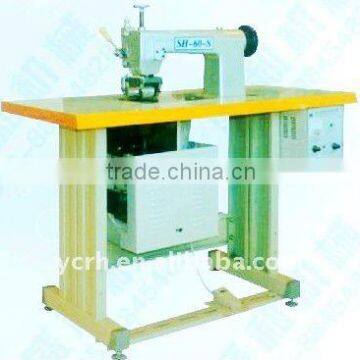

Xiehe Brand High Speed Ultrasonic Sewing Machine photo-2
US$ 25,000 - 52,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Xiehe
Model Number:
SH-60
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Xiehe
Model Number SH-60
After-sales Service Provided Engineers available to service machinery overseas

   Xiehe Brand High Speed Ultrasonic Sewing Machine

Xiehe Brand High Speed Ultrasonic Sewing Machine





Basic components

1. New type PC intellectual ultrasonic generator;

2. 20KHz ultrasonic transducer structure;

3. Bottom horn fixed suspension structure;

4. Single motor speed adjustment system;

5. Manual (or pneumatic) roller lifting system;



 Characteristics

1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;

2. Strong ultrasonic power with three adjustable gears(maximum, medium and minimum), meets the welding requirements of different materials and thickness;

3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;

4. Variety of roller patterns, other roller designs available according to customer requirements;

5. Four times faster than sewing machines, minimal operator training required.



Functions



1. Trimming: Straight of curvilinear edge cutting and edge treatment for melting, so smooth, no rough edges;



2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;



3. Lace: Cut out the various patterns of holes, and treatment of side melting;



4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;



5. Molding: Simultaneous cutting, sealing and embossing to make production in one time.







Technic Specification:

Power Supply220V ±5V or 110V available
Working Frequency20KHz
Output Frequency1800-2500 W
Working Speed0-20M/min
Roller sizesWidth: 0-60mm, diameter:ø50- ø60mm







Application :

Xiehe Brand High Speed Ultrasonic Sewing MachineXiehe Brand High Speed Ultrasonic Sewing MachineXiehe Brand High Speed Ultrasonic Sewing MachineXiehe Brand High Speed Ultrasonic Sewing Machine





After-sale Service :



One year warranty period after the installation. Technical personnel will be assigned to the customer side for installation and setting up, including on site layout of equipment, pipe, and line arrangement.



Welcome to contact us and visit our company !

Certificate:
Xiehe Brand High Speed Ultrasonic Sewing Machine
