Specifications

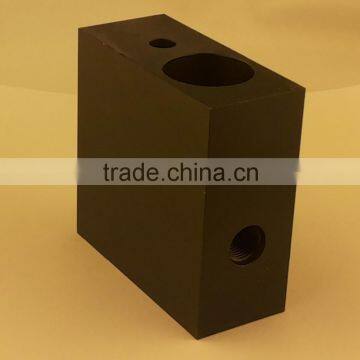

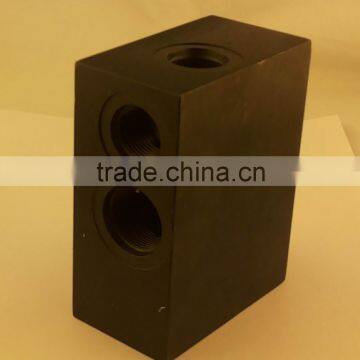

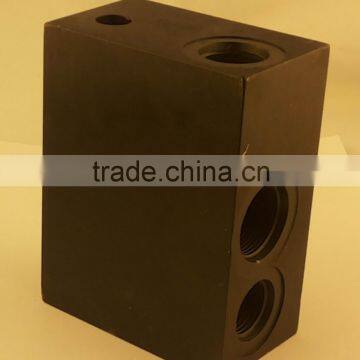

High quality CNC machine parts
precision CNC machining parts
carbn steel, brass material
OEM available
ISO9001-2008
High quality CNC machine parts
carbn steel, brass material
cast and machining part assembled
ISO 9001-2008 certificate
100% export
The shortest lead time is 7 days
samples provided before production
QC inspection 100%
Precision cnc machining, steel machining
A:certification: ISO9001:2008
B.Products Available
bolts, screws, nuts, rivets, Heatsink, shafts(axles, spline shafts, dart shafts),gears (pinions, wheels ) bearing, LED light-fixture, auto parts, electronic parts, etc.
C.Advantage
1. Competitive price with good quality
2. Low MOQ (200pcs is even acceptable in some special conditions)
3. Short lead time (7-30days according to order qty)
4. Customized size and spec /OEM available
5.Near shenzhen and HK, convenient transportation
D.Materials Available
1. Stainless Steel: SS201, SS303, SS304, SS316 etc.
2. Carbon Steel: AISI 1045, 9SMnPb28 etc
3. Brass:C36000 (C26800), C37700 (HPb59), C38500(HPb58), C27200(CuZn37), C28000(CuZn40) etc.
4. Bronze: C51000, C52100, C54400, etc.
5. Iron: grey iron and ductile iron
6. Aluminum: 6061, 6063,7075,5052 etc.
E.Processing Method
cnc machining, turning, milling, drilling, grinding, broaching, welding and assembly.
F.Package
suitable for sea and air transportation or as required
| CNC Swiss Turning Center Capabilities | ||
| Processes (General Capabilities) | Boring | Milling |
| Deburring | Polishing | |
| Drilling | Reaming | |
| Knurling | Turning | |
| 7 Axis Cutting | 12 Live Tools | |
| Cross Milling & Drilling | ||
| Processes (Special Capabilities) | Broaching | Knurling |
| Deep Hole Drilling | Slotting | |
| Processes (Threading) | External Thread Cutting | |
| Internal Thread Cutting | ||
| Tolerance (+/-) | 0.0005 in | Tight Tolerance |
| Precision | Ultra Precision | |
| Outer Diameter | Max | |
| 20 mm | ||
| Part Length | Max | |
| 6 in | ||
| Equipment Capabilities | 7-Axis Machining Capabilities | Single Spindle |
| Mitsubishi CNC Control | Swiss Screw Machine | |
| Multi-Spindle | ||
| Support Machine Tools | Miyano BND345 w/ Bar Feed | |
| Hardinge CH Bar | ||
| Hardinge GT | ||
| Additional Capabilities | CAD Design Support | |
| CAM Programming | ||
| Coordinate Measuring Machines (CMM) | ||
| Design Review for Manufacturability | ||
| Materials (Metals) | Alloy Steels | Copper |
| Aluminum | Invar | |
| Brass | Kovar | |
| Bronze Alloys | Stainless Steel | |
| Carbon Steel | ||
| Materials (Plastic Polymers) | ABS (Acrylonitrile Butadiene Styrene) | Polyetheretherketone (PEEK) |
| Acetal / Delrin | Polyetherimide / Ultem | |
| Acrylic | PTFE (PolyTetraFluoroEthylene) | |
| Nylon | PVC (Polyvinyl Chloride) | |
| Phenolic | PVDF (Polyvinylidene Fluoride) | |
| Polyamide-Imide | Teflon | |
| Polycarbonate | Torlon | |
| Secondary Services Offered | Anodizing (All colors) | Silk Screening |
| Passivating | Painting | |
| Electroless Nickel | Heat Treating | |
| Electro Polish | Black Oxide | |
| Bead Blasting | Ebonal C | |
| Laser Engraving | ||
| Lead Times Available | Job by Job Basis | |
| Expedited Services Available | ||
| Production Volume | Prototype | |
| Low Volume | ||
| High Volume | ||
| Intended Application | Blood Analyzers, Hand Held | Microscopes |
| Borescopes | Multi-Element Zoom Systems | |
| CCD Camera Systems | Nano Positioning Stages | |
| Custom Optical Systems | NIR Systems | |
| Endoscopes | Optical Scanners | |
| Galvanometers | Precision Motion Control Stages | |
| High Speed Shutters | Scanning Mirrors | |
| Inspection Instruments | Small Motion Systems | |
| IR Systems | Test and Measurement Systems | |
| Laser Marking | ||
| Laser Scanning | ||
| Linear and Rotary Stages | ||
| Markets | Aerospace | Life Sciences |
| Automotive | Medical | |
| Biomedical | Metrology | |
| Contract Manufacturing | Military | |
| Data Collection/Transfer | Night Vision - IR/NIR | |
| Defense and Security | Optics and Photonics | |
| Fiber Optic Illumination | Projection Optics | |
| Laser Marking | Semi Conductor | |
| Laser Scanning | Vision Systems | |
| Law Enforcement | ||
