Specifications

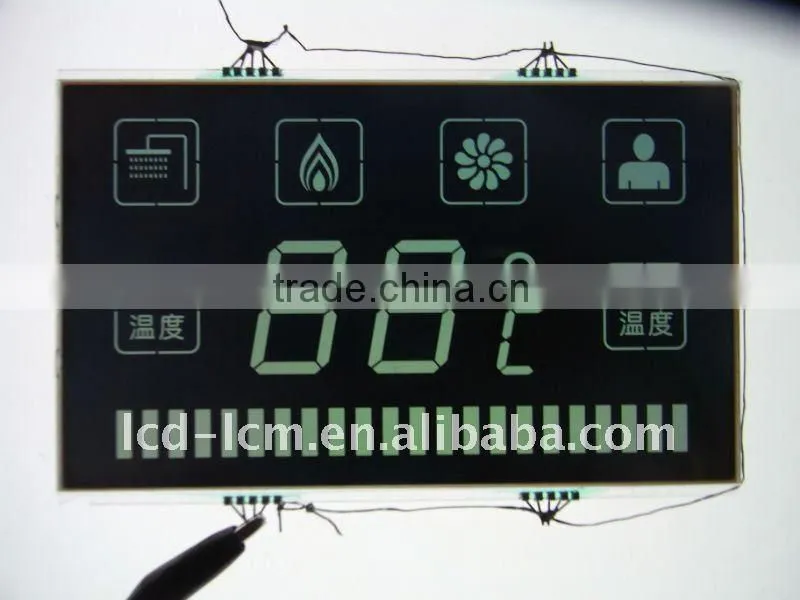

water heater tn negative lcd display:1. lcd display
2.High Brightness
3.Light weight
4.High cost performance
water heater tn negative lcd display:
GENERAL SPECIFICATION
Outline Size(mm) |
140.00(L)×88.00(W)×2.8(T)MAX |
LCD Type |
TN(NEGATIVE) |
Polarizer |
Transmissive |
View Area ( mm) |
137.00×80.00 |
Driving Method |
1/4Duty,1/3Bias |
Connector |
PIN |
Viewing Direction |
6'CLOCK |
Operating Voltage |
5.0V |
Backlight |
None |
Operating Temperature (°C) |
-25 to +75°C |
Storage Temprature (°C) |
-30to +80°C |
Application |
Water Heater |
Competitive Advantages :
1.High Quality. RoHS ,SGS,CE compliant. Every products are strictly checked by our quanlity control department before shipment.
2. Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3.Best Service. We provide best pre-sales and after-sales service to you
4.Custom Design,can specially meet your needs
5.Fast Delivery ,about 20 days for lead time
6.Samples available on request
Different specifications lcd/lcm can be customized!
