Home > Consumer Electronics > Display & Accessories > LCD Module > 96x16 Dots Graphic Display

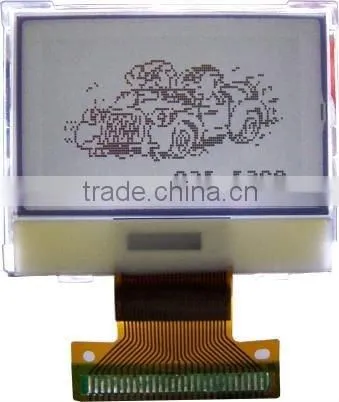

96x16 Dots Graphic Display

Name: 96x16 Dots Graphic Display
Brand: Crystal-Run
SKU: 125807525

Negotiable MOQ: 300 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Crystal-Run

Model Number:

JR-G9648A

Contact Supplier Request Quote Chat Now

Crystal-Run Microelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Crystal-Run

Model Number JR-G9648A

Type Graphic

Specifications

96x48 Graphic Display Dots lcd module
1.FSTN,BLUE, 8.5V DC, NONE backlight
2COG/ST7565R
3 easy to install
4 fast delivery

96x16 Graphic Display Dots lcd module

1Resolution:96x16
2 parallel interface
3View Area17.4x8.37
4Display mode:FSTN,Negative

DISPLAY CHARACTERISTICS

item	Value
LCD Display Mode	FSTN Negative,Transmissive
View Angle	6:00
Driving Method	1/65Duty,1/9Bias, 8.5V
Backlight	NONE

MECHANICAL DATA

item	Value
Outline(mm)	19.4 x 17.4x0.55
Viewing Area(mm)	17.4x10.9
Active Area(mm)	16.3x8.37
Dot Pitch(mm)	0.15 x0.15
Dot Size(mm)	0.17x0.17

ABSOLUTE MAXIMUM

item	Value
Operation Voltage(v)	0-8.5
Operation temperature	-10-60°C
Storage Temperature	-20-70°C

Package and delivery details:

Packaging Detail:	our company standard
Delivery Detail	20-25 days after the order released

operations

1 It is essencial to drive the lcd with the specified voltage limits ,since a higher driving voltage than allowed causes a shorter lcd liftime.

2 The response time of the lcd fluid is considerably longer at low temperature than in the normal operting temperature range .On the other hand ,the lcd will show a dark blue colour at high temperatures .Those phenomena do not indicate a malfunction or defect of the lcd .Back at normal temperature ,the lcd will return to its original behavior .

Our company has build up more than 5 years .With thesed years' effort ,we have made much progress in all area ,incluing technologh and manage.You can see our workshop with neat and in order ,workers are working carefully. More information:
