Specifications
stn graphic monochrome lcd display:1. fast delivery
2. reasonable price
3. best quality
4. good service

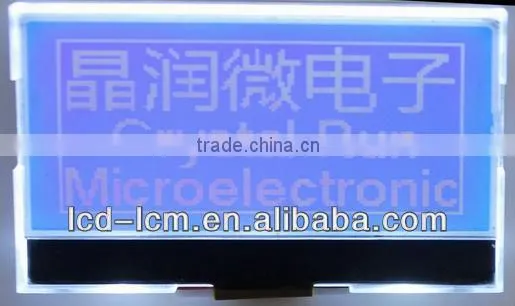

stn graphic monochrome lcd module:
DISPLAY CHARACTERISTICS
| ITEM | DESCRIPTION |
| LCD Display Mode | STN Negative,Transmissive |
| View Angle | 6:00 |
| Driving Method | 1/64 duty, 1/9 bias |
| Backlight | Y-G |
MECHANICAL DATA
| ITEM | DESCRIPTION |
| Outline(mm) | 52X41 |
| Viewing Area(mm) | 43.7x30.4 |
| Active Area(mm) | 40.77*24.45 |
| Dot Pitch(mm) | 0.50 x0.50 |
| Dot Size(mm) | 0.4 x0.46 |
ABSOLUTE MAXIMUM
| ITEM | DESCRIPTION |
| Operation Voltage(v) | VLCD:12.0V |
| Operation temperature | -20-70°C |
| Storage Temperature | -30-80°C |
Package and delivery details:
Packaging Detail: |
our company standard |
Delivery Detail |
25 to 30 days after the order released |
operations
1 It is essencial to drive the lcd with the specified voltage limits ,since a higher driving voltage than allowed causes a shorter lcd liftime.
2 The response time of the lcd liquid is considerably longer at low temperature than in the normal operting temperature range .On the other hand ,the lcd will show a dark blue colour at high temperatures .Those phenomena do not indicate a malfunction or defect of the lcd. Back at normal temperature ,the lcd will return to its original behavior .
Competitive advantages :
1 reasonable price
2 ROHS compliant
3 sample available as request
4 long life span : 10 years
Our company has build up more than 6 years .With thesed years' effort ,we have made much progress in this field, including technology and management. More information:
