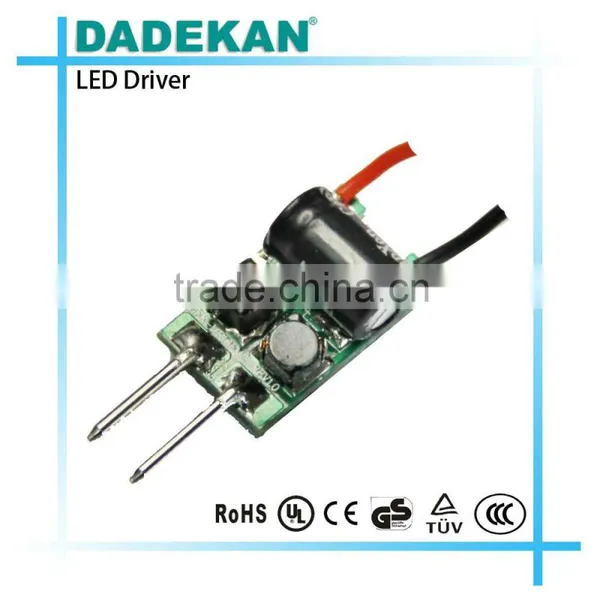

Product Name: MR16 LED Driver Supply
MODEL |
MR16-03E2037AD |
||||
|
Input
|
Input Voltage |
12VAC/12VDC |
|||
Voltage Range |
12VAC/12VDC |
||||
Start-up Voltage(-25~70℃) |
12VAC/12VAC |
||||
Frequency Range |
60Hz |
||||
Power Factor(@25℃) |
/ |
||||
AC Current (@25℃) |
0.037A Max. |
||||
Inrush Current (@ 25℃) |
10A Max. |
||||
|
Output
|
Output Voltage Range |
9V~10.5V |
|||
Output Current |
370mA |
||||
Output Power |
3~5W |
||||
Conversion Efficiency (@25℃) |
85% @12VDC, Full Load |
||||
No-load Output Voltage |
18V Max. |
||||
Line Regulation (@-25~70℃) |
±5% |
||||
Accuracy Constant(@-25~70℃) |
±5% |
||||
Set-up Time(@25℃) |
<1S@12VDC |
||||
Temperature Coefficient(@-25~70℃) |
±0.03%/℃ |
||||
Overshoot (@-25~70℃) |
±5% No-load Rated Voltage |
||||
Output Ripple & Noise |
0<Ta≤70℃ |
1000mVP-P |
|||
-25≤Ta≤0℃ |
2500mVP-P |
||||
|
Protection (-25~70℃)
|
Input Electrical |
Low Voltage Protection |
/ |
||
Over Voltage Protection |
/ |
||||
Output Electrical |
Shorted Circuit Protection |
Hiccup, Auto Recovery |
|||
No-load Protection |
Constant Voltage |
||||
Over Temperature Protection |
/ |
||||
|
Environmental Requirement
|
Vibration |
10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z, axes |
|||
Impact |
20G/11mS pulse,3times at each X, Y, Z axes |
||||
Storage Temp. & Hum. |
-40℃~85℃; 10%~95%RH No condensing |
||||
Operating amb. Temp. & Hum. |
-40℃~60℃; 20%~90%RH No condensing |
||||
Altitude |
3000m |
||||
IPX |
/ |
||||
EMC |
Isolation Resistance |
/ |
|||
Withstand Voltage |
/ |
||||
Ground Impedance |
/ |
||||
Safety Standards |
IEC 61347-2-13/GB19510.14/UL8750 |
||||
EMI |
CE |
EN55015 Class B/FCC Part15 B |
|||
RE |
EN55015 Class B/FCC Part15 B |
||||
Harmonic Current |
EN6100-3-2, Class C |
||||
EMS |
CS |
/ |
|||
RS |
/ |
||||
ESD |
/ |
||||
SURGE |
/ |
||||
Power Frequency Harassment |
/ |
||||
EFT |
/ |
||||
Other |
Dimensions (L * W * H) |
23.1mm X 13.7mm X 12mm;±1mm |
|||
Weight |
4g;±1g |
||||
Package |
/ |
||||
Cooling Method |
Ventilation Cooling |
||||
Reliability |
Burn-in |
The power supply shall go a minimum of 4 Hours burn-in test under full load condition. |
|||
Design MTBF |
50,000Hrs @25℃, MIL-HDBK-217 Method 2 Components Stress Method |
||||
Design electrolytic capacitor life |
17520Hrs @50℃ Full load and units continuously working |
||||
Note |
1. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 2. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 ℃. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
||||
|
Minimum Negative Load Requirements |
None |
||||
Accessories |
/ |
||||
