plastic dimmable led driver
1. Supply DEK-CI45B LED Light Driver LED Switching Power Supply.
2. External LED Driver with mounted hole, easy to be mounted.
3. Efficiency=88%.
4. PF=0.9.
5. Output Voltage Range 27-42V
6. Output Current Range 760~1200ma
7. Quick start, <500ms at 220V; <1S at 100V.

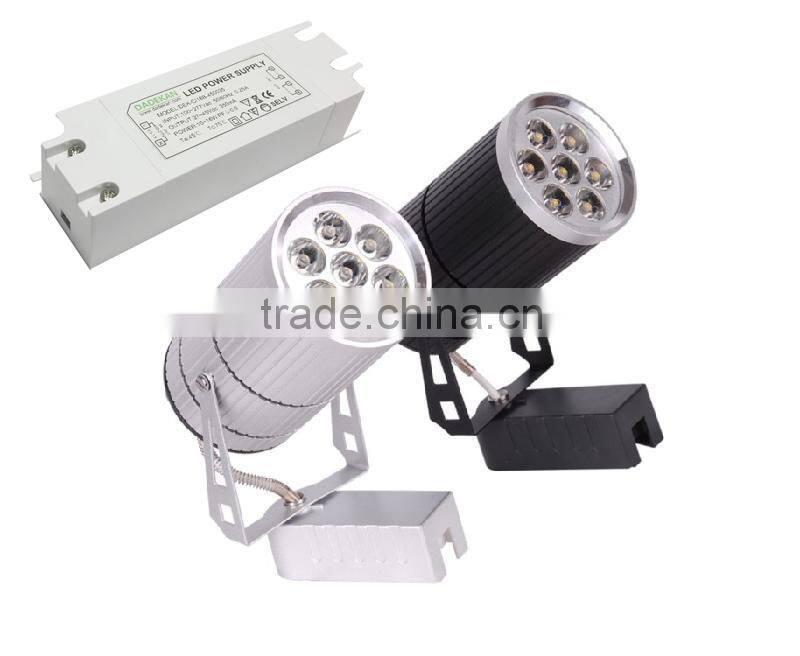

8. Application LED ceiling light, led spot light, led panel light
9. 100% burn-in tested before shipment
10. 3 years warranty.
11. Lead Time 7~15 days
12. Excellent performance on dimming capacity.
Item No |
DEK-CI45B |
|
Type |
Constant Current |
|
Structure |
External isolated dimmable |
|
Input Voltage |
AC 100-240V |
|
Output Voltage |
27-42V |
|
Output Current |
760~1200ma |
|
Output Power |
45W LEVEL |
|
Power Factor |
0.9 |
|
Efficiency |
0.88 |
|
Current Accuracy |
±5% |
|
Working Tem |
from-10°C to 45°C |
|
Protection |
Short circuit/over current/over voltage |
|
Dimension |
L145*W42*H29mm |
|
MOQ |
300pcs |
|
Warranty |
3 years |
Model |
Power |
Size(mm) |
Input Voltage |
Output |
Output Current |
Current Accuracy |
Efficiency |
PF |
DEK-CI16B |
16W |
L120*W40*H27 |
100~277V |
27~45V |
200~350mA |
±5% |
84% |
0.9 |
14~29V |
200~500mA |
84% |
||||||
DEK-CI25B |
25W |
L120*W40*H27 |
100~277V |
27~45V |
360~550mA |
±5% |
86% |
0.9 |
14~29V |
500~750mA |
86% |
0.9 |
|||||
DEK-CI35B |
35W |
L145*W42*H29 |
100~277V |
27~45V |
560~750mA |
±5% |
87% |
0.9 |
DEK-CI45B |
45W |
L145*W42*H29 |
100~277V |
27~42v |
760~1200mA |
±5% |
88% |
0.9 |
Why choosing DADEKAN LED Power Supply
1. 30 R&D staffs with more than 5 years experience in LED driver development.
2. All products are made with strict ISO system, 100% Burn-in tested.
3. Inquiry Replied within 12 hours.
4. Sample delivered in 1-3 days, batch product delivered in 3-15 days.
t8 led tube driver led bulb driver Ultra slim led driver End cap led driver
Waterproof external led driver KC Certified led driver 700ma led bulb driver
As for more details, please feel free to contact us!
