Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > DALI LED DRIVER

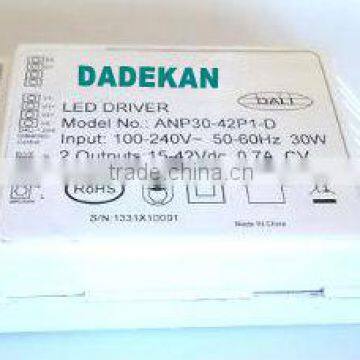

DALI LED DRIVER
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DADEKAN
Model Number:
ANP40-42P1-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
DADEKAN
Model Number
ANP40-42P1-D
Output Power
Other, 30W
Output Type
Dual
Input Voltage
Other, 90 - 264Vac
Output Voltage
15~42V
Output Frequency
47 - 63Hz
| INPUT | |
| Input Voltage Range | 90 - 264Vac |
| Rating Input Voltage Range | 100 - 240Vac |
| Frequency | 47 - 63Hz |
| Input Current | Max. 1.0A @ 120Vac / 60Hz, full load |
| Inrush Current | 80A @ 230Vac input/ 50Hz, full load |
| Efficiency | 85% typical @ full load, input 230Vac |
| Power Factor | ≥0.9 at full load 264Vac/50Hz |
| Leakage Current | 0.5mA max. @230Vac |
| OUTPUT | |
| Out Current | See Table1 |
| Short Circuit Protection | Shutdown |
| Ripple and Noise | <10% of Voutput |
| OCP protection | <130% Iout |
| Over Temperature Protection | 85°C max. for case temperature |
| Over Voltage Protection | < 130% nominal voltage |
| Start-up Time | < 2 Sec. |
| Dimming Control: | DALI control,Iout=0%-100% adjustable |
| Isolation Voltage | 3KV AC, AC-DC | |||
| Surge | EN61000-4-5, level3 | |||
| Weight | 300g max. | |||
| Warranty Info | 5 years | |||
| MTBF | 100,000 Hours at 25ºC | |||
| Environmental | ||||
| Operating Temp | -20°C to +60°C full load | |||
| Derating Temp | +70°C at 50% load | |||
| Storage Temp | -40°C to +85°C | |||
| Relative Humidity | 10% to 95% non-condensing | |||
| Cooling | Free air convection | |||
| MTBF | 100,000 Hrs at 25°C | |||
| Ingress Protection: | IP20 | |||
| RoHS | Compliant | |||
