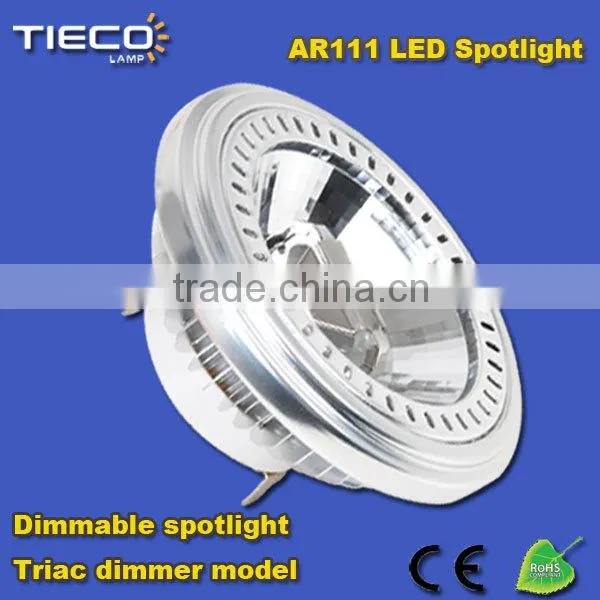

CE ROHS traic dimmer 12w ar111 g53 led

Specifications

CE ROHS traic dimmer 12w ar111 g53 led:
1)12W 2)AC/DC12V 3)Interior
4)Dimmable 5)CE ROHS
6)Replace 60w halogen lamp

CE ROHS traic dimmer 12w  ar111 g53 led Specification:





Model:	LS11-12WS1D
LED Brand:	Epistar
Power Consumption:	12W
Working Voltage:	AC/DC12V
Materials:	Aluminum &  PC Reflector
Base Type:	AR111
Size:	(D) 111X63mm
Environment Temperature:	-10°C - 45°C
Housing Temperature:	<63 °C
Lumen flux:	500LM
Light Color Temp.:	WW 2700-3200K
	NW 4000-4500K
	CW 6000-6500K
CRI:	>80min
Approved:	CE, RoHS,
Beam angle:	20°
Lifespan:	>30,000 Hours
Lifetime(when using 5hours per day)	15years
Warranty:	2 Year
Number of switching cycles	20,000







CE ROHS traic dimmer 12w  ar111 g53 led Advantage:



















1) Can directly replace 60W halogen bulb and save enrgy about 70%.



2) CE,ROHS approval with 2years warranty.



3)High quality external current driver to lown down cost of the replacement and ensure the lamp long lifespan.



4) Proprietary design for excellent thermal management with aluminum housing.



5) Reflector: special design improve the light efficiency and reduced the loss of light.



6) Green and Environment protection: No facluar,No Ghosting,No flicker,No UV,IR, Halide and other harmful substance.













Individual Net Weight	230g
Packaging quantity(PCS/CARTON)	60pcs
Net Weight(kg/Carton)	14kg
Gross Weight(Kg/Carton)	15kgs
Outer Packing Carton	57.5*46*30cm







CE ROHS traic dimmer 12w  ar111 g53 led Delivery time

30 work days after receiving the deposit

(it usually depends on the quantity of order)











CE ROHS traic dimmer 12w  ar111 g53 led Application



1. Widely used in fair lighting and exhibition stands

2. Cabinet and under counter lighting, recessed lighting, shelf lighting

3. Ceiling/wall coves light, supermarket and hotel decorated lighting
