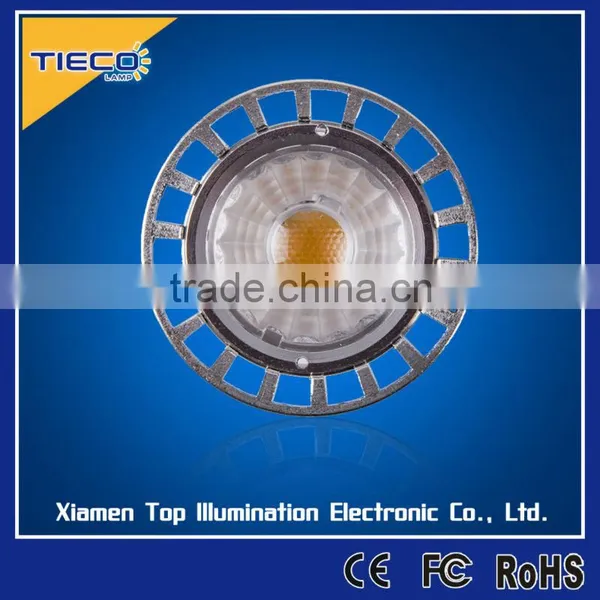

High Quality Wall Mounted Spotlight
US$ 1 - 5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Sharp
Warranty(Years):
2
Input Voltage(V):
AC/DC12V
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 New Product Led Bulb Spotlights Factory PriceUS$ 1 - 5MOQ: 1000 Pieces -
Factory Wholesales Led Lamp Ar111 G53 230vUS$ 11.2 - 12.9MOQ: 100 Pieces
-
Best Price per Watt Led Lamp Ar111 G53 230vUS$ 11.2 - 12.9MOQ: 100 Pieces
-
Heatsink Dimmable Led Ar111 Dimmable Led LampUS$ 11.2 - 12.9MOQ: 100 Pieces
-
Popular&high Quality 12w G53 Led Ar111US$ 11.2 - 12.9MOQ: 100 Pieces
LED Light Source
Sharp
Warranty(Years)
2
Input Voltage(V)
AC/DC12V
Lamp Power(W)
4.5
Lamp Luminous Flux(lm)
300
Lamp Luminous Efficiency(lm/w)
60
Color Temperature(CCT)
Other, 2700K-6000K
Working Temperature(℃)
-40, 60
Working Lifetime(Hour)
35000
Lamp Body Material
Aluminum
Certification
CE, EMC, LVD
Base Type
GU5.3
Place of Origin
Fujian, China
Brand Name
TIECO
Model Number
LS16-05WS2
Specifications
High quality wall mounted spotlight1.Certificates: CE
2.Good Quality
3.New arrival and new design
Product Description
High quality wall mounted spotlight
1.Certificates: CE
2.Good Quality
3.New arrival and new design
4.Materia:PMMA
|
|
Xiamen Top Illumination Electronic Co.,Ltd | |||||
| Product Specification | ||||||
| Model No.: | LS16-05WS2 | |||||
| Spare Parts | LED | LED Chip Brand: | Sharp | |||
| LED quantity: | 1 pcs (COB Series) | |||||
| Current: | 380mA | |||||
| Voltage: | 10.4V | |||||
| Luminous Flux: | 326 lm/pc | |||||
| Optical Lens (Cover) | Material: | PMMA | ||||
| Cover: | Clear | |||||
| Efficiency: | 93% | |||||
| Power supply | Operation Mode: | Non-Isolated | ||||
| Current precision: | <8% | |||||
| Efficiency: | >80 % | |||||
| Dimmable | Non-Dim | |||||
| Type of Dimmer | NA | |||||
| Range of Dimmable | NA | |||||
| Housing | Material: | Aluminum | ||||
| Luminaire Characteristics | Electrical Characteristics | Operating Voltage: | AC/DC | |||
| 12V | ||||||
| Wattage: | 4.5W | |||||
| Power Factor: | 1 | |||||
| Photometric Characteristics | Luminous Flux: | 230 lm min | ||||
| SDCM | <6 | |||||
| CRI: | 83 Ra min | |||||
| CCT: | 2700 - 6000 K | |||||
| Beam Angle: | 38° | |||||
| Mechanical Characteristics | IP Rating: | IP44 | ||||
| Housing Temperature: | 55 °C | |||||
| *Ts: | 60 °C | |||||
| *RθJS: | 11.9 °C/W | |||||
| Others | Certificate: | CE | ||||
| Warranty: | 2 yrs | |||||
| Lifespan: | 35,000 hours | |||||
Because the spotlight usually be used as accent light, it needs a good performance at CRI.
In addition, the heat dissipation is very import for LED. In order to get a good lifespan,
we know ceramic wafer is better than aluminum plate.
Considering the key point as above, TIECO spotlight series adopt SHARP chip to satisfy requires.
Packaging & Shipping
Firm package for delivery: Stronger cartons and plastic pallet, suitable for long distance
transportation and convenient for your local pick-up;
| Package | Inner Box | Inner Box: | Color Box | |||
| Inner Box Size: | 50mmX50mmX77mm | |||||
| Carton | Color: | Brown | ||||
| Carton Size | 542mm*375mm*282mm Volume 0.0573 m³ | |||||
| Quantity: | 200 pcs/carton | |||||
| Weight | G.W | 12.3 KG | ||||
| N.W | 9.8 KG | |||||
