Best dimmable led suspended ceiling spot lights

Specifications

Super brightness 2014 smd led spot lights
1.Certificates: CE
2.Good Quality
3.Dimmable



       Best dimmable led suspended ceiling spot lights
        1.Certificates: CE
        2.Good Quality
        3.New arrival and new design
        4.Materia:PMMA

	Xiamen Top Illumination Electronic Co.,Ltd
	Product Specification

Model No.:	LS10-05WS2D
Spare Parts	LED	LED Chip Brand:	Sharp
		LED quantity:	1  pcs (COB Series)
		Current:	380mA
		Voltage:	10.4V
		Luminous Flux:	326  lm/pc
	Optical Lens (Cover)	Material:	PMMA
		Cover:	Clear
		Efficiency:	93%
	Power supply	Operation Mode:	Non-Isolated
		Current precision:	<8%
		Efficiency:	>80 %
		Dimmable	Dimmable
		Type of Dimmer	Traic
		Range of Dimmable	10%-100%
	Housing	Material:	Aluminum
Luminaire Characteristics	Electrical Characteristics	Operating Voltage:	AC
			220V-240V
		Wattage:	4.5W
		Power Factor:	>0.5
	Photometric Characteristics	Luminous Flux:	230  lm min
		SDCM	<6
		CRI:	83  Ra min
		CCT:	2700   -  6000 K
		Beam Angle:	38°
	Mechanical Characteristics	IP Rating:	IP44
		Housing Temperature:	55 °C
		*Ts:	60 °C
		*RθJS:	11.9 °C/W
	Others	Certificate:	CE
		Warranty:	2 yrs
		Lifespan:	35,000  hours

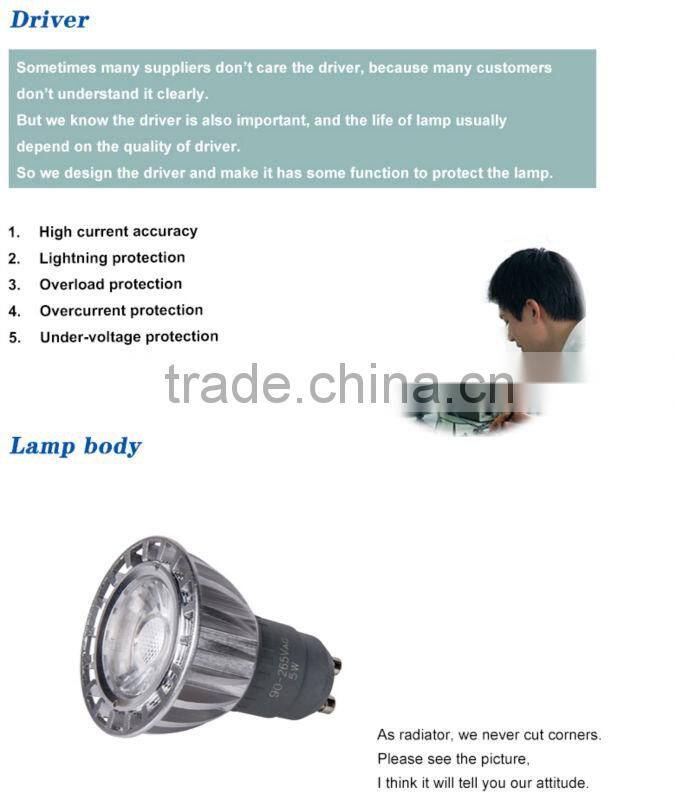

         Because the spotlight usually be used as accent light, it needs a good performance at CRI.

       In addition, the heat dissipation is very import for LED. In order to get a good lifespan,

       we know ceramic wafer is better than aluminum plate.

       Considering the key point as above, TIECO spotlight series adopt SHARP chip to satisfy requires.





      Firm package for delivery: Stronger cartons and plastic pallet, suitable for long distance

      transportation and convenient for your local pick-up;

Package	Inner Box	Inner Box:	Color Box
		Inner Box Size:	50mmX50mmX77mm
	Carton	Color:	Brown
		Carton Size	542mm*375mm*282mm    Volume  0.0573  m³
		Quantity:	200   pcs/carton
	Weight	G.W	16.6  KG
		N.W	11.2  KG
