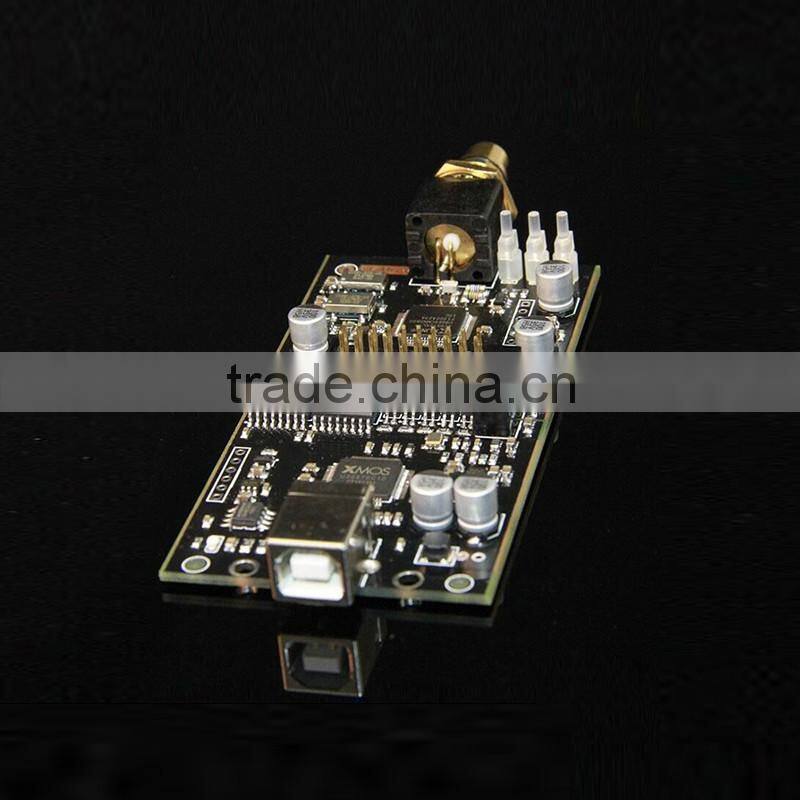

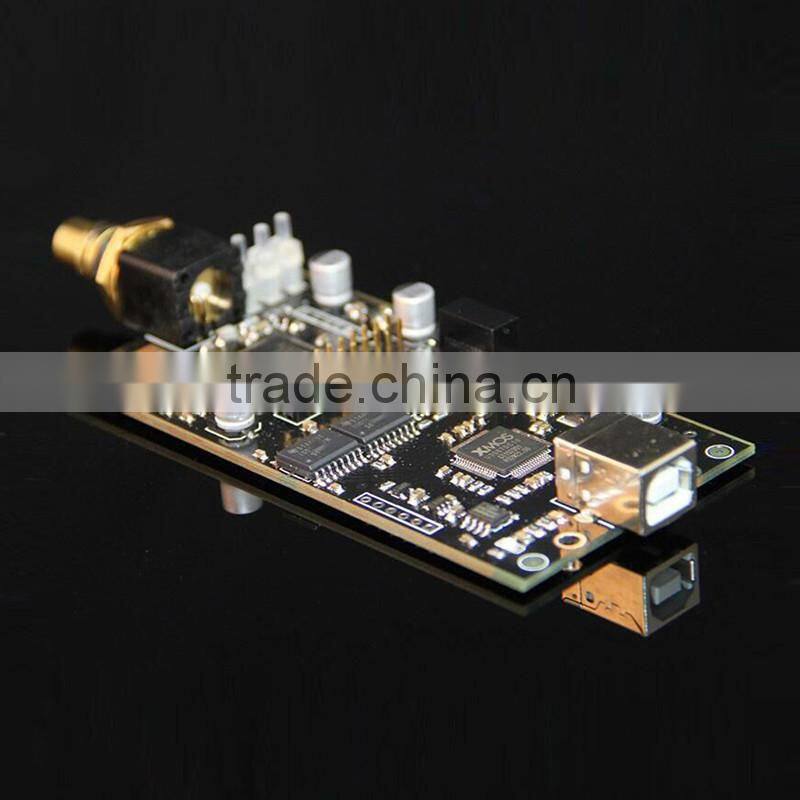

Singxer F-1 XMOS USB digital interface board,XU208 chip,High end U8 upgraded version
Please contact us to get the driver
Product Description:
F-1 digital interface,our team develop a high-performance USB digital audio interface, using the XMOS latest xCORE-200 series chips.F-1 use low jitter clock system digital interface. F-1 digital interface using standard USB2.0 input interface, while F-1 has many kinds of output interfaces, including coaxial RCA and I2S interfaces.
The new generation XOMS chip of XU208,using more advanced process technology,performance than the older U8 chip doubled, reaching 1000MIPS processing capabilities.
1.F-1 is the first use of XMOS latest xCORE-200 series USB interface digital products. New generation XMOS chip,using more advanced process technology, performance than the older U8 chip doubled,reaching 1000MIPS processing capabilities.
2.It is known that the core of the algorithm is heavy digital audio.Our team in the field of digital audio work for many years, at the same time get XMOS FAE support team, we conducted a number of technical improvements and optimization algorithms on the basis of the original firmware.
Specifications:
Each output interface supports sample rates:
PCM: 44.1KHz,48KHz,88.2KHz,96KHz,
176.4KHz, 192KHz,352.8KHz,384KHz
Wherein I2S out support full sample rate,S/PDIF supports up to 192KHz
DSD:
2.8 MHz (DSD64) - DoP,native
5.6 MHz (DSD128) - DoP,native
11.2 MHz (DSD256) - native
Wherein I2S out support all DSD format,S/PDIF and AES/EBU support DSD64 DOP mode
Bits wide:
the highest 32 bit over I2S output
The highest 24 bit over S/PDIF
Screw position,I2S is compatible with Amanero board.
Use three crystal oscillators,they are all active crystal oscillators,and the audio crystal oscillators is CRYSTEK CCHD.
Each interface electrical standards:
1.USB input socket is a standard USB-B type female, USB power supply range 4.5V-5.1V ;
2.RCA connector outputs standard S/PDIF Electricity level is 550mV(standard connection load),the output impedance of 75 ohms.

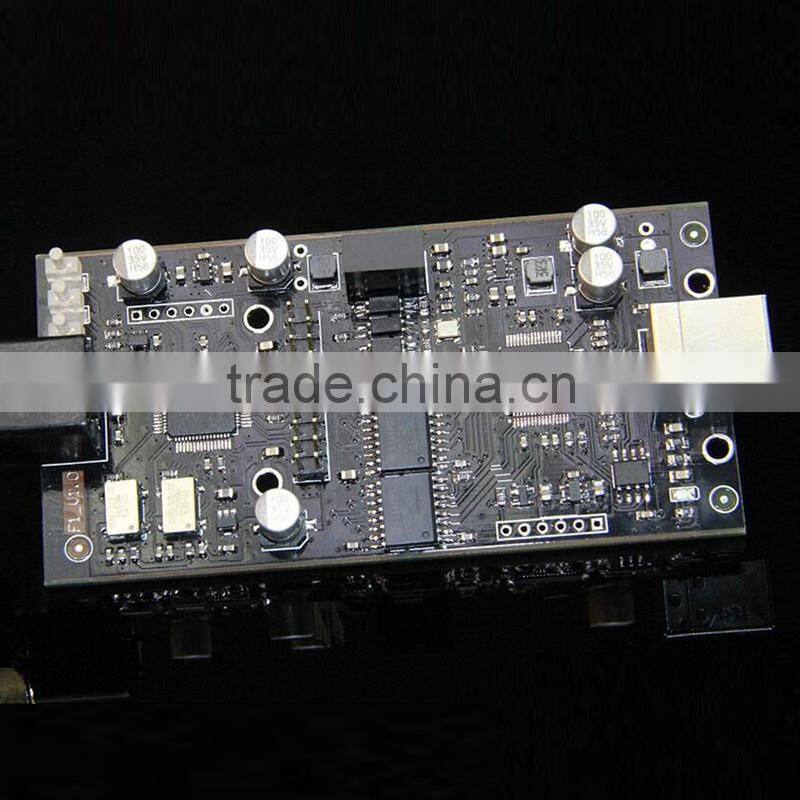

Design details:
1. Carry out electricity as the mother of the acoustic design concept,pay attention to the power supply circuit design,high-performance,low noise and fast response of the LDO as the main power source.The entire board with a 2-way independent LDO for power supply,part of the clock use ADI's ultra low noise LDO,in order to ensure the ultimate performance.
2. PCB motherboard with 4-layer circuit board design,make sure you have a complete ground plane and power planes,high-speed digital design methods to ensure signal integrity and power integrity of the entire board.The clock signal with a special pocessing,the use of package design and precise impedance control,thereby ensuring the signal quality and increase the clock anti-jamming capability.Input and output signals follow standard design,especially USB high speed signals using a 90 ohm differential impedance control.
System compatible:
1:Windows XP,Windows 7,Windows 8;32/64 bit,need install driver
2:Native MacOS 10.6 and later,use own driver
3:Native Linux with UAC2 compliant kernel,use own driver
4:Android OS 4.2 and above,need support OTG function

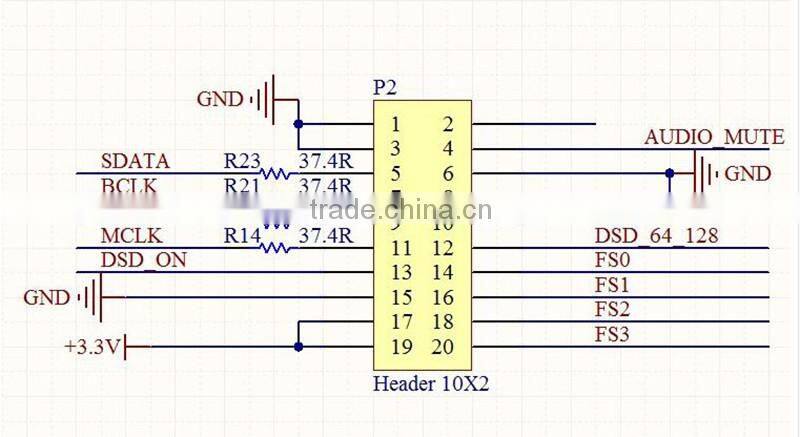

The instruction of I2S output signal scoket:
1.It is High dB mute(DSD ON is DSD data stream)
2.All dB is LVCMOS,Voltage is 3.3V.
3.VD3.3 is output supply,and output electric current 50mA
4.MCLK output 22.5792Mhz or 24.576Mhz clock
5.FS0,FS1,FS2 is sample dB,FS3 not.
6.LRCLK =DSDR,SDATA=DSDL,BCLK=DCLK

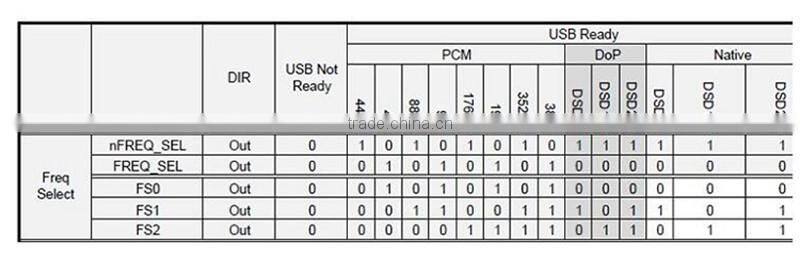

FS0,FS1,FS2 Frequency select as following:

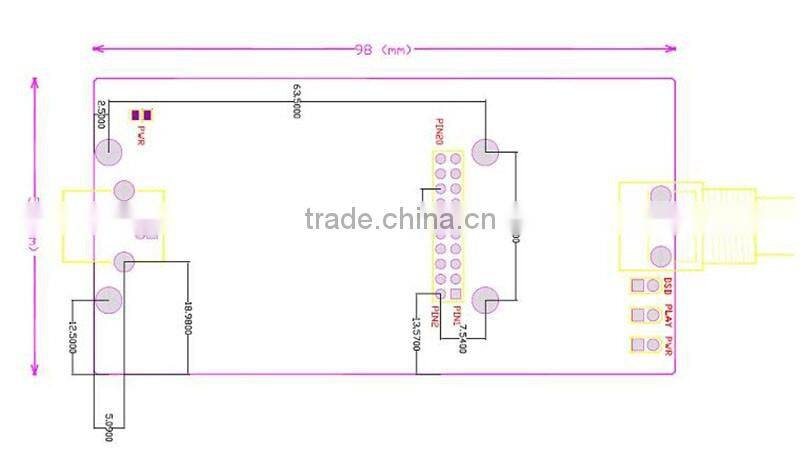

The size of F-1
1.Voltage
Can you change the voltage and plug?Our voltage is 110V or 220V,and our plug is EU,US or others.
Yes,we will change the voltage and plug according to your shipping address.
2.RMA
Hi seller,I bought one device from your shop before,but it is broken now under warranty,can you help me repair it?
Yes,please send the defective device or wrong device to our Chinese address(please contact our salesman).
Once we received it,we will send you the new replacement or refund immediately.
3.Warranty
I bought your product 7 years ago,but it's broken now,can you repair it?
Oh...Dear friend,our warranty is 1 year,would you like have a try of the newest one?
4.Samples
Hi,man,I love your products too much,can you send me an exsiting sample to test?I will place big order in future.
Hi,my friend,we can send you an existing sample,and the sample charge is lower than the retail price,if you need custom products,please contact our salesman.
5.Shenzhen Shop
Hi,brother,I am going to Shenzhen,China,can I visit your shop?
Yes,my friend,welcome to our shop,you can have a try of your favorite devices,and it would be better if you could inform me in advance,so I can prepare for your needed devices.
Shop address: 4F9,No.3018,Gume,Wanshang Electric City,Huaqiang north road,Futian zone.Shenzhen,China.
