Automatic spray paint machine/Spray paint machine/Automatic Spraying Machine for Door

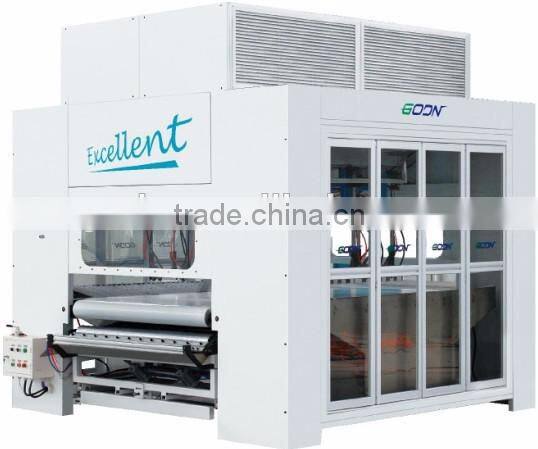

1.Automatic Spraying Machine SPM1300
| Model | SPM1300 |
| Max.Spraying Width | 1300mm |
| Max.Thichness of Work Piece | 50mm |
| Spraying Gun | 8 pcs |
| Air Pressure | 0.5-0.8Mpa |
| Total Power | 14.5Kw |
| Overall Dimension | 4800*6700*2500mm |
| Weight | 2000Kg |
| Certificate | CE |

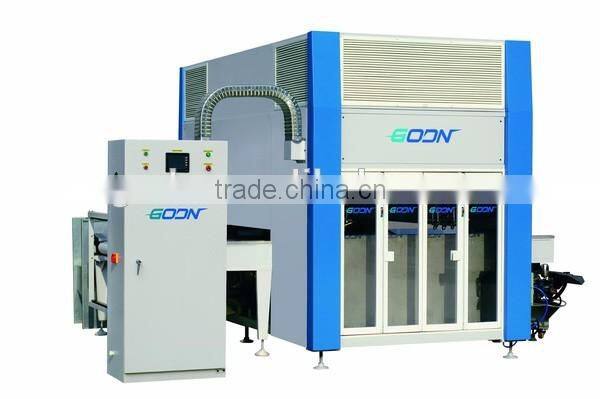

2.Automatic Rotary Spraying Machine SPR1300
| Model | SPR1300 |
| Max. Spraying Width | 1300mm |
| Max. Spraying Thickness | 100mm |
| Dia. of Spraying Head Circumrotation | 1800mm |
| Feeding Speed | 0-8.8m/min |
| No. of Spraying Head | 8pcs |
| Total Power | 8.8kw |
| Working Pressure | 0.5-0.8Mpa |
| Overall Dimension | 5700*5300*3200mm |
| Weight | 2500kgs |

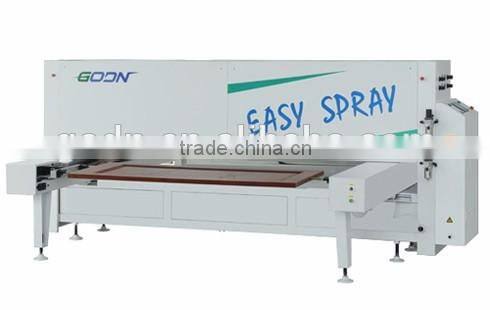

3.Automatic Spraying Machine For Door(Base type)SPD2500A
| Model | SPD2500A |
| Max. Spraying size | 2500*1200*80mm |
| Max. Weight Of Door | 70 KG |
| Feeding Speed | 0-8m/min |
| Gun Reciprocate Speed | 0-100m/min |
| Air Pressure | 0.5-0.8 Mpa |
| Total Power | 1.5 Kw |
| Overall dimension | 4500*3800*1800mm |
| Weight | 1200 Kg |

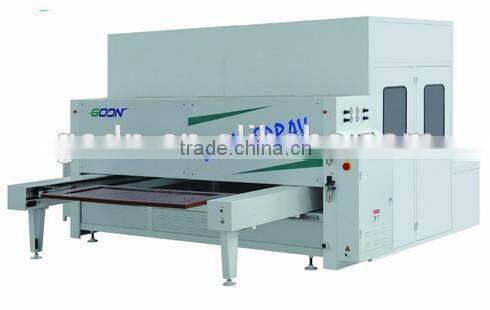

4.Automatic Spraying Machine For Door(Enhanced)SPD2500B
| Model | SPD2500B |
| Max. Spraying Size | 2500*1200*80mm |
| Max. Weight Of Door | 70 KG |
| Feeding Speed | 0-8m/min |
| Gun Reciprocate Speed | 0-100m/min |
| Air Pressure | 0.5-0.8 Mpa |
| Total Power | 6.4 Kw |
| Overall Dimension | 5660*4500*2580mm |
| Weight | 1600 Kg |

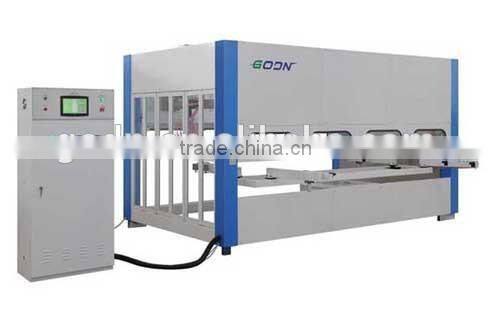

5.CNC Spraying Machine for Door SPD2500C
| Model | SPD2500C |
| ing size | 2400*1000*100mm |
| Gun working speed | 0~1.8m/s |
| Air pressure | 0.6mpa |
| Power | 3.5kw |
| Overall dimension | 4300*3250*2270mm |
| Weight | 2200kg |
6.Maishi Paint Spraying Machine SBM1300A
| Model | SBM1300A |
| Max. working width | 1300mm |
| Max. working thickness | 100mm |
| Max. feeding speed | 5.2m/min |
| Spraying gun | 4pcs |
| Air pressure | 0.5-0.8mpa |
| Total power | 7kw |
| Overall dimension | 4800*6000*3400mm |
| Weight | 2500kg |

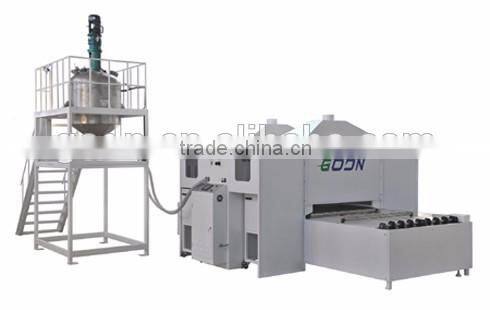

7.Fluorocarbon Paint Spraying Machine SPM1300FA
| Model | SPM1300FA |
| Max. Processing Width | 1300mm |
| Max. Processing Thickness | 100mm |
| Max. Feeding Speed | 5.2 m/min |
| Spraying Gun | 8 pcs |
| Air Pressure | 0.5-0.8Mpa |
| Total Power | 10 KW |
| Overall Dimension | 5580*6000*2500mm |
| Weight | 2000kg |

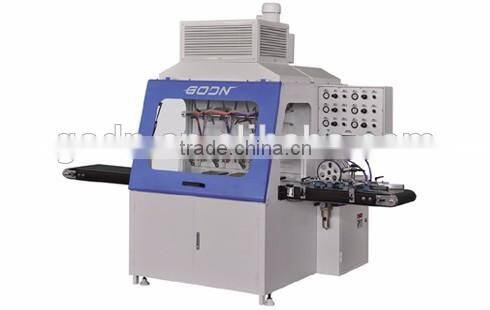

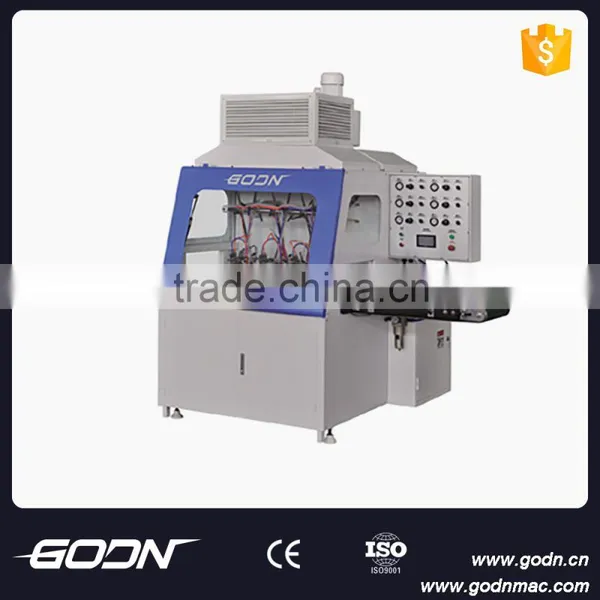

8.Automatic Profile Spraying Machine LSPM400/600
| Model | LSPM400 | LSPM600 |
| Processing width | 10-400mm | 10-600mm |
| Processing thickness | 10-100mm | 10-100mm |
| Min. working length | 700mm | 700mm |
| Feeding speed | 0-50m/min | 0-50m/min |
| Working spraying gun | 3-6pcs | 3-6pcs |
| Working pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Total power | 2.25kw | 2.25kw |
| Overall dimension | 3500*1700*2560mm | 3500*2000*2560mm |
| Weight | 1600kgs | 1800kgs |

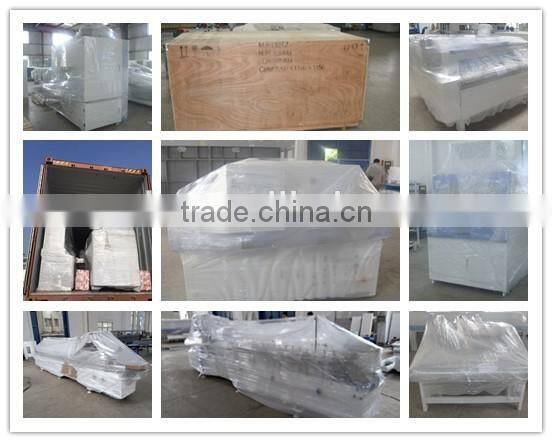

2 layers of plastic materials packaging.
What is Godn's advantage?
Our Services:
- We customize the products according to the customers’ requirements.
- Engineers avaliable to service machinery overseas.
- One-year warranty for whole machine except quick wear parts.
- 24 hours technical support by emails, calling or door to door service.
Related Certificates: We have a number of patented products:Rotary spray machine, Wooden hanger sander, Workpiece double-sided sprayer, Hanger painting machine and so on.
GODN mechanical technology Co., Ltd. is one of the outstanding woodworking machinery manufacturers in China, which supplies the first-class products and services to customers. Our company is one of the members of China Forestry Machinery Association, one of the members of China Association of Timber Circulation Professional Committee of the governing units of wooden doors, and one of the members of Qingdao Woodworking Machinery Association.
GODN Company has passed the international quality system certification of ISO9001-2000, achieved the certification of China Quality Supervision for Woodworking Machine and has been awarded CE certification for the main products & “21 Century China Woodworking Machine Famous brand ”.
GODN Company would like to cooperate with the dealers and manufacturers all over the world and establish a long-term reciprocal relationship. Facing new opportunities and challenges in the future, GODN people will insist on “ Quality, Brand, Innovation” stratagem in long term and try our best to provide perfect products and excellent services to you.
1, What's your warranty?
---In 12 months.
2, What's youe lead time?
---In 30 working days.
3, What's your delivery term?
---FOB Qingdao China usually, also can be CIF/DDU/DDP to your side if you need.
4, What's your payment term?
---30% T/T deposit, balance T/T payable before delivery after inspection.
