Specifications
Fiber jumper
1.SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000
2.0.9mm / 2.0mm / 3.0mm
3.SM/MM SX/DX

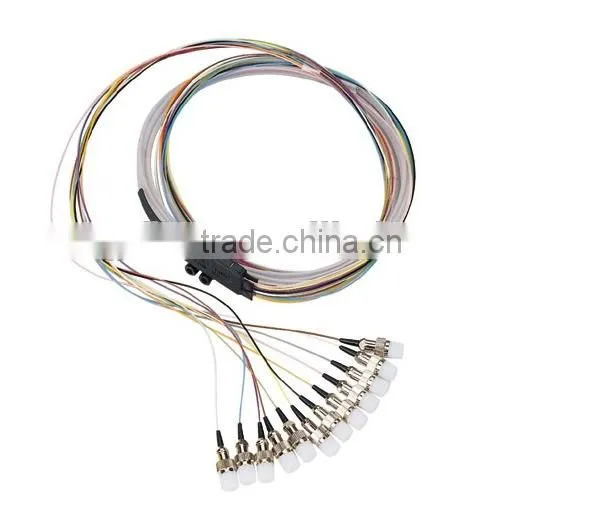

SC/UPC-ST/UPC Multimode Fiber Jumper And Pigtail
Technical specifications:
Pigtail Connector |
PC (SM) |
UPC (SM) |
APC (SM) |
MM |
Return Loss (dB) |
≥45 |
≥50 |
≥60 |
≥35 |
Insertion Loss (dB) |
≤0.2 (max≤0.3) |
|||
Repeatability (dB) |
≤0.1 |
|||
Durability(1/Matings) |
≥500 |
|||
Operation Temperature (°C) |
-25~+70 |
|||
Tensile Strength (N) |
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
|||
Fiber |
9/125um, 50/125um,62.5/125um,ect |
|||
diameter |
0.9mm 2.0mm, 3.0mm etc |
|||
Cable material |
PVC, LSZH |
|||
Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
|||
Features:
---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Applications:
Gigabit Ethernet; Active device termination; Telecommunication networks; Video;
Multimedia; Premise installations; Local area networks; FTTH FTTX applications; CATV.
