Singlemode single core armoured bundle fiber
Outline
Description

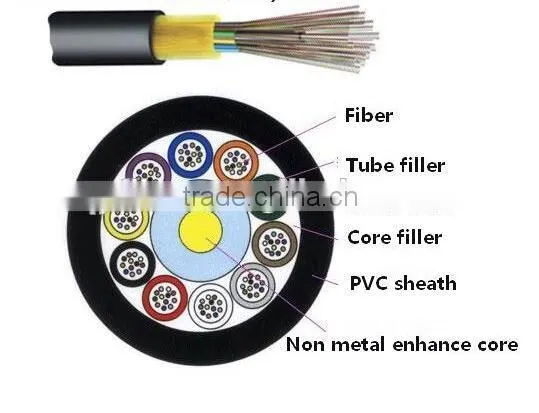

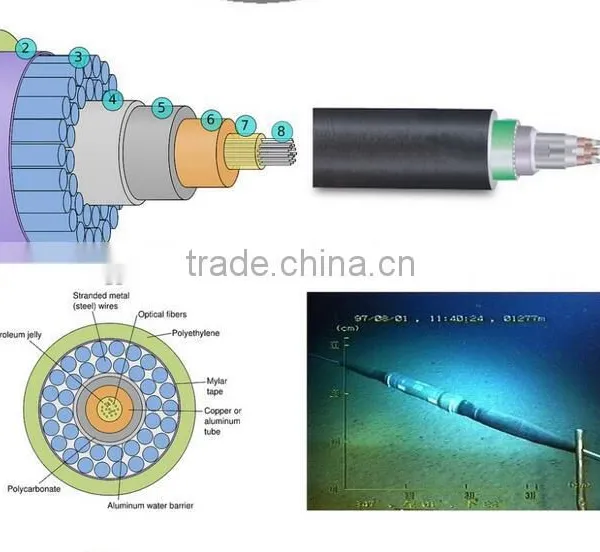

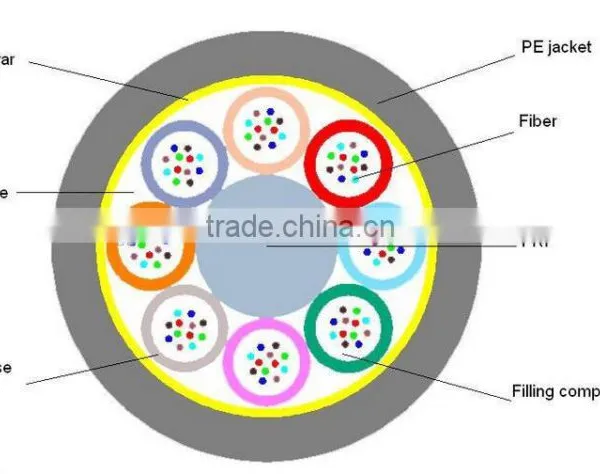

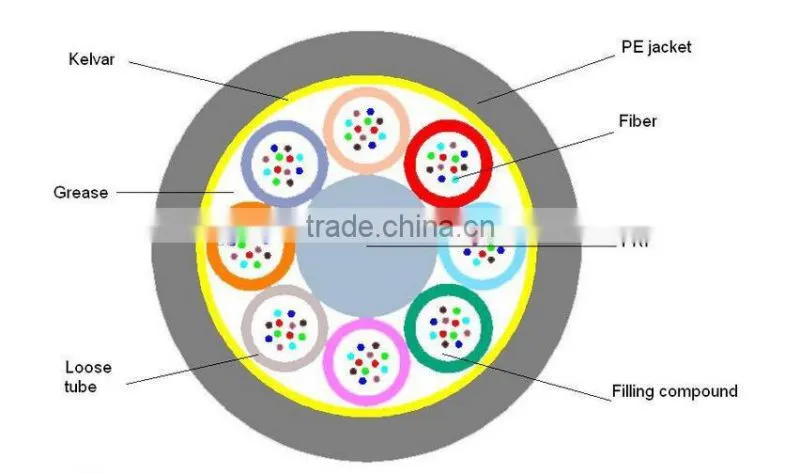

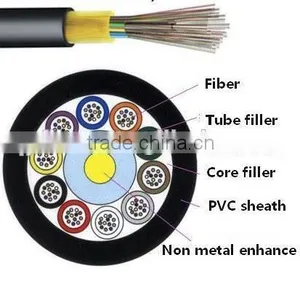

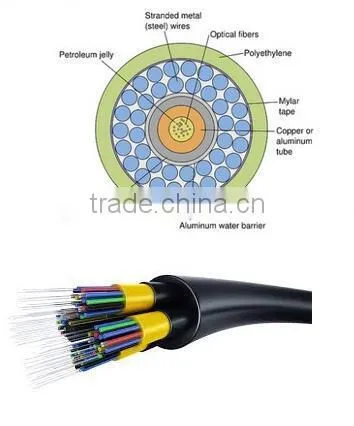

The fibers,250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethlene(PE) for cable with high fiber count, locates in the center od core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Features
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. The following measures are taken to ensure the cable watertight
7. Steel wire used as the central strength member
8. Loose tube filling compound
9. 100% cable core filling
10. APL moisture barrier
Application
Laying modes: Direct Buried
Long-distance communication, local trunk line, CATV & computer networks system
|
Fiber count |
Out sheath diameter |
Weight |
Minimum allowable Tensile Strength (N) |
Minimum allowable Crush Load |
Minimum Bending Radius (MM) |
Storage temperature |
|||
(mm) |
(kg) |
Shot term |
Long term |
Short term |
Long term |
Short term |
Long term |
℃ |
|
24 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
36 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
42 |
14.5 |
155 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
48 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
60 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
72 |
15.5 |
210 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
96 |
16.5 |
275 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
144 |
19.6 |
345 |
3000 |
1000 |
3000 |
1000 |
20D |
10D |
-40 ~+60 |
|
Fiber Sort
|
Multimode
|
G.651 |
A1a.50/125 |
Graded-index Fiber |
A1b.62.5/125 | ||||
|
Singlemode |
G.652(A,B,C) |
B1.1:Conventional fiber |
||
G.652.D |
B2:Zero dispersion shifted |
|||
G.655 |
B1.2:Cut-off wavelength shifted |
|||
G.657(A1,A2,B3) |
B4:Main technical data positive |
|||
Dispersion shifted single-mode fiber | ||||
|
Factory Scale: Total Area of: 8000 square meters Production Staff: 60 to 100 Factory history: 10 years |
Certificates: ISO9001:2000 SGS RoHS CE |
|
Logistics Ability: Arrange the Mixed logistical for Election delivery as By Air and By Sea, over 10 years’ experience for logistical arrange. | |
|
Features; Good uniformity and low insertion loss Low Polarization Dependent Loss Excellent Environmental Stability Excellent Mechanical Stability |
Delivery Time: Material Preparation Time: 3 days (or inventory) Production & Assembly Time 7 days Testing & Packaging Time: 2 days Total Delivery Time: 12 days in 20,000pcs for safe delivery lead time. The faster delivery could be negotiable. |
|
Applications: 1.Asynchronous Transmission Mode(ATM) Package for 100PCS : 2.Passive optical networks (PON) 3.Fiber to The Home (FTTH) Package dimensions : 46cm*33cm*23 CM 4.Local Area Networks (LAN) 5.Cable Television (CATV) 6.Test Equipment … … | |
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance aganist copy of BL, Western
Union.
Q 2. how's the delivery time ?
A. usually it will take about 10~15days for production
Q 3. tell me the standard of package?
A. For the small capacity, it uses carton.
