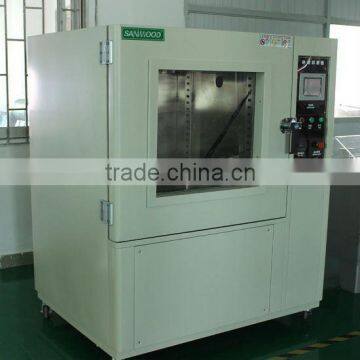

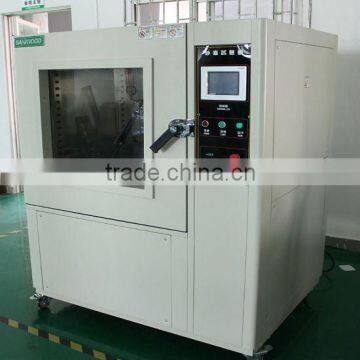

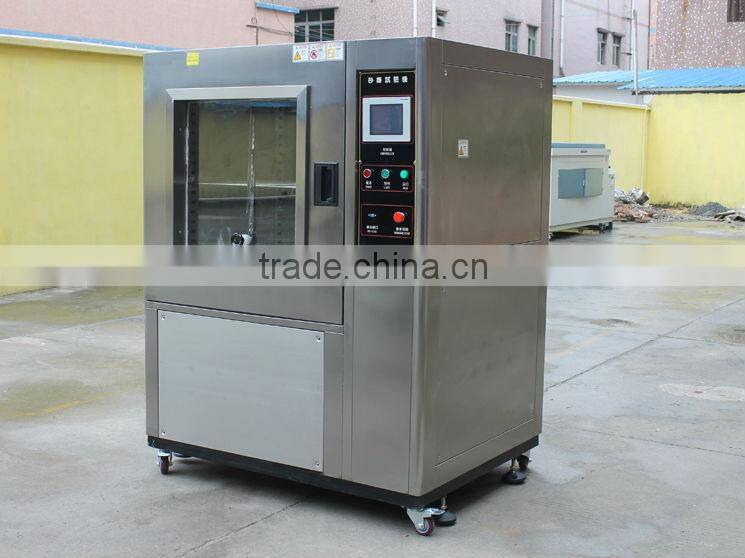

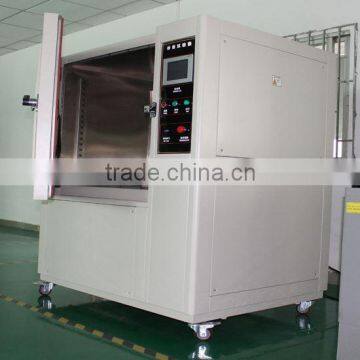

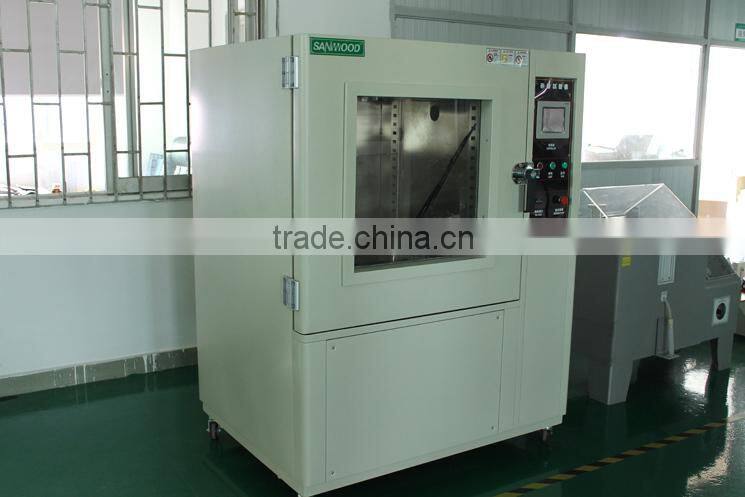

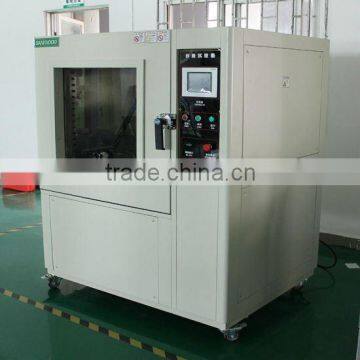

2 Zones Sand and Dust Test Chamber

Model

SM-SC-500C

Internal Size (MM)

800*800*800

Temp Range

RT +10~70C (need comment during order time)

Vibration Time

0 hour-999 hour (can be adjustable)

Test Time

0 hour-999 hour (can be adjustable)

Time Accuracy

±1min

Relative Humidity

45%~75%(can't display)

Standard Metal Wire Mesh

50 UM

Standard Spacing Between Lines

75 UM

Talcum Amount

2-4 kg/m

Standard Metal Mesh Diameter

75—100 um

Features 01

Inner container is made of  SUS304  stainless steel. Galvanized sheet shell with electrostatic spraying. Chamber door attached to the observation window, the lower part of the door to the electrical control area, simulated sand and dust of talcum powder hopper into the lower chamber.

Features 02

Using circulating fan and automatic make jar talc through 75 micron square hole mesh upper blowing studio, prompting the formation of high-density fog test the sample.

Features 03

Chosen time setting of continuous, periodic blowing dust is arbitrarily . With scraping dust visible glass door for easy observation test sample in test cabinets. Taiwan TAIAN time controller (SG2-10HR-A) control blowing dust , lighting and vibration cycle.

Test Solid

dry jar talc 2Kg/m

Cabinet Size

500L

Solid Diameter

1~10um (Granule OD≤5um takes 50% or more)

Voltage

220v/50Hz (equipped power interface)

Cabinet

Stainless steel with electrostatic spraying galvanized sheet shell

Door

Transparent glass door

Fan Motor

Low noise fan motor; Equipped with time controller

Dust falling Device

60W eccentric motor

Sample Holder

Stainless grille

Two Control Modes

Constant value / program

Sensor Type

PT100

Output Modes

PID control output / 4-20mA analog output (1-5V) / (0-10V) can be arbitrarily chosen;

Control Output Signal

a.8 way switch auxiliary control signal (IS, T, AL control signal);
b. Standard 10 switch signal relay output (optional 20 relay).

Temperature Measurement error ± 0.2 ℃

Special Features

Blowing dust, vibration, vacuum;

Communication Interface

(Optional RS232 / RS485, most long-distance communication 1.2km [fiber up to 30km]);

Interface Language Type

Chinese / English / Russian

Program Editor

You can edit the 120 set of programs, each program can edit the 100 largest segment;

Products show a clear intuitive, flexible program design control system easy to operate, stable performance and more efficient work.

Dimensions

1300 × 1100 × 1700 (mm) (L × W × H)
