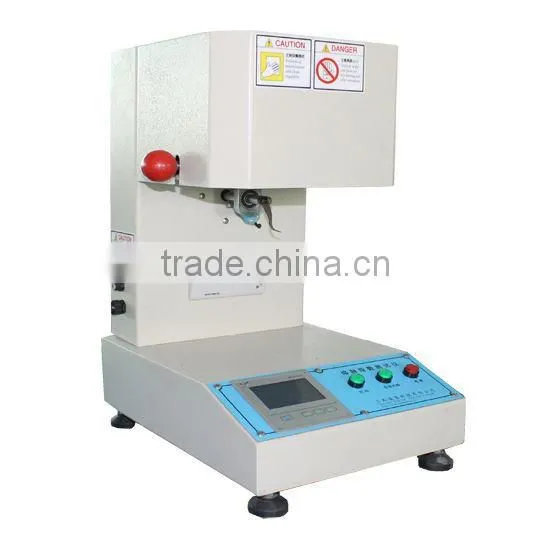

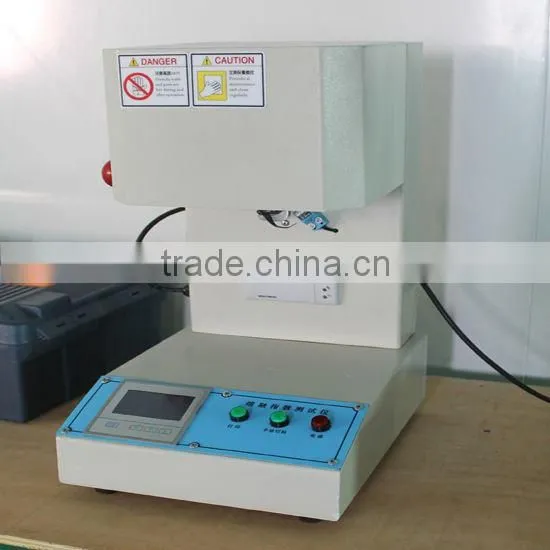

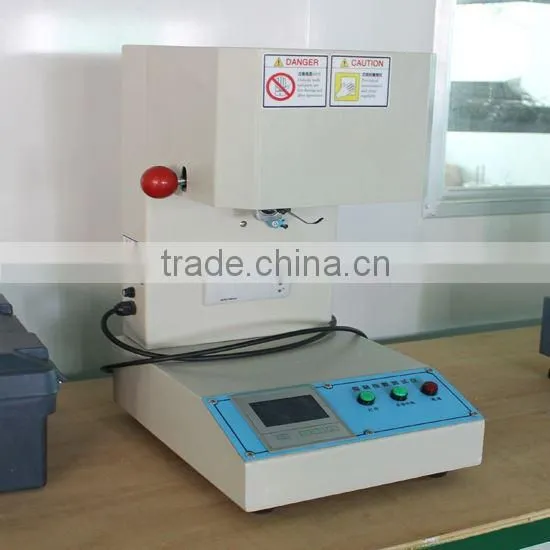

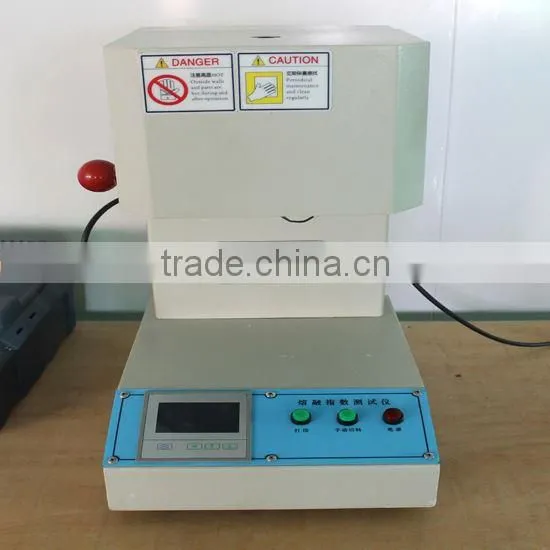

China melt flow index tester

1, Plastic testing Equipment is used to determine the flow rates of thermoplastics by extrusion plastometer and it indicates the regularity of the current rate of the polymer. This product is available in wide range are of excellent quality material, high accuracy and high performance and it needs 230 Volts, 50 Hz to test the product. We manufacture and supply equipment’s that are available at cost effective at reasonable prices.

2, In Melt Flow Index Apparatus the extruder tube is made from carbon steel and is heated by means of a Bend Heater, which surrounds its outer circumference. A PID controller is provided to indicate & control the temperature of the tube. The tube has a hole parallel to its bore for placing the thermocouple junction. The heater logged with mineral wool insulation. The assembly is fixed on a rigid stand. The bottom of the tube is lagged with a 3 mm thick insulation of PTFE to prevent sticking of the extrudate.

3, The jet through with the extruder is pushed out is made from hardened and ground die steel. It is held at the bottom of the extruder tube.The piston made from silver steel relieved at the upper end is provided to push the extrudate out of the jet. The piston moves inside the cavity of tube. A sleeve to provide to guide the relieved portion of the piston. The top of the piston carries a plate- form for keeping the load on. The plate-form is thermally insulated from the load.

Chapter 01, Application of Plastic Melt Flow Index Tester: Adopt new generation artificial intelligence instrument to control the temperature and dibit time relay to control output, the equipment with constant temperature, short period, less overshoot performance.The temperature controller adopt fireproof controlled silicon modules, so that make sure the temperature control accuracy and product stability. In order to convenient for using, this model equipment can achieve time control and manual operation, the cropping method is integrate (cropping interval and cropping time can be set at will).

It is Taiwan type, intelligent, high automaticity, wide application, quick temperature increasing, high precision and steady property, suitable for plastic raw materials, plastic products industries, also can be testing or educational instruments for quality supervision and inspection academie

Chapter 02, Main Configuration List:

4, Test Specimen Limitation:

5, Standard Test meet Condition:

1, Quality assurance: In order to further improve the company’s product and company management level, to provide users with high brand, high quality, high efficiency, world-class high-service environmental testing equipment, the company strictly in accordance with IS09001: 2008 version of the standard quality assurance system operation.

2, Adopt xenon arc lamp which can simulate sunlight spectrum to reproduce destructive light waves exsiting in different environments so as to provide the corresponding environment simulation and acceleration test for scientific research, product development and quality control.

3, Suitable for new materials selecting, improve current materials or evaluate material compositions changing durability tests, simulates the material changing when it expose to sunlight in different environmental conditions.

For above " Melt index apparatus  " items, Please kindly contact with us freely. We are here to support you online any time. If you have any questions, We can have a talk ! Thanks for your inquiry ! We are partners ! Thank you.
