universal tensile test machine direct manufacturer/factory
The tensile test machine is designed for measuring strength in tension,compression,bending, tearing,
peeling,shearing and adhesion testing.It is widely used for metal,geotextile,hard plastic,timber,rubber and many other materials.
we have different tensile test machine for you to choose.OEM service is available
| Model | SM-8000A-5 | SM-8000A-10 | SM-8000A-20 | SM-8000A-30 | SM-8000A-50 | SM-8000A-100 | |
| Capacity (optional) | 50kN | 100kN | 200kN | 300kN | 500kN | 1000kN | |
| Unit | Kgf,lbf,N,kN,kPa,Mpa | ||||||
| Load Resolution | 1/200,000, 1/300,000 or specified by user | ||||||
| Load Range | Rangeless(full scales at the same amplification) | ||||||
| Load accuracy | ±0.5% | ||||||
| Stroke(exclude the grips) | 1100mm | 1280mm | |||||
| Effective width | 570mm | 730mm | |||||
| Test Speed | 0.0005~500mm/min selectable | 0.0005~250mm/min selectable | 0.0005~200mm/min | ||||
| Speed accuracy | ±0.5% | ||||||
| Stroke resolution | 0.00003mm | ||||||
| Sample Rate | 200 times/sec 500 times/sec or specified by user | ||||||
| Communication interface | USB 2.0 | ||||||
| Display method | Desktop computer operating system with dedicated software | ||||||
| Motor | Servo motor | ||||||
| Dimension (W×D×H)mm | Main unit | 1140×700×2100 | 1260×850×2200 | 1260×850×2500 | 1280×900×2750 | 1420×1100×3200 | |
| computer | 1650×650×800 | ||||||
| Weight | Main unit | 1050kg | 1100kg | 1660kg | 1850kg | 2600kg | 3500kg |
| Computer | 100kg | ||||||
| Power | 3Φ220v 50/60Hz, 10A ,380V 50/60Hz, 7.5A | 3Φ220v 50/60Hz, 12.5A, 380V 50/60Hz, 20A | |||||
Please note the above technical parameter is for reference only! For more detailed information, please contact us!

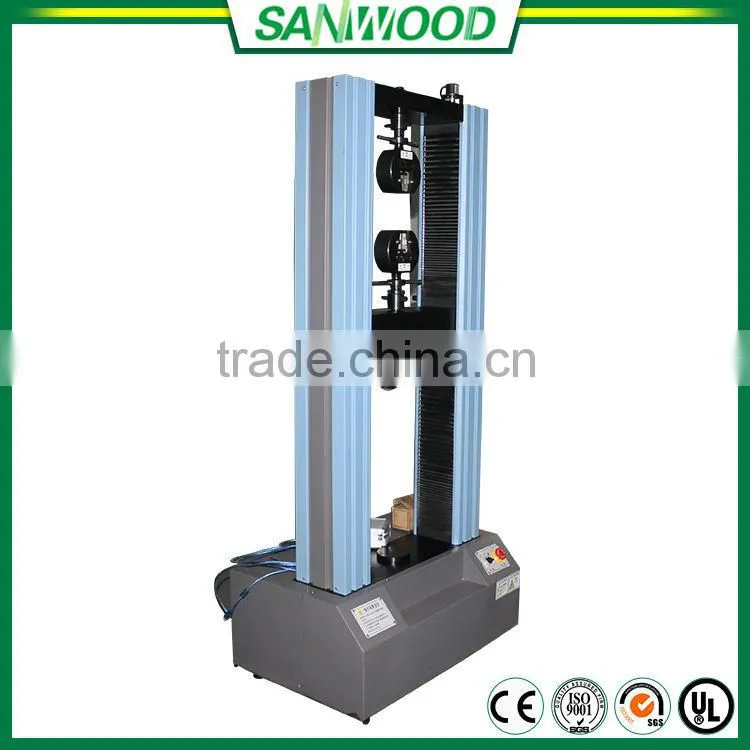

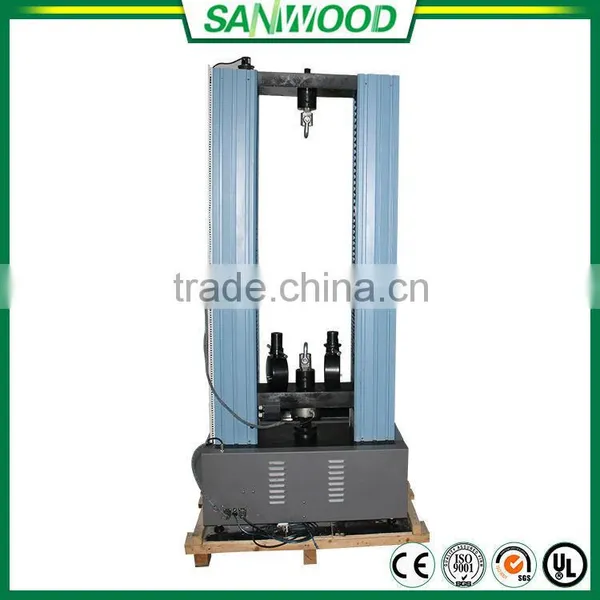

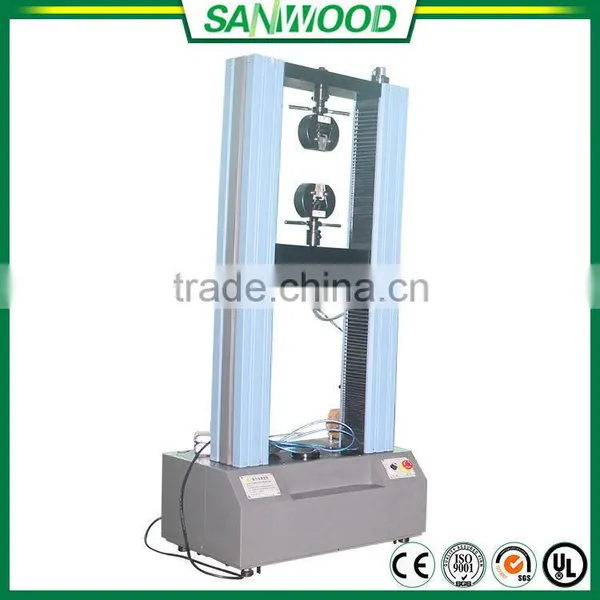

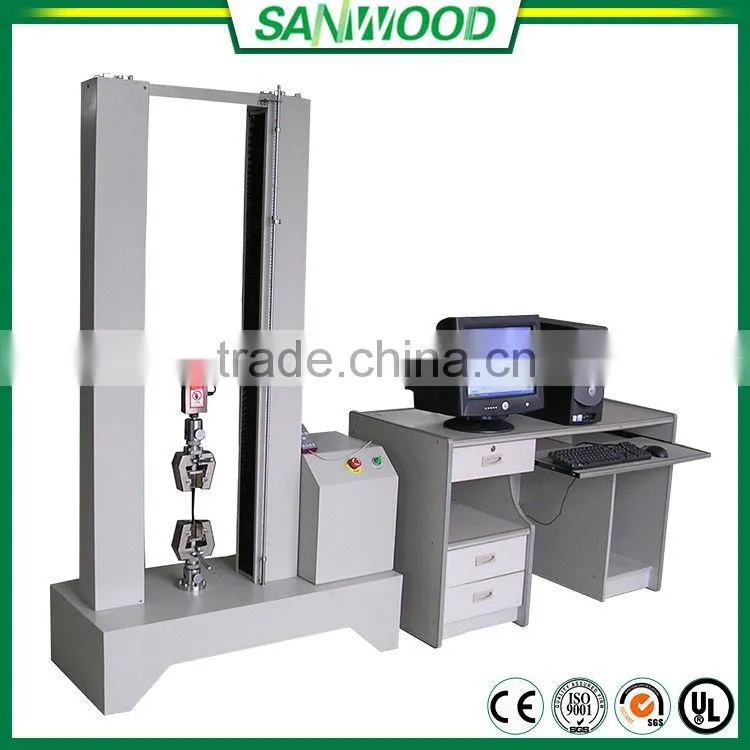

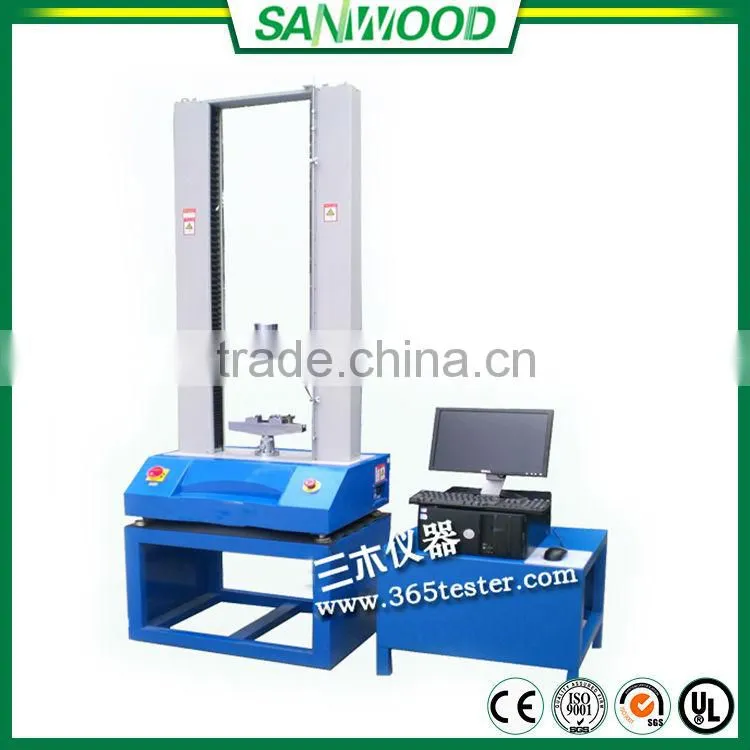

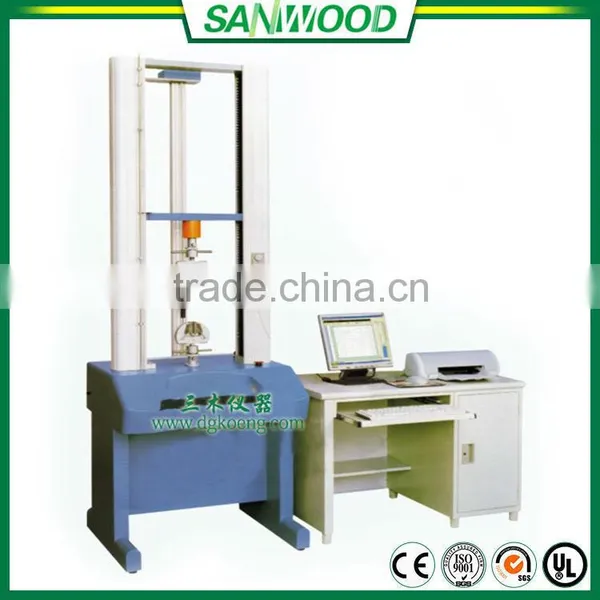

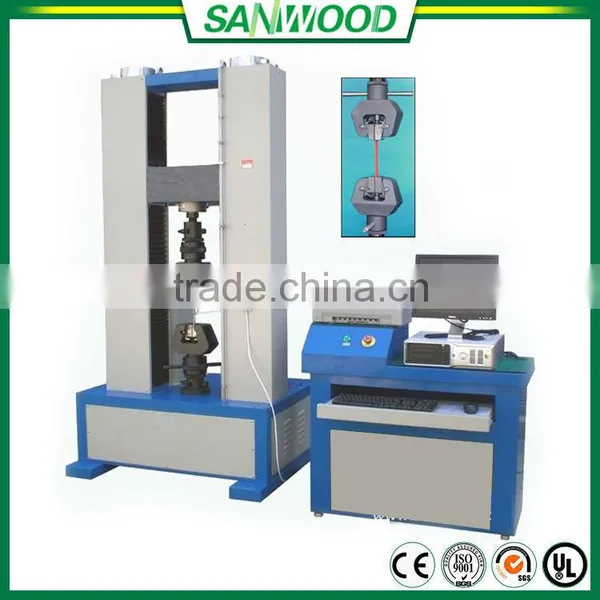

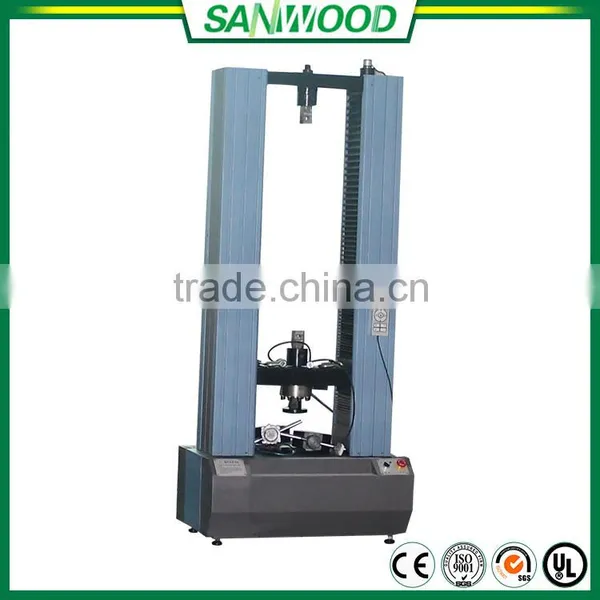

tensile test machine Pictures show
Features
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily.
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
