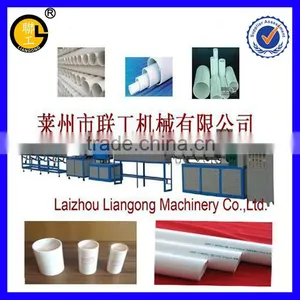

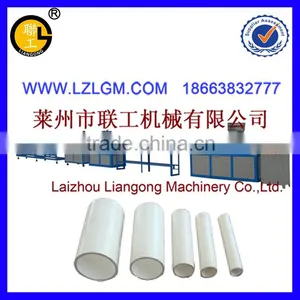

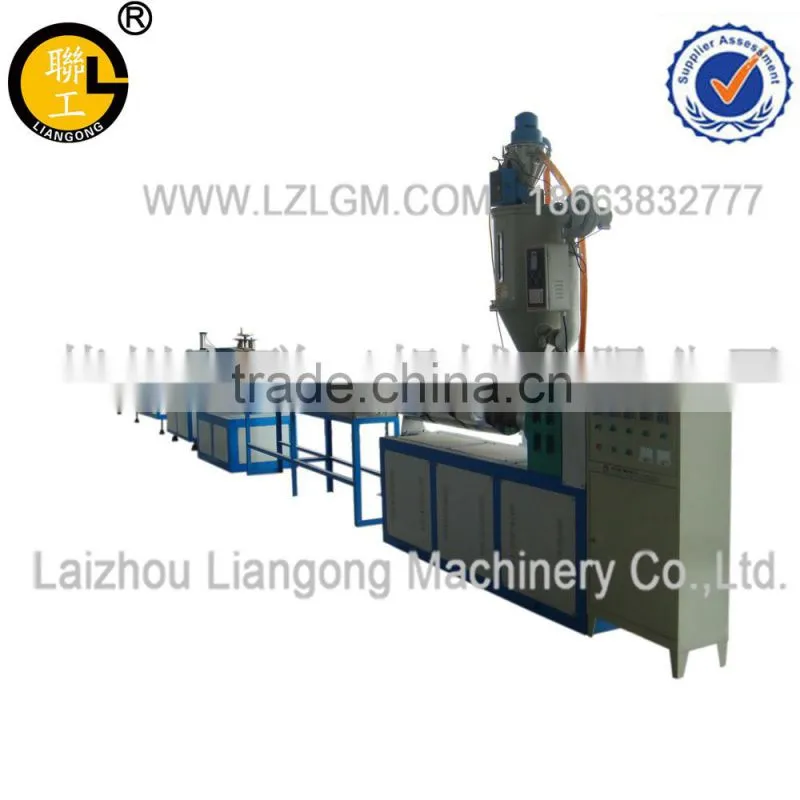

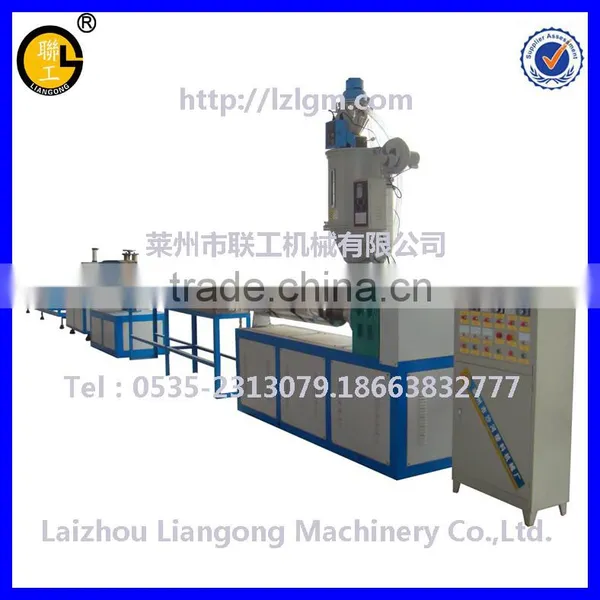

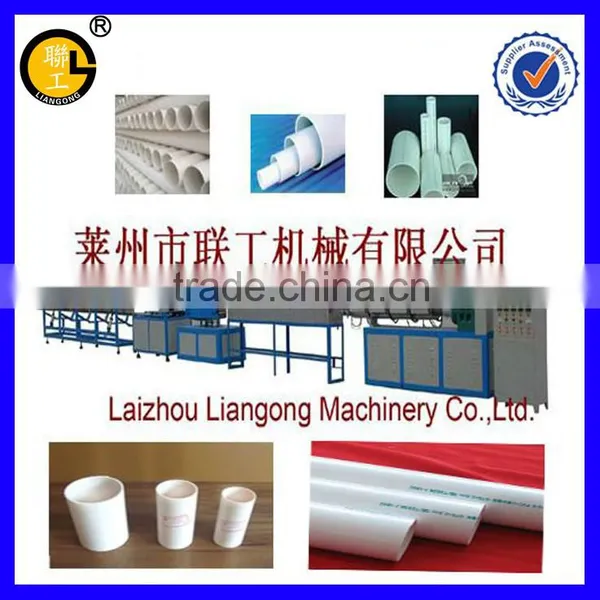

PVC pipe machine:
Pipe making machine;Plastic pipe making machine; PVC pipe machinery;
This machine is to be use for PVC service pipe, drain pipe,also can produce the PE pipe after change the die head etc.
Characteristic
This machine has the high degree automation and long service life,controls the temperate auxiliary engine velocity modulation automatically. It produces product wall thickness adjustable, the inside and outside is bright and clean.Its the ideal service and drain pipe for industry,agriculture and the life uses,and it has the board market prospect.
Technical parameters:
|
LGSG90 extruder
|
Screw diameter |
90 |
||
Screw material |
38CrMoALA |
|||
Mode of the heat-treatment |
Nitriding treatment |
|||
Surface hardness |
HV940~1050 |
|||
Nitriding depth |
0.6~0.7mm |
|||
Production range |
50-110mm |
|||
Parameter of the Cylinder heating and cooling |
Cylinder heating cast aluminum heater 4 stage |
|||
Cooling method |
Gradual air cooling |
|||
Motor power |
22kw |
|||
Velocity modulation method |
Frequency conversion motor |
|||
Cooling stereotypia length |
2000mm |
|||
Vacuum pump motor |
4kw |
|||
|
Tractor
|
Pulling speed |
0.1~3 |
||
Motor power |
4kw |
|||
|
Cutter
|
Cutting scope |
Max.pipe diameter150;Min.pipe diameter 40 |
||
Intensify mode |
Pneumatic intensify |
|||
Mode of cut off |
Fixed-length automatically intensify and cut off |
|||
Unload material frame |
With cutter integration design |
6000mm |
||
length | ||||
|
LGSJ100 blender mixer |
Cubage |
100 |
||
power |
18.5KW |
|||
