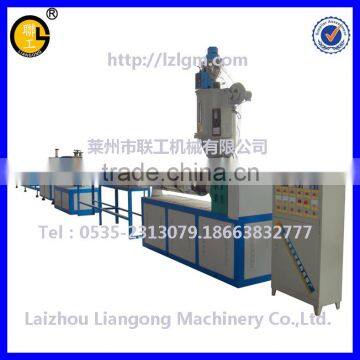

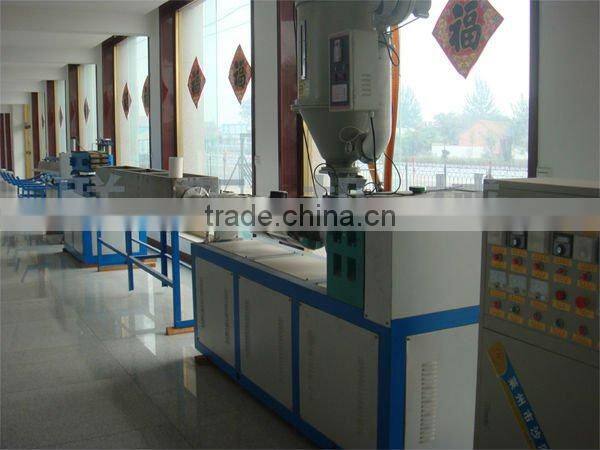

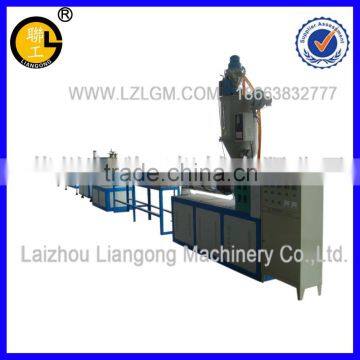

PVC drain pipe production line
Use
This machine is used to produce PVC service pipe, drain pipe, it also can produce the PE pipe only changing the die head etc.
Characteristic
This machine features the high degree automation and long service life, controls the temperature automatically, auxiliary motor control the speed. The pipe thickness produced by this equipment can be adjusted, smooth inside and outside. It’s the ideal service and drain pipe for industry, agriculture and the life use, and it has the board market prospect.
|
LGSG—90 extruder
|
Screw diameter |
90mm |
||
Screw material |
38CrMoALA |
|||
Mode of the heat-treatment |
Nitriding treatment |
|||
Surface hardness |
HV940~1050 |
|||
Nitriding depth |
0.6~0.7mm |
|||
Production range |
50-110mm |
|||

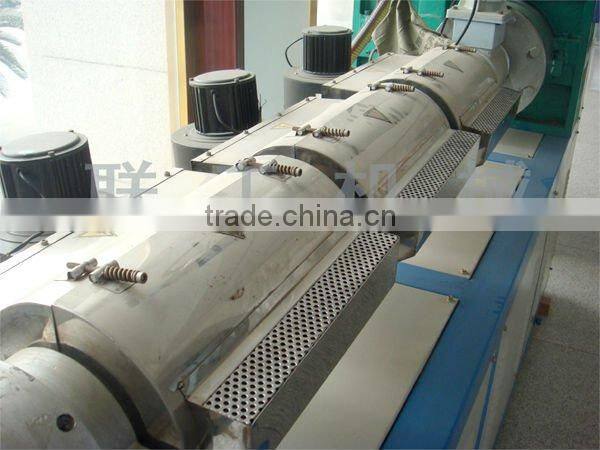

Parameter of the Cylinder heating and cooling |
Cylinder heating cast aluminum heater 4 stage |
|||
Cooling method |
Gradual air cooling |
|||
Motor power |
22kw |
|||
Velocity modulation method |
Frequency conversion motor |
|||

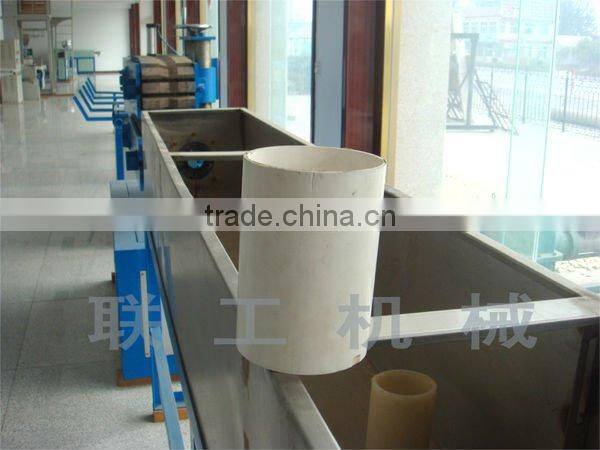

Cooling stereotypia length |
2000mm |
|||
Vacuum pump motor |
4kw |
|||
|

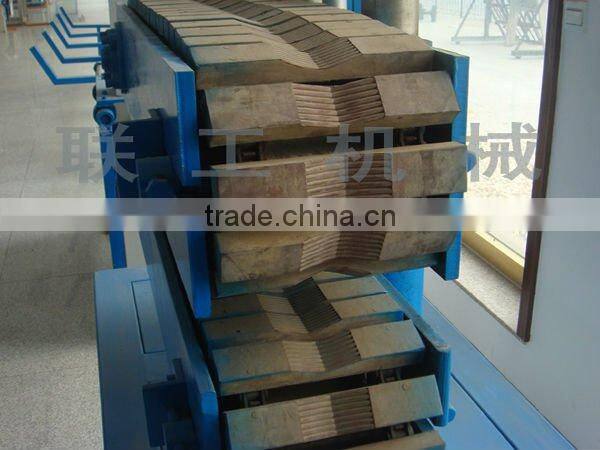

Tractor
|
Pulling speed |
0.1~3m |
||
Motor power |
4kw |
|||
|
Cutter
|
Cutting scope |
Max.pipe diameter150;Min.pipe diameter 40 |
||
Intensify mode |
Pneumatic intensify |
|||
Mode of cut off |
Fixed-length automatically intensify and cut off |
|||
Unload material frame: |
With cutter integration design |
6000mm |
||
length | ||||
LGSJ—100 mixer |
Cubage |
100 |
||
power |
18.5KW |
|||
