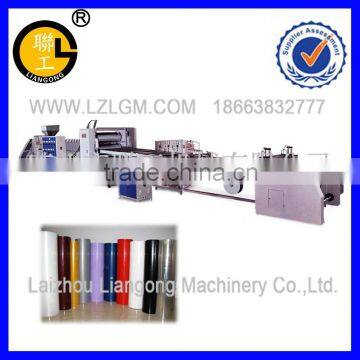

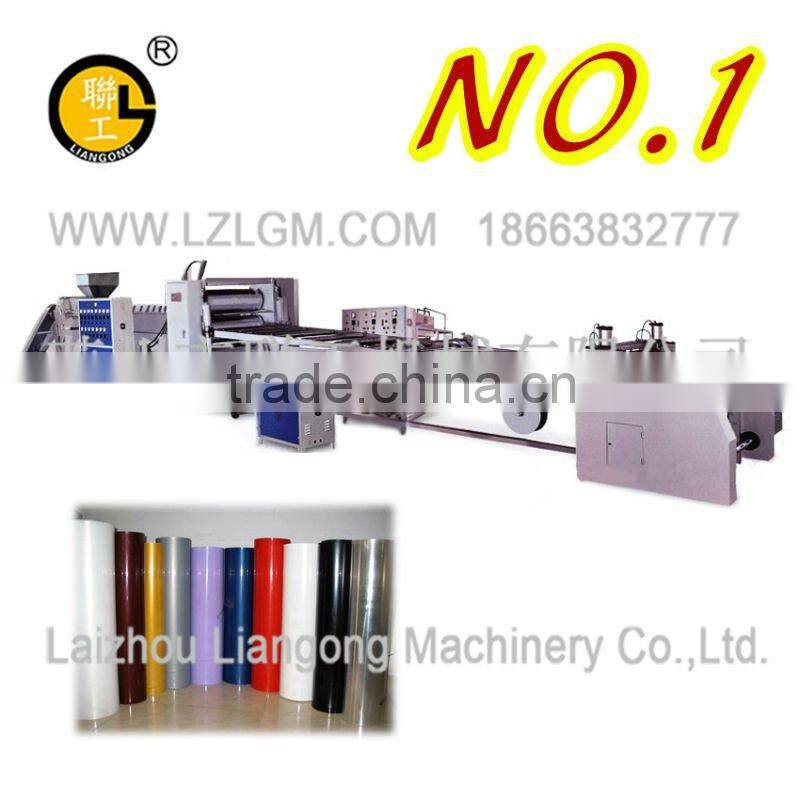

Plastic sheet production line
Use: This unit is suitable for producing PP, PE, HIPS, ABS etc. plastic sheet material. It can be used to produce all kinds of heat-forming products, such as the cold drink cup, fruit jelly cup, yogurt cup, ice cream cup, fast-food box, instant noodles bowl etc. it also can be used to produce the package products for the medicine, light industry, hardware, toy plastic etc. fields.
Characteristic:
- Adopting the oversea advanced technology to make the optimization design with big screw L/D ratio and high production capacity.
- To change the net by full-auto hydraulic changing net, easy and fast.
- The upper and lower roll wheel of 3-roll calendar are adopted the hydraulic moving, the pressure can be adjusted, suitable for the different materials.
- Adopting double station center winding for the winding device, matched the magnetic powder tension control.
Model | UINT | LGSJ/PP-90 | LGSJ/PP-120 | LGSJ/PP-75/100 |
Screw diameter | mm | 90 | 120 | 75/100 |
Screw L/D ratio |
| 32:1 | 32:1 | 32:1 |
Host motor power | kw | 55 | 75 | 45/75 |
Heater capacity | kw | 32 | 40 | 28/38 |
Temperature control | Zone | 5 | 6 | 5/6 |
Extrusion capacity | kg/h | 130-150 | 180-250 | 200-260 |
Die orifice width | mm | 1000/1400 | ||
Production width | mm | 750/1150 | ||
Production thickness | mm | 0.5-1.2 | ||
Heater capacity | kw | 20+15/28+15 | ||
Temperature control | Zone | 5/7 | ||
Wheel width | mm | 1000/1400 | ||
Wheel diameter | mm | 310/370/400 | ||
Transmission motor power | kw | 3/5.5 | ||
Linear speed | m/min | 0.6-15/2-20 | ||
Heater capacity | kw | 18*3/21*3 | ||
Temperature contol | Zone | 3 | ||
Motor power | kw | 2.2*3 | ||
Transmission motor power | kw | 3/3 | ||
Linear speed | m/min | 0.6-15/2-20 | ||
Transmission motor power | kw | 1.5/3 | ||
Production winding diameter | mm | 450/550 | ||
