Help CenterLed Panel Light 600*600mm 36w Vertical Emitting Panel Light
Related Products
-
1.5m 40W LED Panel Light CEUS$ 5 - 40MOQ: 10 Pieces -
1.5M LED Panel LightNegotiableMOQ: 1000 Pieces
-
ETL TUV36W 40W Led Square Panel ,600x600mm Panel Light,620x620mm Panel Light 36w 40w 48wUS$ 15 - 40MOQ: 10 Pieces
-
Factory Side-emitting 36w Led Panel Light / Led 600*600 With TUV CE & ROHSUS$ 10 - 50MOQ: 10 Pieces
-
Professional Manufacturer Vertical Light-emitting Scd<6 600X600mm 36w Led Light Panel With TUV CE & ROHSUS$ 10 - 50MOQ: 10 Pieces
Feature:

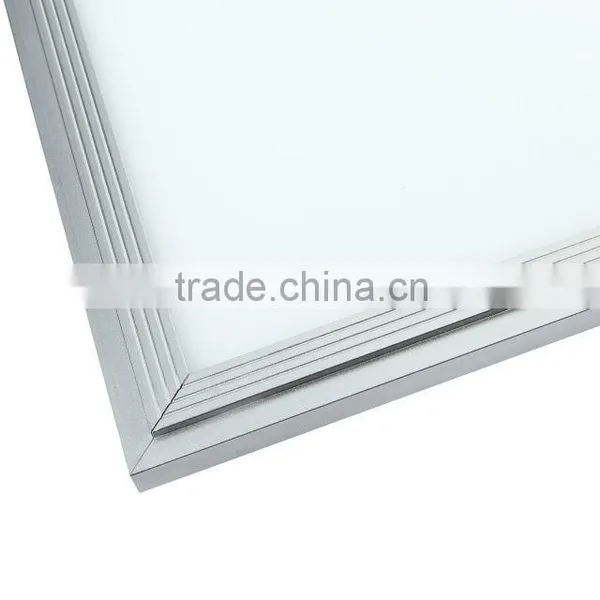

* Main cooling structure using anodized aluminum and high transmittance acrylic light guide combination;
* Ultra-thin design, good lighting effects, but also brings a feeling of beauty;
* Uniform plane glow, illumination uniformity, soft light, comfortable but not bright, also can relieve eye fatigue;
* CRI>80, finished luminous efficiency 75Lm / W;
* LED passed LM80 test, finished SCD <6;
*.Energy saved up to 50%, high intensity
*.3-year life span
* No electric wave
*. No such hazard that mercury or lead enters the environment
*. No RF interference
* CE RoHs certification
| Specification | YL-M6W36B-CE | YL-M6W36N-CE | YL-M6W36W-CE | |||
| Watt(W) | 36 | 36 | 36 | |||
| Lumens(lm) | 2700 | 2800 | 2900 | |||
| Beam Angle(deg) | 120 | 120 | 120 | |||
| CCT(K) | 2700 | 4000 | 6000 | |||
| CRI(Ra) | >80 | >80 | >80 | |||
| Energy Efficiency Classes | A+ | A+ | A+ | |||
| PF | ≥0.95 | ≥0.95 | ≥0.95 | |||
| Efficiency | >75 | >75 | >75 | |||
| Voltage(V) | AC100-240 | AC100-240 | AC100-240 | |||
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | |||
| LifesPan(hrs) | 30000 | 30000 | 30000 | |||
| Working Temperature(°C) | -20~40 | -20~40 | -20~40 | |||
| Storage Temperature(°C) | -20~85 | -20~85 | -20~85 | |||

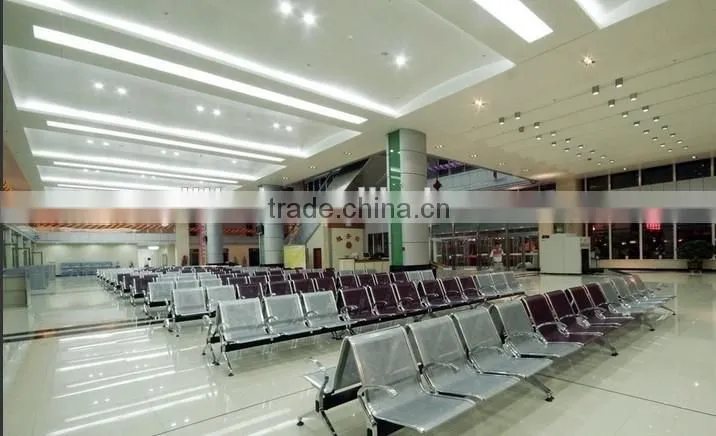

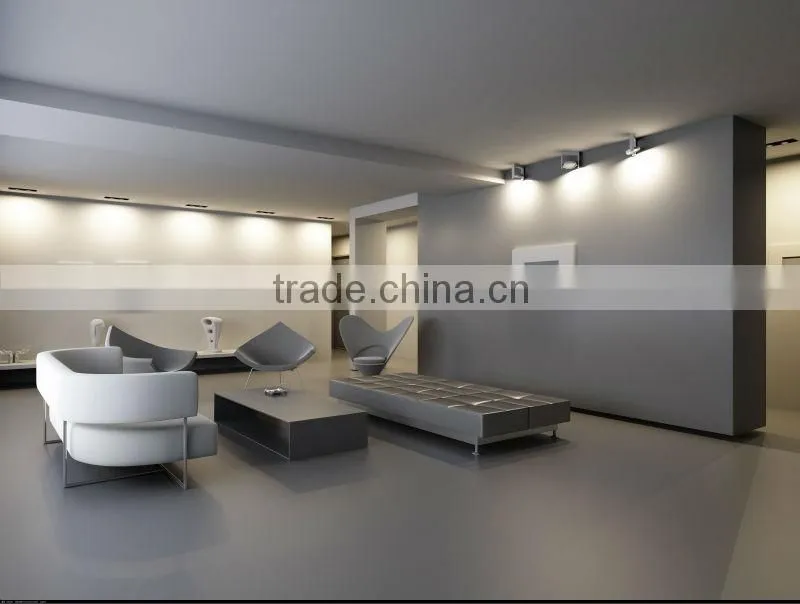

Applications :
* Shop display windows, restaurants, hotels and other indoor decoration lighting; Exhibition hall, art room,
museum, office, reading the local lighting; Night bars, card access, etc. KTV atmosphere lighting; Jewelry, silver jewelry and Fashion lighting;
* Local lighting: Corridor, bathroom, garage, parking-lot lighting, factories, security lighting of residential area,
indicating lighting, etc. Realized the Green Energy-saving environmental protection.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Monthly output over 50, 000PCS.
5. Single package in Gift Boxes
