Excellent Performance! 2014 new Designed

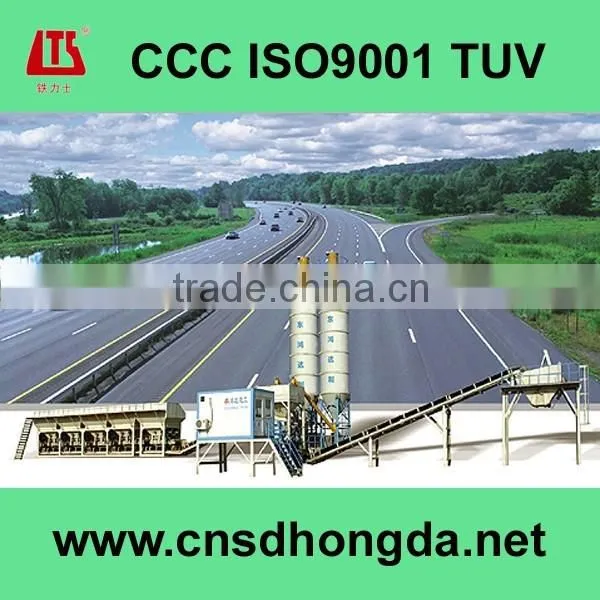

Stabilized Soil Mixing Plant
Tie Li Shi (Iron Giant)Brand, Famous Trademark of China
CCC/ISO9001 Certified
I. Main Technical Parameters of Stabilized Soil Mixing Plant
Model |
WCB500 |
|
Rated Productivity(t/h) |
500 |
|
Sand and Stone Hopper Capacity(m3) |
4×15 |
|
Cement Measuring Hopper Capacity(m3) |
9 |
|
Finished Material Hopper Capacity(m3) |
10 |
|
Batching Precision |
Aggregate |
±3% |
Cement |
±1% |
|
Water |
±1% |
|
Aggregate Size(mm) |
≤60 |
|
Feeding Height(m) |
4.2 |
|
Discharging Height(m) |
3.1 |
|
Gross Power(kw) |
123 |
|
II. Brief Introduction to Stabilized Soil Mixing Plant
The WCB series of modular stabilized-soil mixing plant equipped with the industrial microprogrammed system has various advantages like even mixing, high productivity, multiple gradation, high modularization as well as easy installation, debugging and maintenance. This equipment is widely applicable to the construction of foundations of all kinds of high-grade roads, airports and so on. It main technical features are as follows:
1. The universal modular design makes installation easy and reposition speedy.
2. The double-horizontal-shaft forced mixing produces a strong mixing force and can realize rapid and even mixing.
3. The batch feeder is equipped with press-forming steel plates which are rigid and good-looking.
4. It uses whole sets of high-quality imported electric components made by world-famous suppliers like SCHNEIDER, SIEMENS and OMRON, which are excellent and endurable. There are automatic and manual operating modes for your choice and both are flexible and easy. Double operation of computer and control table are realized with much convenience and reliability. The double operating mode through computer and control board is easy and reliable......
5. Abnormal working conditions and breakdowns can be automatically detected and indicated through words, sound, light and warning, which makes it easy to find and fix them.......
III.Our main products
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...
