Specifications
Slitting line:Newest patent:1.LOSSLESS TENSION device 2.LOSSLESS LEVELING device 3.Highest quality 4.Economical and Practical

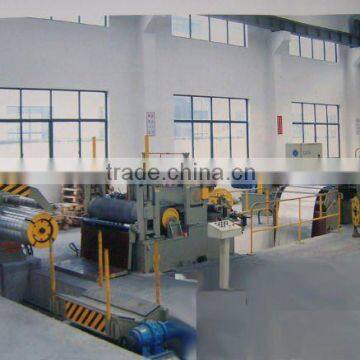

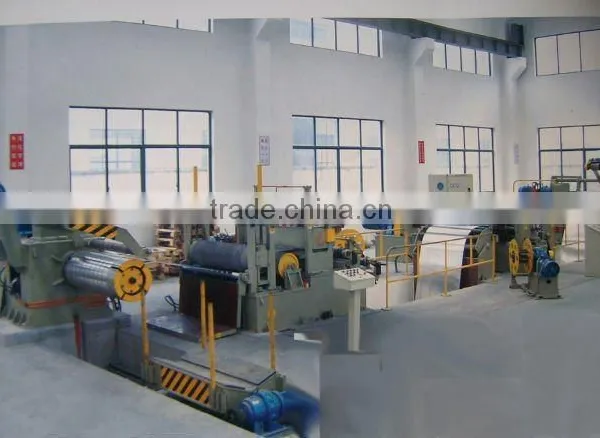

High Speed&Precision Slitting Line
The line is mainly used as precision vertical cutting normal cold/hot rolled plate/coil to strips, with high processing speed and precision.
The main parts of the line : Coil station, Coil car, Decoiler, Pinching machine,Ahead controlling Looper, Side guide, Rotary shear(Two sets, one for standby),Waste coil recoiler device,Back controlling Looper,Separating unit and Tension station, Pinching and Part shearing unit, Recoiler, Stacker and Dump car, Hydraulic system,Pneumatic system,Lubricate system, Electrical system.
Part Hot Sales Models of the line:
|
Number |
Machine Type |
Coil thickness |
Coil width: |
Coil weight |
Max Speed |
Max Power |
Floor Space |
mm |
mm |
T |
m/min |
Kw |
M*M |
||
1 |
YF-1-450 |
0.2-1.0 |
100-450 |
3 |
120 |
70 |
3X10 |
2 |
YF-2-650 |
0.3-2.0 |
100-650 |
5 |
150 |
90 |
5X15 |
3 |
YF-2-800 |
0.3-2.0 |
200-800 |
8 |
150 |
110 |
6X18 |
4 |
YF-2-1300 |
0.3-2.0 |
200-1300 |
10-15 |
200 |
150 |
7X22 |
5 |
YF-2-1600 |
0.3-2.0 |
200-1600 |
10-20 |
200 |
200 |
8X25 |
6 |
YF-3-1300 |
0.5-3.0 |
400-1300 |
10-20 |
150 |
200 |
7X23 |
7 |
YF-3-1600 |
0.5-3.0 |
400-1600 |
15-20 |
150 |
220 |
8X26 |
8 |
YF-4-1600 |
0.8-4.0 |
400-1600 |
15-20 |
120 |
250 |
8X28 |
9 |
YF-6-1600 |
1.0-6.0 |
600-1600 |
15-25 |
100 |
300 |
8X30 |
