Automatic 760 Metal Shutter Door Making Machine

Botou Golden Integrity Roll Forming Machine Co., Ltd.
Automatic 760 Metal Shutter Door Making Machine thumbnail-1
Automatic 760 Metal Shutter Door Making Machine thumbnail-2
Automatic 760 Metal Shutter Door Making Machine photo-1

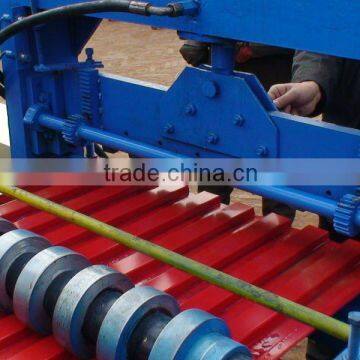

Automatic 760 Metal Shutter Door Making Machine photo-2
US$ 8,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NEW PORT TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use Roof
Production Capacity 5-7m/min,2000pcs/day(8 hours work)
Place of Origin Hebei, China
Brand Name JCX
Model Number 760 shutter door
Power(W) 4kw
Voltage 380V 50HZ 3phase 1 phase voltage 220V
Dimension(L*W*H) 5.5mx1.4mx1.5m
Weight 4T
Certification TUV
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas



Welcome to view JCX 760 shutter door roll forming machine

according to customers requirements ,costom roll forming machine

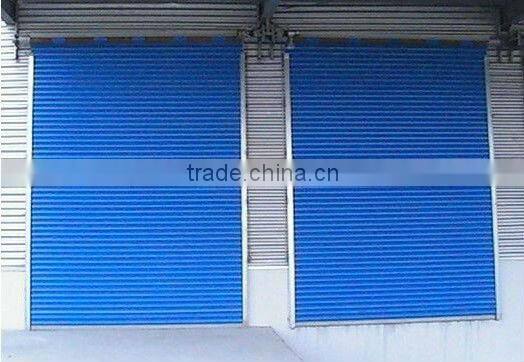

panel picture

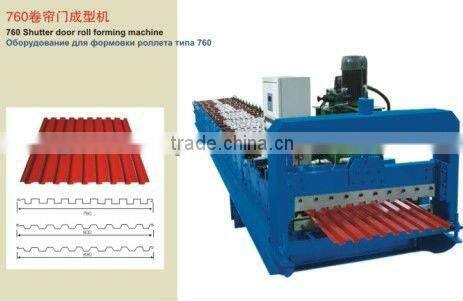

automatic 760 metal shutter door making machine

automatic 760 metal shutter door making machineautomatic 760 metal shutter door making machine

1.Technical parameters:

No.

main parameter of shutter door roll forming machine

1

Suitable to process

Color steel sheet

2

Effective width

760mm

3

Roller steps

12 rows

4

Dimensions

6m*1m*0.9m

(depend on different profile)

5

Main Power

4kw(according customer's requirement)

6

Thickness of the plate

0.6-0.8mm

7

Productivity

5-7m/min

8

Coil width

1000mm

9

Weight

About 4 T

10

Voltage

380V 50Hz 3 phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

15

Wave height

120mm

16

Material of roller

Gcr15 steel



2.Cmponents of line:





•Noted:all the parameters can be changed as the customer's requirement,and different machine.



specialized manufacturer of roll forming machine,any requests just mail me.



Technical specification of every parts

1).decoiler: Optional
<1>. Manual un-coiler



















automatic 760 metal shutter door making machine

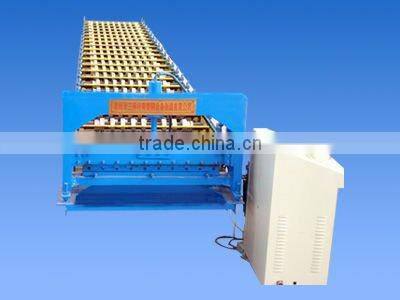

real photo of machine:



Production Description



Decoiler , Main roll forming system, Pressing device, Cutting device, Hydraulic station, PLC control

















Technical process:



 automatic 760 metal shutter door making machineautomatic 760 metal shutter door making machine









Material of main equipment:

Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.

Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.

Cutting blade: Cr12 mould steel with quenched treatment.

They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.

Material of main equipment:

Features of the production line

 1)Professional designing for manufactures roofing & walling



2)Automatically continually manufactures high quality product with PLC.



3)Easy operation : Directly input the data on the touchable screen.



4)Customers decide the profile of products.



5)Saving time and cost owing to high speed running with hydraulic system.



6)One year warranty.





  automatic 760 metal shutter door making machine

EXELLENT QUALITY AND COMPETITIVE PRICE!

CHOOSE US , CHOOSE THE BEST!



Thank you for your time!
