Help CenterAluminium Metal Square Orifice Downspout Roll Forming Machine With 380V 50HZ
Related Products
-
JCX- Downspout Metal Pipe Bending MachineUS$ 4,000 - 5,000MOQ: 1 Set -
JCX--downspout Roll Forming MachineryUS$ 4,000 - 5,000MOQ: 1 Set
-
Hydraulic Control Roof Bending Forming Machine With 8-10m/minUS$ 3,900 - 4,500MOQ: 1 Set
-
4-6meter Bending Forming Machine With 8-10m/minUS$ 3,900 - 4,500MOQ: 1 Set
-
JCX--manufacture Sells CNC Pipe Bending MachineUS$ 3,900 - 4,500MOQ: 1 Set
Specifications
Welcome to review our roll forming machinewe are manufacture
Customers decide
Saving time and cost
complete service
Welcome to view JCX downspout forming machine and bender
according to customers requirements ,costom roll forming machine
panel picture
1.Technical parameters:
Number | Items | UnitType | RF-RS |
1 | Steel Thickness | mm | 0.5-0.8 |
2 | Forming Speed | m/min | 8-10 |
3 | Roller stands | stand | 20 |
4 | Roller Material | 45# steel, coated with chrome | |
5 | Main Motor Power | Kw | 3 |
6 | Hydraulic cutting Power | Kw | 7.5 |
7 | Hydraulic pressure | Mpa | 12 |
8 | Power Supply | 380V, 50HZ,3 phase | |
9 | Tolerance | mm | 1.5 |
10 | Material of cutting | Cr12 | |
11 | Control system | PLC with touch screen | |
12 | Machine net weight | T | 10 |
2.Cmponents of line:
•Noted:all the parameters can be changed as the customer's requirement,and different machine.
specialized manufacturer of roll forming machine,any requests just mail me.
Technical specification of every parts
1).decoiler: Optional
<1>. Manual un-coiler
|

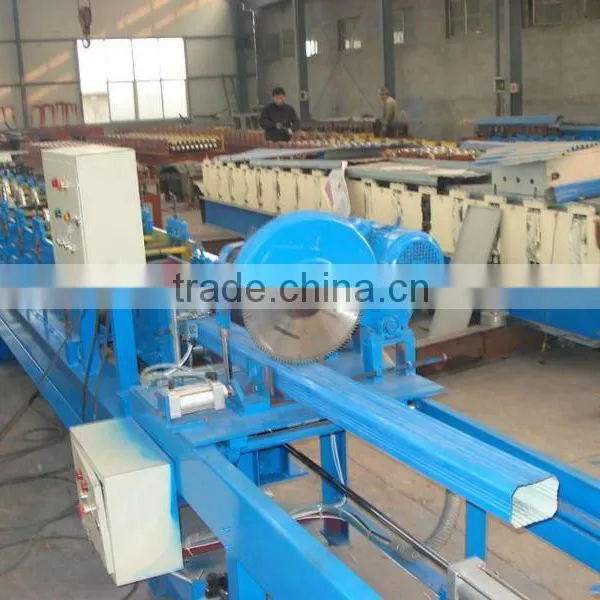

real photo of machine:
| Production Description | |
|
Material of main equipment:
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
Active shaft material: high grade NO.45 carbon wrought steel at diameter 72mm.
Cutting blade: Cr12 mould steel with quenched treatment.
They are widely used as the roof of garden like factory, hotel, exhibition center, villa, civil construction, etc.
Material of main equipment:
Features of the production line
1)Professional designing for manufactures roofing & walling
2)Automatically continually manufactures high quality product with PLC.
3)Easy operation : Directly input the data on the touchable screen.
4)Customers decide the profile of products.
5)Saving time and cost owing to high speed running with hydraulic system.
6)One year warranty.
EXELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
