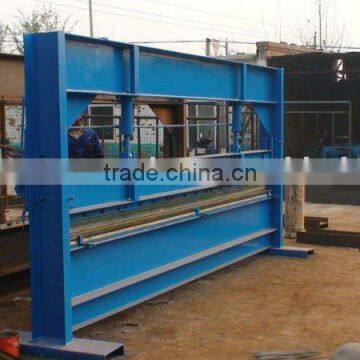

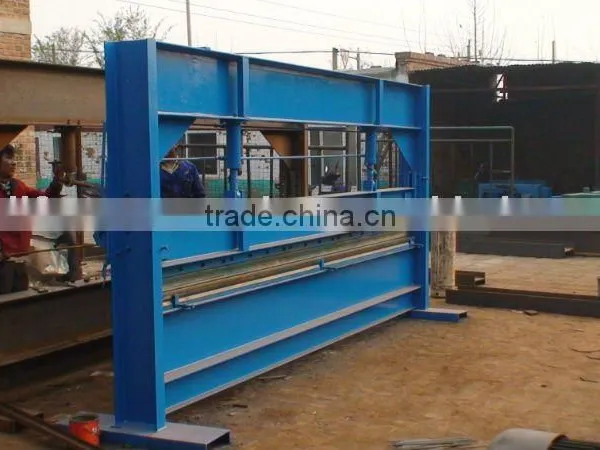

Help CenterHydraulic Bending Machine
Related Products
Specifications
Bending Machine:1. High Quality
2. High Speed
3. Good Service
Bending Machine Usage:
1, first and foremost connected to power, in the control panel to open the key switch, and then pump to start, so you hear the sound of pump rotation. (At this point the machine does not move)
2, stroke adjustment, bending machine use must pay attention to adjust itineraries must be before the bending test. Bending down to the bottom of the plane model must ensure that there is a gap thickness. Otherwise, it will mold and machine damage. The regulation of stroke also have electric and manual adjustment of the stomach quickly adjusted.
3, bending notch choice, usually to choose the width of 8 times the thickness of the notch. 4mm sheet metal, such as bending, must select the 32 or so of the notch.
4, after block are generally expected to adjust quickly to adjust electric and manual fine-tuning, methods, with the shears.
5, depresses the foot pedal start bending, bending machines and shears of different, you can always let go, release the foot bending machine will be stopped, in the foot to continue down.
Bending Machine
Technical Parameter
| max thickness of material | 1.5mm |
| main motor power | 5.5kw |
| main frame | 400# joist steel and slot steel welded |
| material of mold | 70# steel, upper blade heat treatment |
| dimension | 6.7*1.0*2.1m |
| weight | 2T |
| max pressure | 35T |
