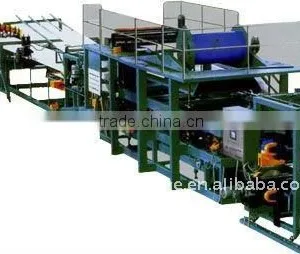

Help CenterColor Steel Sandwich Panel Production Line
Related Products
Specifications
1.ISO9001:20002.be responsible to debug the machine
3.customer's design are warmly welcomed
4.welcome to our factory

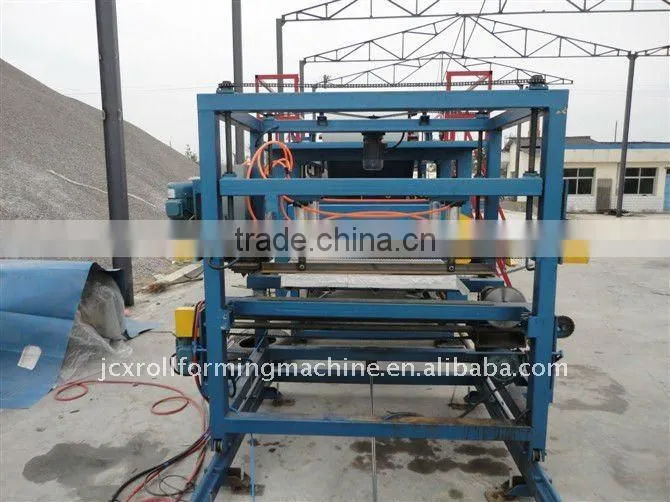

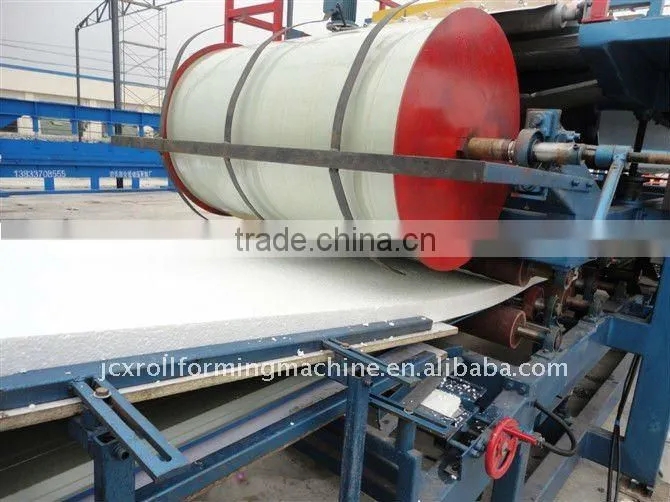

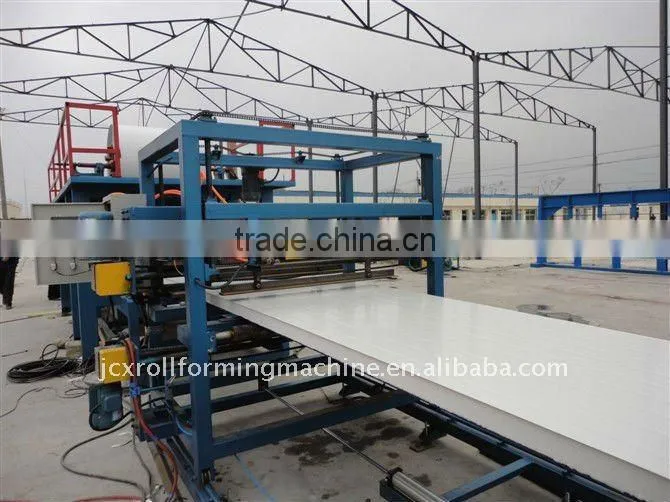

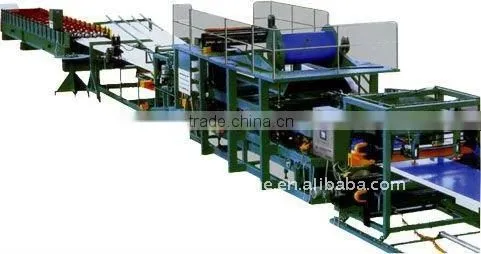

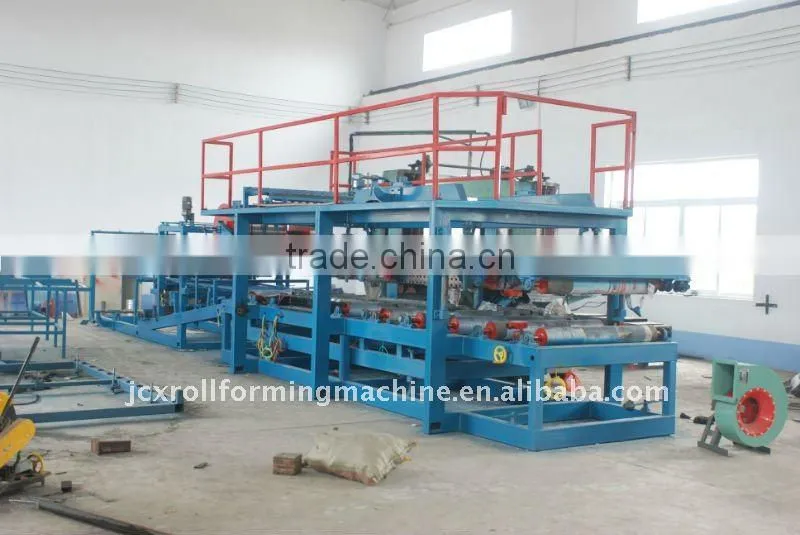

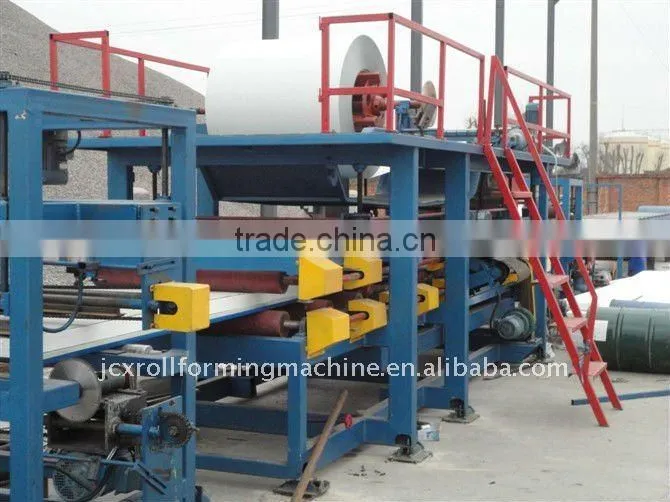

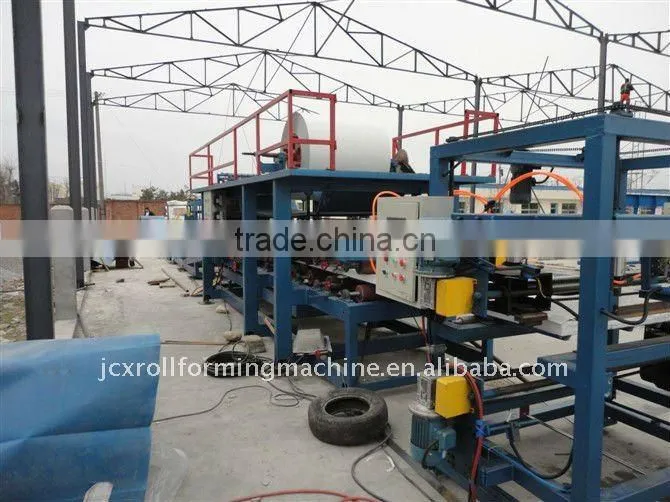

Color steel sandwich panel production line
1.ISO9001:2000
2.be responsible to debug the machine
3.low noise
4.welcome to our factory
Detailed information:
Passive leak: Manual up tight, passive leak
Leak rack load: 3.5--4.5T
Rack: Using 250H steel welding
Forming Machine-driven feeding frame Type: Side roller
Forming Machine type: Panel type chain-drive,
Panel thickness: 13---20mm
Shaft Diameter: 72 mm
Chain: 0.6-inch single-row
Forming Motor Power: 3KW
Speed Reducer Forming Machine speed: 8m/min
Forming Machine Road Number: 11 Roll
Material: High quality 45# steel-forged pieces
Hydraulic station motor: 3kw
Hydraulic Pump Station: Gear pump
Cutting method: Hydraulic shear
Scissors film forming material: Cr12
Shearing blade Heat treatment: HRC58° -60°
Rolling thickness: 0.3 - 0.8 mm
Material Expand Width: 1000mm
Specified Length Accuracy: ± 2mm
The computer use of PLC, TaiwanDelta, computer operation
Suitable to process |
Steel plate |

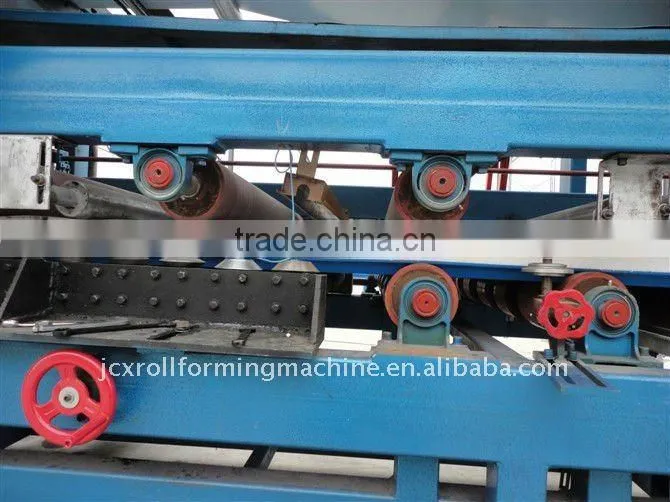

Rollers |
28rows |
Dimensions |
11*1.2*0.9m |
Power |
3kw(2sets) cycloidal needle wheel type |
Diameter of the roller |
¢52mm |
Frame of the machine |
Welded 300H steel side board is made of 16mm steel structure |
Cutting to length |

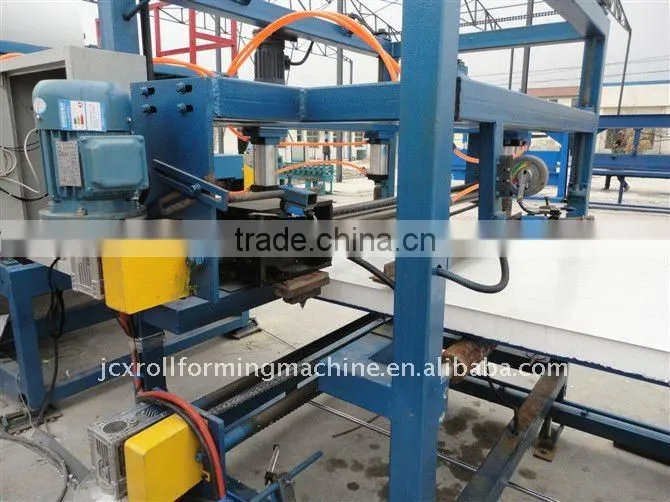

using flying saw cutting |
Decoiler: Expansion type |
max ,loading1-2T |
Voltage |
380V 50Hz |
