Help CenterDownspout Roll Forming Machine,downpipe Roll Forming Machine
Related Products
-
Square Downspout Roll Forming Machine, Pipe Sheet for Roof WaterUS$ 35,000 - 40,000MOQ: 1 Set -
Round Downspout Roll Forming MachineUS$ 35,000 - 40,000MOQ: 1 Set
-
Steel Downspout Pipe Roll Former Machine With Square&aroundUS$ 35,000 - 40,000MOQ: 1 Set
-
Square&around Downspout Steel Pipe Roll FormerUS$ 35,000 - 40,000MOQ: 1 Set
-
Square Downspout Steel Pipe Roll Former/downspout Machine for SaleUS$ 35,000 - 40,000MOQ: 1 Set
pipe welding machine (square tube) /downspout machine for sale

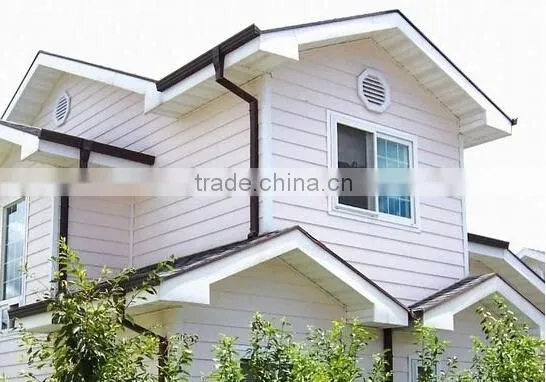

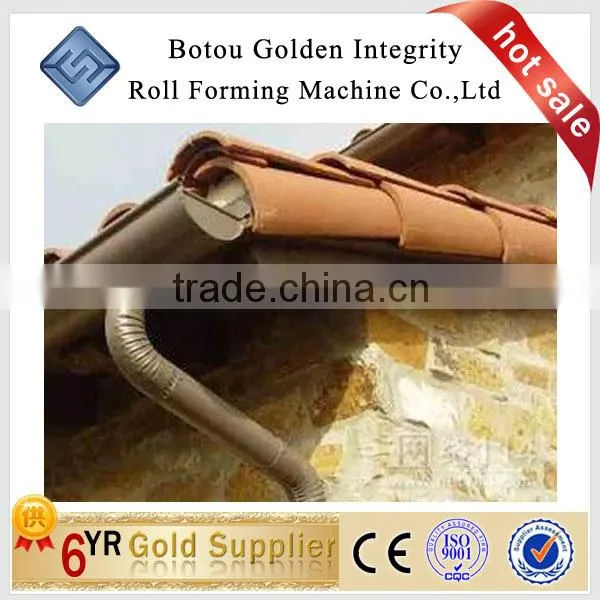

Downspouts are drainage pipes that direct rain water from the roof to the ground.
This is where the rainwater is lead away from the buildings foundation so that no rainwater
is able to pool around the building. Downspouts are most commonly seen attached to the
corners of home or building.
Without perfectly working downspouts, rainwater will fall off the roofs edge and may cause
flooding and damage to the building. Rain water will pass through the cracks in the walls,
windows and into the buildings foundation.
| Technical parameter specification | |
| Processing Material | colored steel plate, galvanized plate, or aluminium plate |
| Thickness of sheet | Processing thickness of plate: 0.4--0.8MM |
| Equipment operation | Automatically |
| Voltage | according to customer's request |
| Productivity | 3-6 m/min |
| Material of Rollers | 45# steel, with heat treatment and surface is being hard chromed |
| Material of shafts | 40Cr |
| Diameter of shafts | 52mm |
| Number of rollers | 23 rollers |
| Dimensions( main structure) | 9.6*1.2*0.9m |
| Total Power | 5.5KW+4KW |
| Working accuracy | 10m±2mm |
| Roller fixer | Guide column or Wall Board |
| Frame | 300H steel |

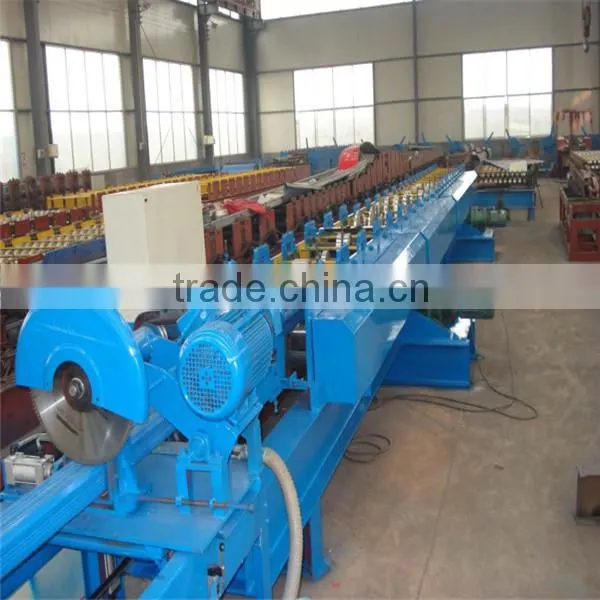

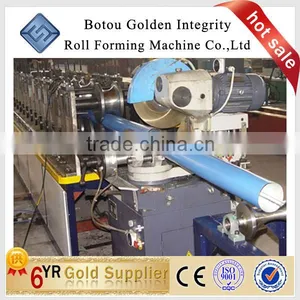

| Cutting System | Flying saw |
| Operating language | Chinese, English, Russian |
| PLC Brand | Delta, Mitsubishi,Siemens,Panasonic |

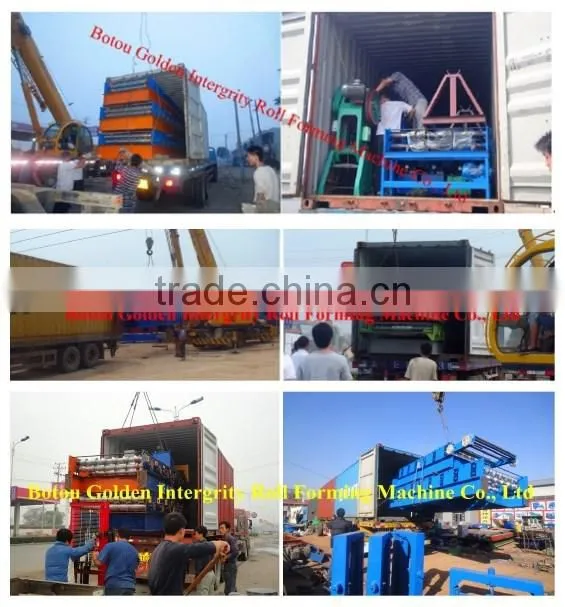

| Packing | in nude, with waterproof cloth and stow-wood The computer controlled cabinet is packed with waterproof cloth and box. |
| Payment | you should pay 30% of the total payment on the day when we sign the order contract, after signing <manufactured products purchase contract>, you send persons to inspect goods, then payoff the whole payment before shipping out the goods. |
| delivery time | 45 Working Days |

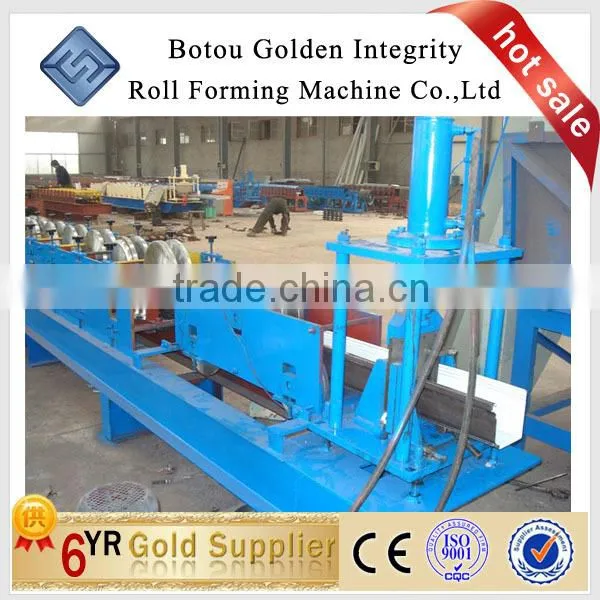

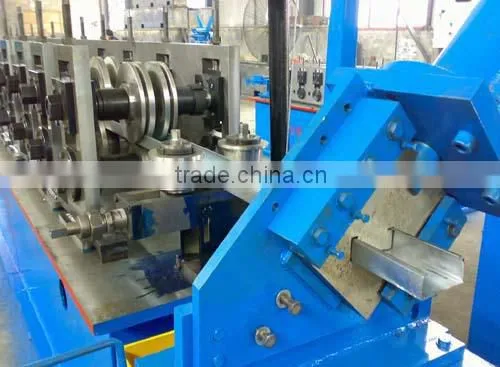

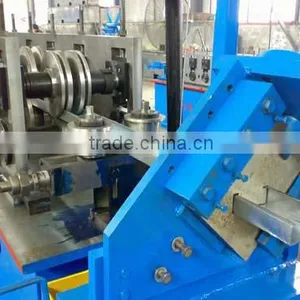

III. Square downspout roll forming machine/downspout machine for sale roller forming&working process
Features of this Square Downspout Making Machine
lower cost
high efficiency
reliable working
low energy consumption

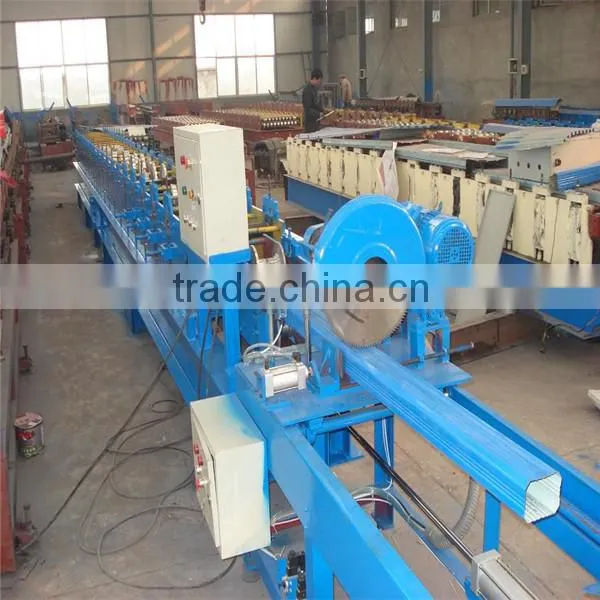

Components of the Square Downspout Rolling Forming Line
steel strip supporting frame
Feeding platform
Automatic shearing system
Hydraulic system Steel strip unfolding system
Computer control system (imported computer)
High-precision automatic counter
Receiving table
Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel sheet
Optional components of the Square Downspout Roller Former Machine
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler
Working space and workman for the equipment:
1. Ground-level land
2. ≥5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $50/days

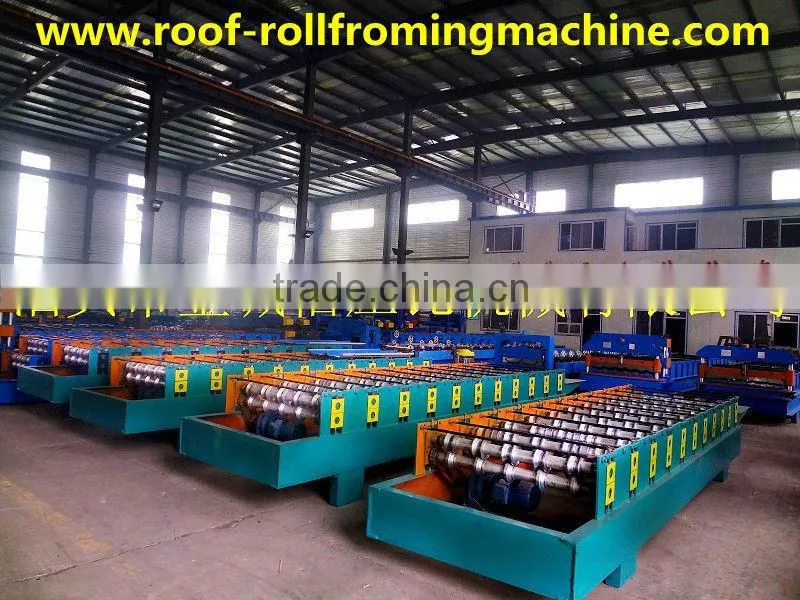

We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard. We are the leading manufacturer of roll forming machine in China. We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
Q: Can you make the machine according to my design or prototype?
Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details For the slitting line and cut-to-length: the material type(HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers(only for slitting line), steel plate required cutting length(only for cut-to-length line) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required(how many roll forming stands required are depended on the profile drawing) For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer`s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In additon, We provide all of our customers with the aftersales-service, its free of charge during the warranty period
