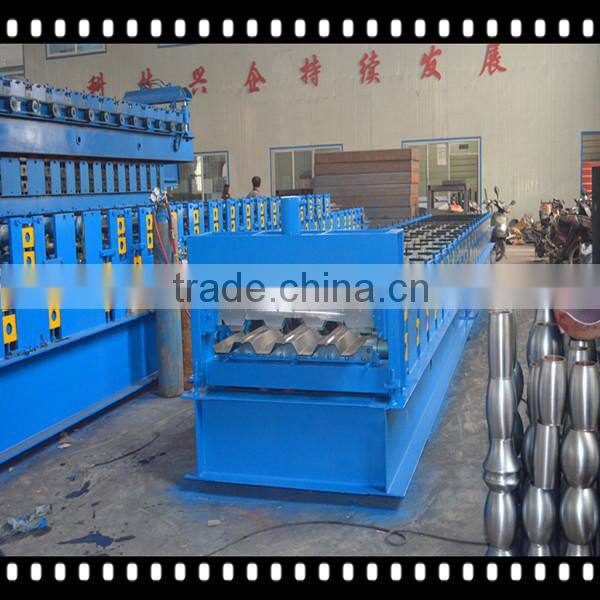

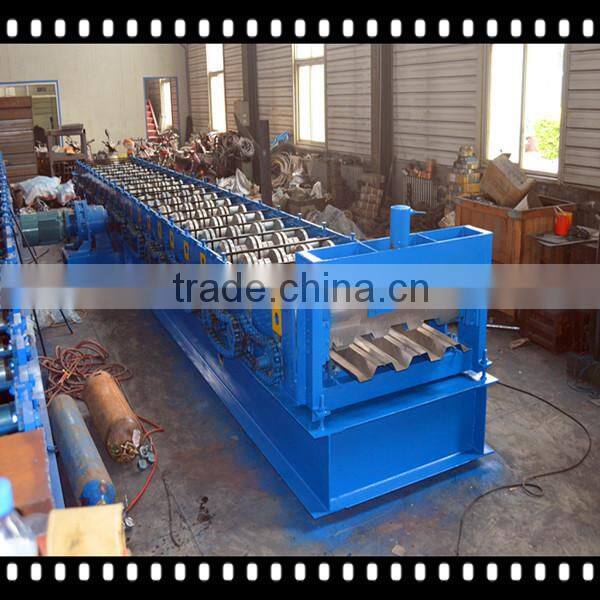

22kw with dot floor deck roll forming machine For The Structural concreteWe provide the technical support for whole life

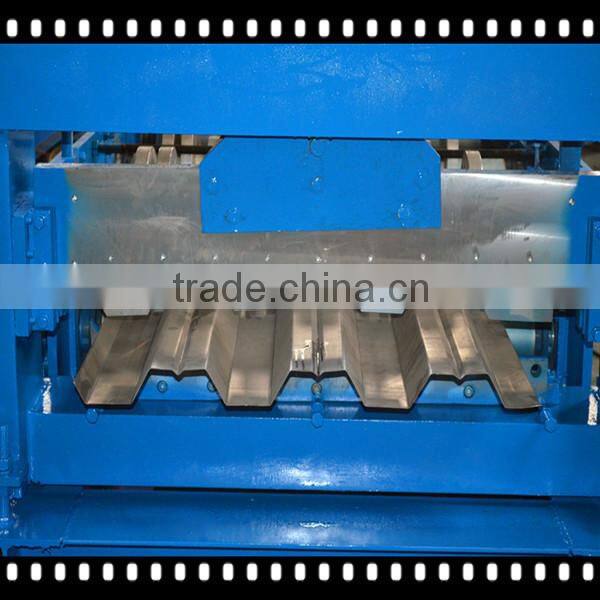

The metal deck formed by this machine has strong strength with high pitches.
It's best to be used as the floor of high buildings, and the cost of such floor is low.

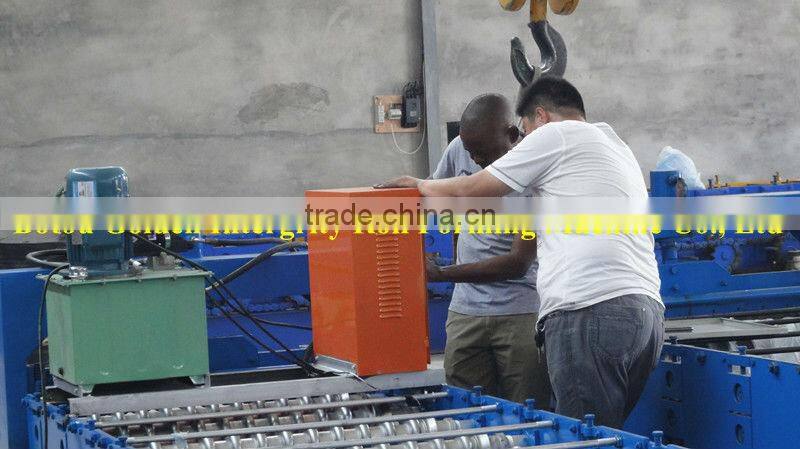

The whole line consists of un-coiler, feeding section, roll forming machine with
protect guard, Hydraulic pressing and post-cut device, PLC control system, etc.
No. |
Item |
Description |
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, Aluminium sheet |
2 |
Working speed |
8-15m/min |
3 |
Main motor power |
22kw with cycloidal reducer |
4 |
Hydraulic station power |
7.5kw |
5 |
Electrical control system |
PLC control system with famous brand |
6 |
Thickness of material |
0.8mm~1.2mm |
7 |
Shaft diameter |
90mm |
8 |
Roller station |
27 stations |
9 |
Material expand axis |
1000mm-1250mm |
10 |
Dimension |
1500x1500x1500mm |
11 |
Driving mode |
Chain |
12 |
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
|
13
|
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
15 |
Working time |
Can be 24 hours |
16 |
Workers |
1-2 only |
Service:
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $50/days
