Home > Products > Color Stone Coated Roof Tile Production Line > colorful stone chip coated steel roof tiles cold roll forming machine

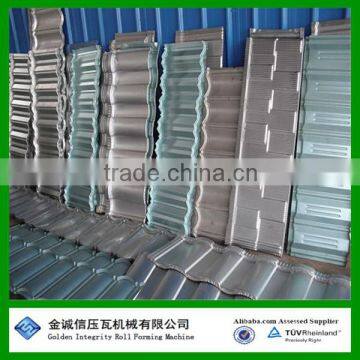

colorful stone chip coated steel roof tiles cold roll forming machine

FOB Price

USD $125,000 - $165,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port XINGANG TIANJIN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Steel	Use	Roof
Production Capacity	6pieces/min	Place of Origin	Hebei, China
Brand Name	JCX	Model Number	stone coated
Power(W)	130kw	Voltage	380V 50hz three-phase
Dimension(LWH)	70m1.4m1.5m	Weight	35t
Certification	TUV	Warranty	3 year, three year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

stone coated roof tile machine made in china,stone coated roll forming machine,roll forming machine

All the informations here including the specifications and the product pictures are based on the machine that we've export lately

Brief introduction

We developed this stone coated roof tile machine based on long time running and improvement. It is high-performance,stable, energy-efficient and easy operation.

It is including five main parts:

1. Auto bottom glue spraying section

2.Auto stone coated section

3 .The first time drying section

4 .Auto face glue spraying section

5. The second time drying section

Description:

No	Item	Description
1	Auto bottom glue spraying section	Appearance size:400010002000 Unit:mm Driving section:3KW Excitation motor or frequency speed regulation (AS per customers’requirements ) Automatic pressure spray tank:1set capability:200kg Range:0.6~1Mpa Automatic glue machine motor: Servo motor, Power:750w, plc Automatic spray gun:4 set(spare parts) Dust collecting fan: 1set power:200w Damp proof lamp:1pc power:100w Conveying device:Chain reciprocating Air compressor:1set power:7.5kw Dust control of axial flow fan:1set power: 200w Agitator: 1set power:1.5kw
2	Auto stone coated section	Appearance size:3500×1000×1500 Unit:mm Framework: Steel welding Conveying device:Chain reciprocating Automatic sand hopper: 1set capability:200kg Bucket lift:1 set Manual sandblast gun:4sets
3	The first time drying section	Appearance size:25000×1000×1200 Unit:mm Framework: Steel welding Frame type thermal insulation wall: 1.2mm cold steel with Rock wool Automatic temperature controller:4set Range:0°~160° Infrared heating tube: 30pcs Power:30kw Conveying device:Chain reciprocating Air cooling device:1 set Power:200w
4	Auto face glue spraying section	Appearance size:3000×1000×2000 Unit:mm Framework: Steel welding Damp proof lamp:1pc Power:100w Automatic pressure spray tank:1set capability:200kg Range:0.6~1Mpa Conveying device:Chain reciprocating Automatic spray gun:4 set(spare parts) Manual patch glue gun:4 set Dust control of axial flow fan:1set power: 200w Automatic glue machine motor: Servo motor, Power:750w
5	The second time drying section	Appearance size:30000×1000×1200 Unit:mm Framework: Steel welding Frame type thermal insulation wall: 1.2mm cold steel with Rock wool Automatic temperature controller:4set Range:0°~160° Infrared heating tube: 30pcs Power:30kw Conveying device:Chain reciprocating Air cooling device:1 set Power:200w

Specifications:

No.	Item	Description
1	Working speed	6-10pcs/min
2	Main power	110kw
3	Electrical control system	PLC control system with famous brand
4	Dimension	65000x1500x1500mm
5	Driving mode	Chain
6	Temperature control	Automatic and constant temperature
7	Working time	Can be 24 hours
8	Workers	7 only
9	Time to dry	After come out from machine can be packed at once
10	Mold	Can be changed

Competitive Advantage:

Save electric, easy operation, stable, less labour, and quick change.

Procurement Aspects

Procurement Aspects	Detailed Rule
Payment Terms	The payment shall be made by L/C or T/T ( 30% down-payment and the balance for 70% shall be paid before container loading at the seller`s factory when the buyer confirms the quality is up to the contracted requirements.
packaging	Suitable for sea transportation.Usually one High precision Grape stake roller formed facility loads in one container.Depends on the machine's size and weight.
Delivery Time	30-65days. Depends on the machine type.
After-sales Service	Warranty: 3 year warranty from date of shipment. Guarantee: 1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge. 2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances - Damage occurs due to a natural disaster - Malfunction occurs due to user error - Malfunction occurs due to modifications - Malfunction occurs due to further movement or shipment after installation 3:Air ticket, transportation cost, hotel, meals and 50$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
Purchasing Process	fistly, send us the product profile. If it needs punching, please also send us the drawing of holes. secondly, communicate with our professional salesperson on the technical details. Thirdly, according to your requirements, our designers match you a right machine, and we will make you a quotation accordingly. Fourthly, if you think it's necessary, you can visit our factory. In this way, you can see the machine at sght and communicate with our engineers. fifthly, if you are satisfied with our machine and the price, then we will make the contract with each other officially. sixthly, according to the contract, you pay the money and we ship the machine to you.

If you are tired of those Chinese bad machines, and want to buy high quality machines in China, Just stop searching!we are your best choice!We offer you quality machine with good price!
