Effecient C/Z Purlin Roll Forming Machine (integrated Machine)

Botou Golden Integrity Roll Forming Machine Co., Ltd.
Effecient C/Z Purlin Roll Forming Machine (integrated Machine) thumbnail-1
Effecient C/Z Purlin Roll Forming Machine (integrated Machine) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Tile Forming Machine
Tile Type:
Steel
Use:
Other, construction
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tile Forming Machine
Tile Type Steel
Use Other, construction
Place of Origin Hebei, China
Brand Name JCX
Model Number depending on requirement

Specifications

1.exellent qaulity
2.precise control
3.high effecient
4.stable property
5.nice surface

 Effecient C/Z purlin roll forming machine (integrated machine)

    GOLDEN INTEGRITY ROLL FORMING  MACHINE CO.,Ltd.



Effecient C/Z purlin roll forming machine (integrated machine)



    C PURLIN MACHINE

 Main parameter of ridge tile forming machine :



Suitable material

color steel sheet

Thickness of raw material

0.5—0.6mm

Yield strength of material

235Mpa

Working Speed

about 2000-3000mm/min

Step distance

adjustable according to requirement (>=250mm)

Power Requirement

Main motor power:

5.5Kw (Depend on final design)

Hydraulic station power:

5.5Kw (Depend on final design)

Uncoiler's loading capacity

Max. Capacity: 5000kgs (can be increased to be 10T)

Controlling system

Mitsubishi PLC & converter

Machine's size

about 18m×1.5m× 1.4m (Depend on final design)





Components of line:



NO

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main machine for roll forming

set

1

3

PLC Control system

set

1

4

Hydraulic system

set

1

5

Post cut

set

1

6

Stackinig

set

1

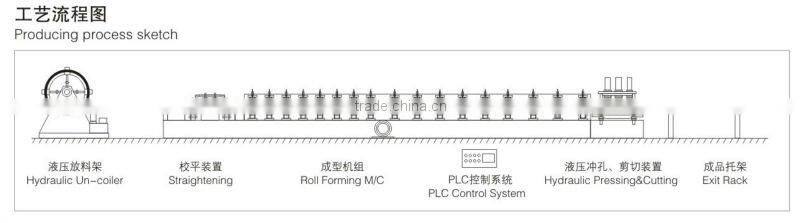

Flow chart:

Effecient C/Z purlin roll forming machine (integrated machine)

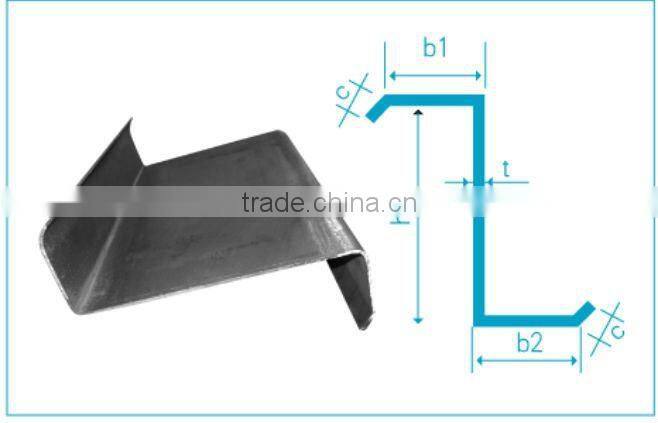

Different profiles:

Effecient C/Z purlin roll forming machine (integrated machine)

Effecient C/Z purlin roll forming machine (integrated machine)

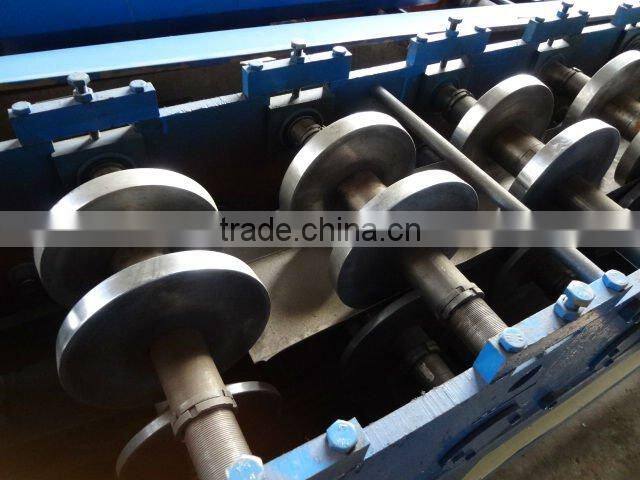

Live shooting:

Effecient C/Z purlin roll forming machine (integrated machine)





Products:

Effecient C/Z purlin roll forming machine (integrated machine)

Effecient C/Z purlin roll forming machine (integrated machine)











Other information:

MOQ1 SET
SHIPMENTS15 DAYS AFTER RECEIVING ANVANCED PAYMENT
TYPE OF PAYMENTT/T OR L/C



 Effecient C/Z purlin roll forming machine (integrated machine)



 EXELLENT QUALITY AND COMPTITIVE PRICE!



CHOOSE  US , CHOOSE THE BEST!
