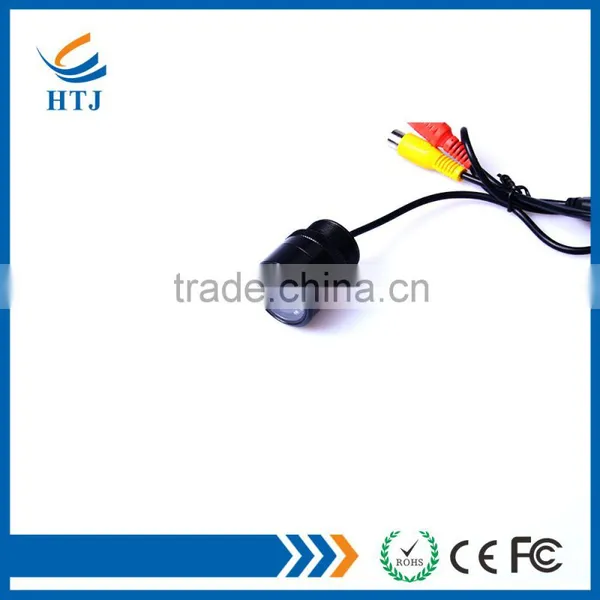

1/4 color CMOS sensor wide view angle backup camera for car
* Mirror view and normal view switchable
* Parking guide lines (Optional)
* Adopt digital high-resolution imaging process: 480TVL
* Extra-low illumination of 0.2 Lux for clear night vision

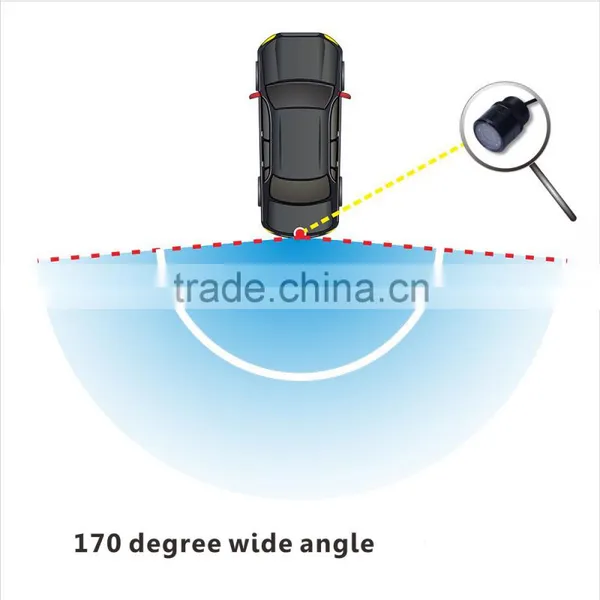

* Viewing angle: 170 ° (Diagonal)
* Connection: 4 PIN DIN or RCA cable (Optional)
* Flush mount installation
backup camera for car
TV system: PAL/NTSC |
Sensing area: 4.9mm*3.7mm |
Horizontal Resolution: 480 TVL |
Effective Pixels: PAL/628(H)*586(V) NTSC/510(H) * 496(V) |
Minimum Illumination: 0.2Lux |
Lens: 135 degree(Horizontal) |
View Angle: 170 degree(Diagonal) |
Sync. System: Internal |
S/N Ratio: >48dB |
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds |
Video Output: 1.0Vpp, 75Ohm |
White Balance: Auto |
Power: DC 12V |
Current Consumption: 110mA |
Operating Temperature: -20 ~ +80°C, 95% RH maximum |
Storage Temperature: -30~ +80°C, 95% RH maximum |
Waterproof: IP67 |
Remark:
1. Plastic/white/brown/color box is optional
2. Connection: RCA or 4 PIN DIN is optional
Accessories:
1 x Camera
1 x video cable
1 x DC power cable
1 x 3M glue
1 x Manual
1 x Color box
Color box dimension: 16*10.5*4.8(CM)
Outer carton dimension: 56*28*36(CM)
50 pieces in a carton
Package: HTJ color box + outer carton,OEM/ODM service is available in HTJ
Shipment: Air Freight, Sea Transportation, DHL, FedEx, UPS, EMS, TNT( It’s up to you).
Shenzhen Hao Tian Jun Electronics Technology Co. Ltd (HTJ) was established in 2005.
Our factory is located in Dongguan,Guangdong, China.
Our main products are auto electronics, such as car DVRs, reversing systems, 360 degree panoramic driving and parking assistant systems, car cameras, etc.
We own two main brands "Car 360" and "Car Vision", mainly engaged in a 360 degree panoramic monitoring systems, car DVRs, and car special cameras , which have been widely recognized by customers all over the world.
As an integrated high-tech manufacturer:
1) We focus on R&D, Marketing, Production and Technical Services.
2) We apply TMS to extend and upgrade the OEM /ODM traditional model.
3) We strive to provide high-tech and high-quality products, and excellent service to meet customer demand.
4) We determine to become one of the world's most competitive automotive auto electronics product manufacturer.
With good corporate reputation, outstanding technical talent, humanized management system and mature market channels, we sincerely hope that we can work together for a brighter future.
Q1: What is your warranty terms?
A1: 12 months is guaranteed from the production date.
Q2: What is your MOQ?
A2: Depends on model you choose, small and trial order acceptable.
Q3: What is your lead time?
A3: 3-5 working days upon receipt of your payment.
Q4: What is your payment terms?
A4: T/T(Bank transfer), PayPal, Western Union, Money Gram.
Q5: Do you accept OEM or ODM service?
A5: OEM & ODM are welcomed.
Q6: Any certificate for your products?
A6: Yes, we have CE, FCC, RoHS certificate for your reference.
